Basic Info.
Model NO.
solar cable
Material Shape
Round Wire
Range of Application
Electric Appliance Internal Wiring
Certification
ISO9001, CE, RoHS
Brand
Hanker
Conductor
Copper
Transport Package
100m/Roll
Specification
1.5-16mm2
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
600000m/Month
Product Description

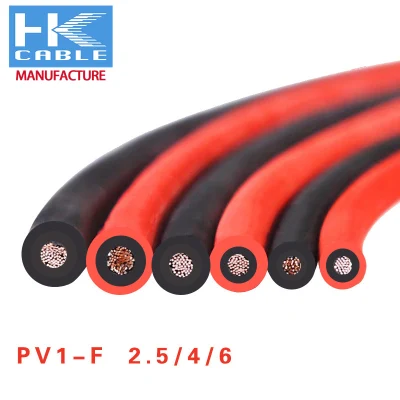

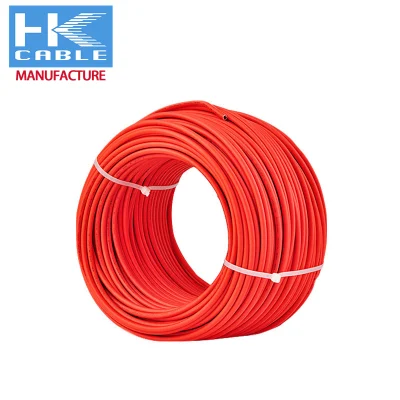

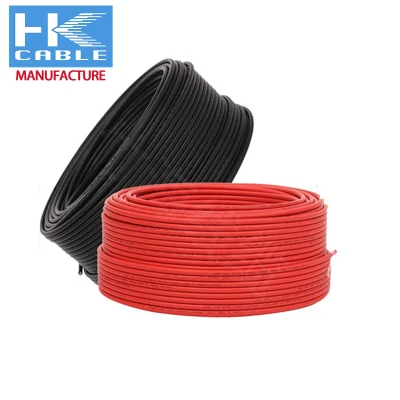

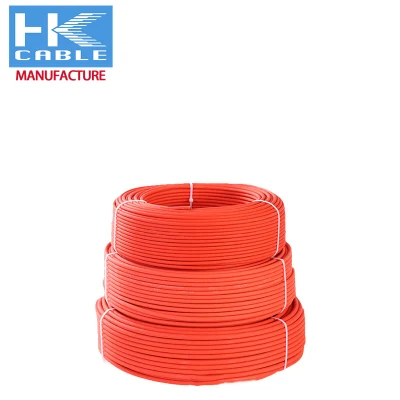

Wholesale universal Solar Cables 4mm 6mm Extension Power System Tinned Copper CE Certification Wire Roll
Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station
Construction
Conductor:Tinned copper, according to the VDE0295/IEC 60228,Class 5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer sheath:Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's request
| Construstion | Conductor Construction | Conductor | Outer | Resistance Max. | Current Carring Capacity |
| n×mm² | n/m | mm | mm | Ω/Km | A |
| 1×1.5 | 30/0.25±0.008 | 1.54 | 4.80 | 13.70 | 30 |
| 1×2.5 | 49/0.25±0.008 | 1.98 | 5.40 | 8.21 | 41 |
| 1×4.0 | 56/0.30±0.008 | 2.53 | 6.10 | 5.09 | 55 |
| 1×6.0 | 84/0.30±0.008 | 3.10 | 7.10 | 3.39 | 70 |
| 1×10.0 | 80/0.40±0.008 | 4.34 | 9.00 | 1.95 | 98 |
| 1×16.0 | 128/0.40±0.008 | 5.46 | 10.20 | 1.24 | 132 |
| 1×25.0 | 361/0.30±0.008 | 6.95 | 12.00 | 0.795 | 176 |
| 1×35.0 | 525/0.30±0.008 | 8.74 | 13.80 | 0.565 | 218 |
| 1×50.0 | 720/0.30±0.008 | 9.20 | 14.80 | 0.393 | 280 |
| 1×70.0 | 988/0.30±0.008 | 11.00 | 16.90 | 0.277 | 350 |
| 1×95.0 | 1349/0.30±0.008 | 12.50 | 18.70 | 0.21 | 410 |
| 1×120.0 | 1691/0.30±0.008 | 14.20 | 20.70 | 0.164 | 480 |
Photovoltaic Power Cable,TUV Two Core PV Cable
Application
Double insulation, electron-beam cross-linked cables for photovoltaic power station
Construction
Conductor:Tinned copper,according to the VDE0295/IEC 60228,Class 5
Insulation:Polyolefin copolymer electron-beam cross-linked
Outer sheath:Polyolefin copolymer electron-beam cross-linked
Sheath color: Black/Red/Blue or as per customer's request
| Construstion | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer | Resistance Max. | Current Carring Capacity | Approx Weight |
| n×mm² | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2×1.5 | 30/0.25±0.008 | 0.7 | 0.8 | 4.8×10.1 | 13.7 | 30 | 72 |
| 2×2.5 | 49/0.25±0.008 | 0.7 | 0.8 | 5.4×11.8 | 8.21 | 41 | 94 |
| 2×4.0 | 56/0.30±0.008 | 0.7 | 0.8 | 6.0×12.8 | 5.09 | 55 | 142 |
| 2×6.0 | 84/0.30±0.008 | 0.8 | 0.9 | 7.1×15.5 | 3.39 | 70 | 200 |
| 2×10.0 | 80/0.40±0.008 | 0.9 | 1.1 | 9.0×19.2 | 1.95 | 98 | 290 |
| 2×16.0 | 128/0.40±0.008 | 1.1 | 1.1 | 10.2×21.7 | 1.24 | 132 | 430 |
Founded in Feb 2010, Hai Yan Hanker Electronic Co.Ltd; is a high-tech enterprise with all vitality, potential and comprehensive strength.
The company is located in Wu Yuan Industrial Park of Hai Yan District in Jia Xing City and the location is very convenient with good
transportation links to the neighboring Shanghai and Ningbo. On the basis of technology development, the company has taken in a
group of experienced personnels who are talented in senior management, marketing and skills of producing. In the company, great
attention is paid to basic management, stable quality, continuously improving pre-sale service, sale and after-sale services, and enhancing
the market competitiveness of our products. Main products of our company: Alarm security cable, Telephone cable, Battery cable, Audio
speaker cable, Amplifier installation kit, Microphone cable, Power cable, Electronic cable, Accessory, etc. Since its foundation, the company
keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers." We are doing everything to offer
our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
1. Q; Are you manufacture or trading company?
A: We are manufacture has more than 10 years manufacturing experiences.
2.Q: Do you acceptt OEM order?
A: Yes
3.Q: Where is your factory located ?
A: we located in Haiyan, Jiaxing, Zhejiang, next to shanghai.
4 : Q: Can you offer sampple?
A: Yes, we can offer sample, whether free depend on your detail requirement.
5: Q: What is your payment term?
A: We have several payment terms for you,T/T,Western Union,Paypal,L/C,etc.
6: Q:What about the lead time for mass production?
A:20ft contaniner production tme usually is about 10-15day
