Product Description
Application:
It is used for power devices, household appliances, small electric tools, instruments and apparatus and power lighting circuits with AC rated voltage UO/U of 450/750V and below.

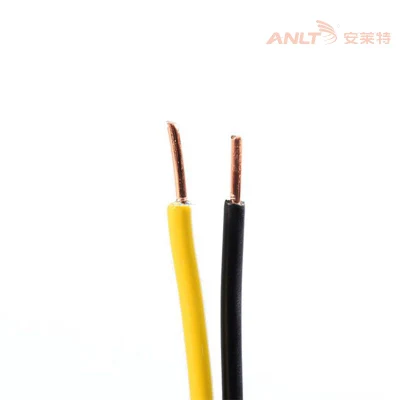

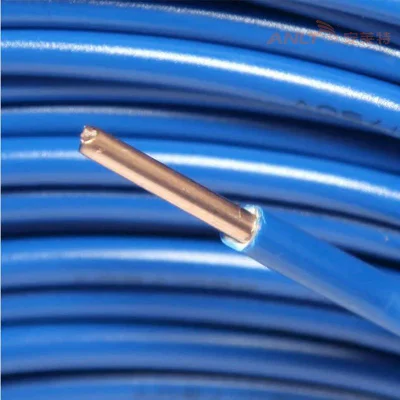

| Product Name | Electric PVC House Wire |
| Model NO. | BV |
| Conductor Material | Annealed pure copper /Cu |
| Insulation Material | PVC |
| Number Of Cores | Single wires no strands |

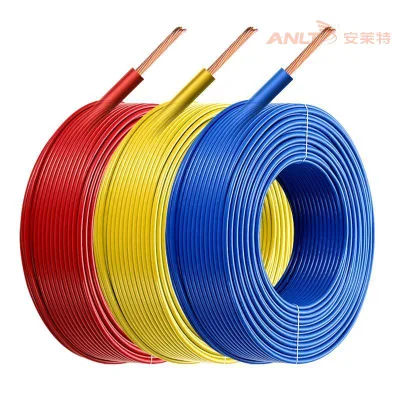

| Roll Length | 100 m |
| Fire Resistant | Yes |
| Wire Size | 1.5 sq to 16 sq |
| Application | Home appliance,lighting,heater,motor & generator |
| Place of Origin | Chengdu, China |
| Brand Name | ANLT |
| Rated voltage | 450/750V, 300/500v |
| Flexing temperature | 0 ºC to +70 ºC |

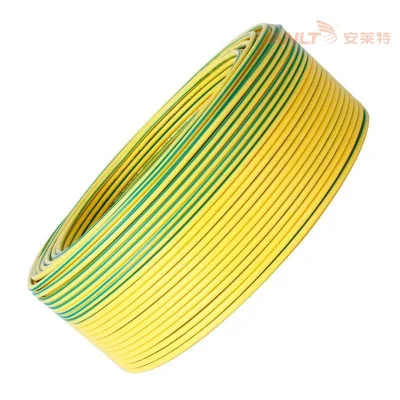

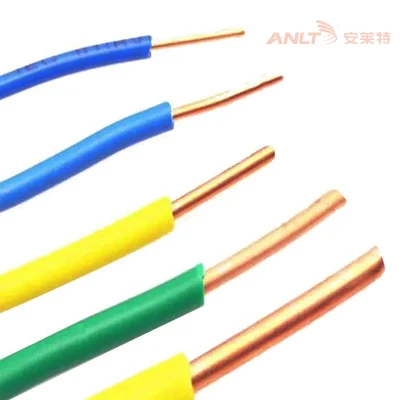

| Color | Three-phase wires:Yellow(Control wire),Green, Red(Hot Wire). Blue(Neutral Wire), Green&yellow(Ground Wire) |
| HS Code | 85444921000 |
| No. of cores and nominal cross section | Thickness of Insulation | Number of the cores | Max. overall Diameter | Approx. weight | Max. DC resistance of conductor(20ºC) |
| (mm2) | (mm) | (pcs) | (mm) | (kg/km) | (ohms/km) |
| 1×1.5mm2 | 0.7 | 1 | 3.3 | 19.2 | 12.1 |
| 1×2.5mm2 | 0.8 | 1 | 3.9 | 30.8 | 7.41 |
| 1×4.0mm2 | 0.8 | 1 | 4.4 | 45.5 | 4.61 |
| 1×6.0mm2 | 0.8 | 1 | 4.9 | 65 | 3.08 |
| 1×10 mm2 | 1.0 | 7 | 7.0 | 110 | 1.83 |
| 1×16 mm2 | 1.0 | 7 | 8.0 | 170 | 1.15 |
1. Are you a manufacturer or trading company?
We are a professional manufacturer. Our factory area around 20 thousands square, and we'd pleasure if you can visit our factory in Chengdu.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy, you'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
5. Does your company accept OEM production?
Yes, could print your company name on the label or surface on the cable, we even custom the quality card and packages to promote your company.
