Product Description
ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

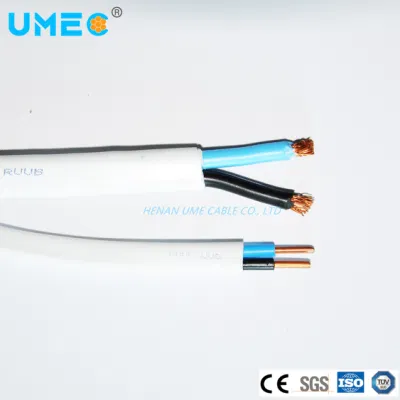

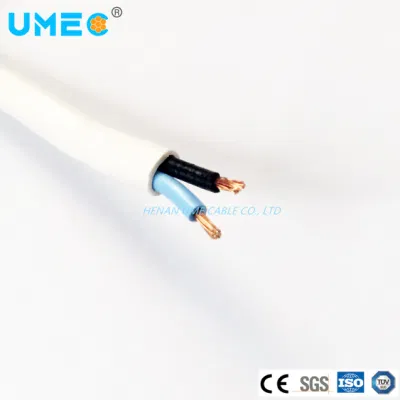

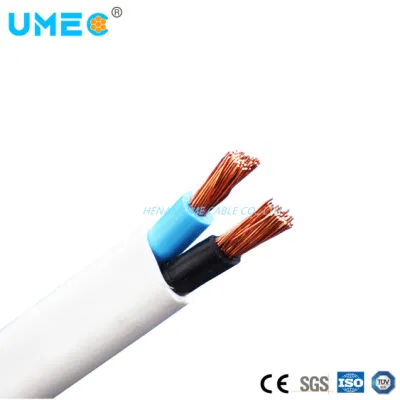

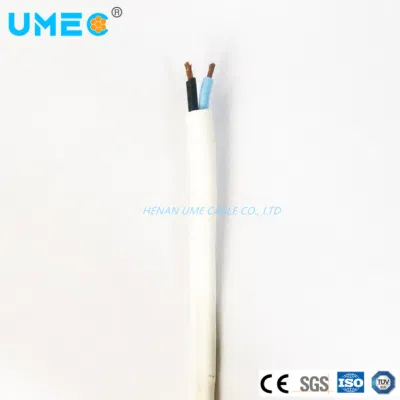

| Product name | Cu/Al Conductor PVC Insulated PVC Sheathed Flat Wire | |||
| Conductor | High-quality oxygen-free Copper/ Aluminum | |||
| Insulation | PVC | |||
| Conductor Material Class | Class 1 Class 2 | |||
| Jacket | PVC | |||
| Rated Voltage | 300/500V, 450/750V | |||
| MOQ | 1KM | |||
| Sample | Free samples | |||
1. Applications
BVVB/BLVVB is used for power devices, instruments, communication equipment and household appliances, small electric tools, instruments, and power lighting circuits (fixed laying) with rated voltage up to 450/750V.
2. Standards
BVVB/BLVVB meets or exceeds the following international standards: BS 6500, BS 6004, BS 6360, BS EN 50363, IEC 60227, and DIN VDE 0281.GB5023
| BVVB 300/500V (2 core solid copper conductor PVC insulation PVC sheath wire) | |||||
| Nominal section(mm2) | Number/diameter of core(mm) | Average dia.(mm) | Reference weight(kg/km) | Conductor resistance at 20ºC(Ω/km) | |
| min | max | ||||
| 2x0.75 | 2x1/0.97 | 3.8x5.9 | 4.6x7.1 | 44 | 24.5 |
| 2x1.0 | 2x1/1.13 | 3.9x6.1 | 4.8x7.4 | 51 | 18.1 |
| 2x1.5 | 2x1/1.38 | 4.4x7.0 | 5.3x8.5 | 66 | 12.1 |
| 2x2.5 | 2x1/1.78 | 5.1x8.4 | 6.2x10.1 | 96 | 7.41 |
| 2x4 | 2x1/2.25 | 5.6x9.2 | 6.7x11.1 | 126 | 4.61 |
| 2x6 | 2x1/2.76 | 6.2x10.4 | 7.5x12.5 | 170 | 3.08 |
| 2x10 | 2x7/1.70 | 7.9x13.4 | 9.5x16.2 | 323 | 1.83 |
| 3x0.75 | 2x1/0.97 | 3.8x7.9 | 4.6x9.6 | 63 | 24.5 |
| 3x1.0 | 2x1/1.13 | 3.9x8.4 | 4.8x10.1 | 74 | 18.1 |
| 3x1.5 | 2x1/1.38 | 4.4x9.6 | 5.3x11.7 | 96 | 12.1 |
| 3x2.5 | 2x1/1.78 | 5.4x11.6 | 6.2x14 | 140 | 7.41 |
| 3x4 | 2x1/2.25 | 5.8x13.1 | 7.0x15.8 | 200 | 4.61 |
| 3x6 | 3x1/2.76 | 6.2x14.5 | 7.5x17.5 | 275 | 3.08 |
| 3x10 | 3x7/1.70 | 7.9x19.0 | 9.5x23 | 485 | 1.83 |
| Type | Name |
| 227 IEC 01 (BV) | Single-core non-sheathed cable with solid conductor for general purposes |
| 227 IEC 02 (RV) | Single-core non-sheathed cable with flexible conductor for general purposes |
| 227 IEC 05 (BV) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 06 (RV) | Single-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70oC |
| 227 IEC 07 (BV-90) | Single-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 08 (RV-90) | Single-core non- sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90oC |
| 227 IEC 10 (BVV) | Light PVC sheathed cable |
| 227 IEC 42 (RVB) | Flat non-sheathed flexible cable |
| 227 IEC 52 (RVV) | Light PVC sheathed flexible cable |
| 227 IEC 53 (RVV) | Ordinary PVC sheathed flexible cable |
| 227 IEC 74 (RVVYP) | Oil-proof PVC sheathed, screened flexible cable |
| 227 IEC 75 (RVVY) | Oil-proof PVC sheathed, non-screened flexible cable |
HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!
Production:
- Raw material inspection and test
- Production process test
- Unqualified product control
- Regular test and examination
- Finished product inspection
500 kV double-circuit transmission line - Pakistan
230 kV Lamphun 3-Chom Thong transmission line - Thailand
Supply of ACSR moose conductor - Nepal
230/66/11 kV Mawlamyine-Ye-Dawei transmission line - Myanmar
400 kV Khandukhal-Rampura double-circuit transmission line - India
Reconductoring 132 kV Kabirpur-Kaliakoir and Kaliakoir-Tangail double-circuit transmission lines - Bangladesh
UME CABLE was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with a most competitive price within the market.
Q1: Are you a manufacturer?
Yes, we are the manufacturer.
Q2: What are your main products?
Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.
Q3: Do you provide samples? Is it free or extra?
Yes, we could offer the samples for free
Q4: Is the quality of your products guaranteed?
We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.
Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.
Q6: What is your payment term?
T/T or L/C
Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
