Basic Info.
Model NO.
UL1569 22AWG
Range of Application
Internal Wiring of Electrical and Electronic Equip
Certification
ISO9001, CCC, RoHS, cUL,IATF 16949
Rating Voltage (V)
300V
Rated Temperature(ºC)
105ºC
Flame Test
VW-1 & FT1
Standard
UL758, UL1581, CSA C22.2 No.210
Transport Package
Rolls or as Required
Specification
UL1569
Origin
China
Product Description

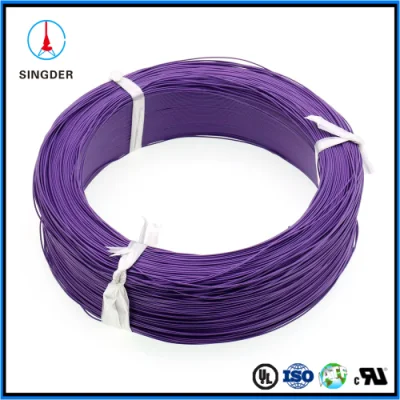

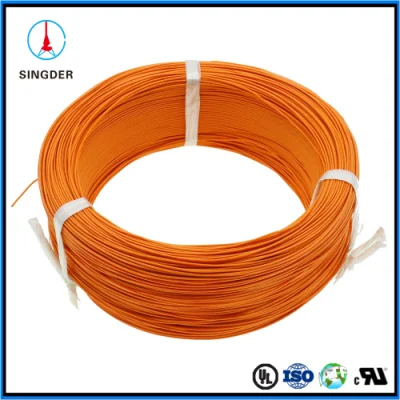

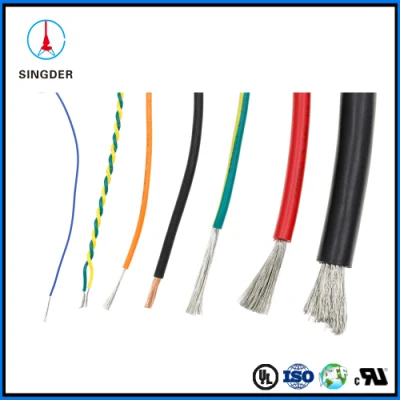

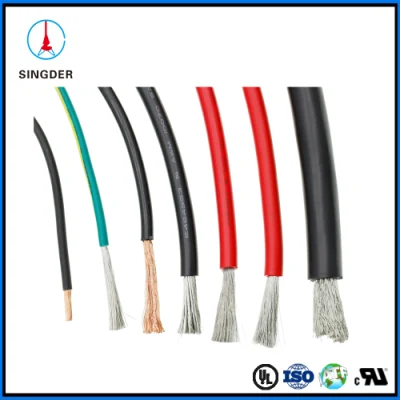

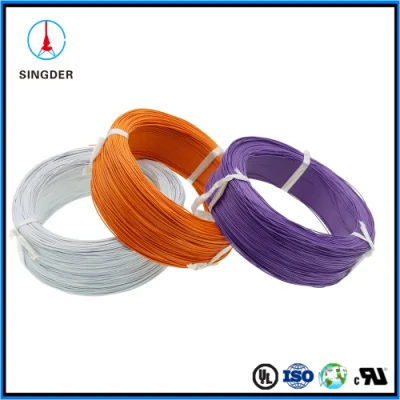

UL1569 PVC Insulated Wire
-Rated temperature: 105ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
-Rated temperature: 105ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 30 | 7/0.10 | 0.30 | 0.45 | 1.20 | 381 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 59.4 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 14.6 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 8.96 |
| 12 | 65/0.254 | 2.36 | 0.47 | 3.30 | 5.64 |
