Basic Info.
Model NO.
UL1430
Range of Application
Flame Retardant
Certification
RoHS
Brand
Bort
Packaging
1000FT/Spool
Color Available
Any Colors
Delivery Time for Samples
3-5days
Delivery Time for Mass Production
7-10days
Appliance
for Internal Wiring of Appliance
Warranty Time
at Least 10years for Proper Use
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2008
Annual Capacity
300, 000kms
Transport Package
Coiled in The Plastic Spool
Specification
30-16AWG
Trademark
BoRt
Origin
Zhangzhou, China
HS Code
8544492900
Production Capacity
300000kms
Product Description

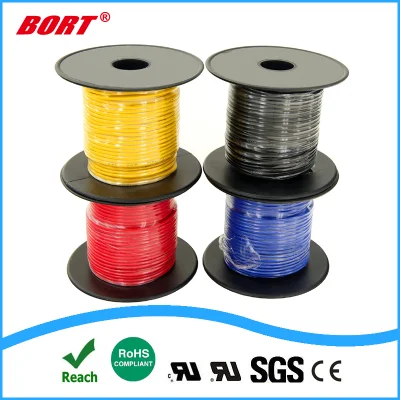

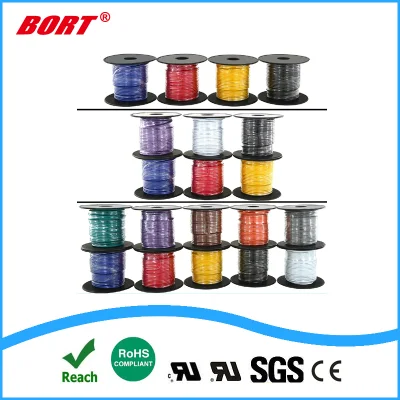

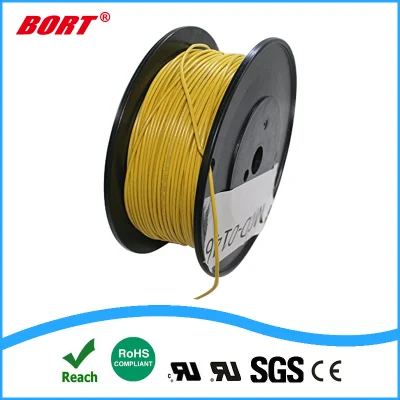

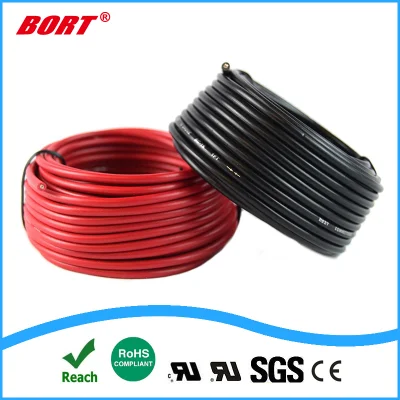

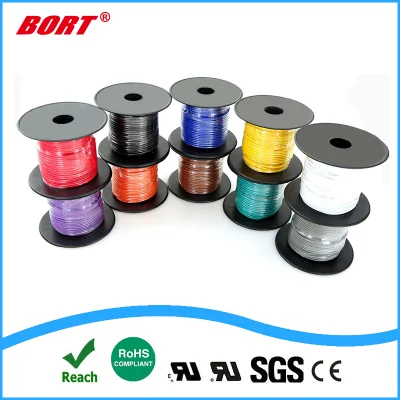

UL1430 24AWG 105 Degree XLPV Electrical Assembly Line
- Model: UL1430 irriadiated PVC insulated wire
- Rated Voltage: 300V
- Rated Temperature: 105°C
- Reference Standard: Subject UL758, UL1581
- Conductor: solid or stranded, bare or tinned copper
- Irradiated lead free PVC insulation
- 30AWG to 16AWG
- Passes UL VW-1 FT1 vertical flame test
- For internal wiring of appliance
| Conductor | Finished product | Maximum Resistance at 20ºC | |||
| AWG | NO.of Cond | Insulation Thick. | Outside Thick. | Packing | |
| mm | mm | mm | m/r | Ω/mm | |
| 30 | 7/0.1 | 0.41 | 1.10 | 610 | 354.33 |
| 28 | 7/0.127 | 0.41 | 1.20 | 610 | 223.75 |
| 26 | 7/0.16 | 0.41 | 1.30 | 610 | 139.76 |
| 24 | 11/0.16 | 0.41 | 1.40 | 610 | 88.36 |
| 22 | 17/0.16 | 0.41 | 1.60 | 610 | 60.16 |
| 20 | 21/0.178 | 0.41 | 1.80 | 610 | 38.58 |
| 18 | 34/0.178 | 0.41 | 2.10 | 610 | 22.98 |
| 16 | 26/0.254 | 0.41 | 2.40 | 610 | 15.06 |
| 28 | 1/0.320 | 0.41 | 1.15 | 610 | 227.39 |
| 26 | 1/0.404 | 0.41 | 1.25 | 610 | 142.79 |
| 24 | 1/0.511 | 0.41 | 1.35 | 610 | 89.39 |
| 22 | 1/0.643 | 0.41 | 1.50 | 610 | 54.30 |
| 20 | 1/0.813 | 0.41 | 1.65 | 610 | 33.90 |
| 18 | 1/1.024 | 0.41 | 1.85 | 610 | 21.40 |
