Basic Info.
Model NO.
UL1185
Conductor Material
Copper
Sheath Material
None
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Refractory
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Bort
Packaging
1000FT/Spool
Weight
About 1kg/1000FT
Color Available
Any Colors
Delivery Time for Samples
3-5days
Delivery Time for Mass Production
15-30days
Appliance
Internal Wiring of Electronic&Electrical Equipment
Warranty Time
at Least 10 Years for Proper Use
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2015
Annual Capacity
300,000kms
Transport Package
Reel, Spool, Pallet
Trademark
BORT
Origin
China
HS Code
8544492900
Production Capacity
300000km/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg

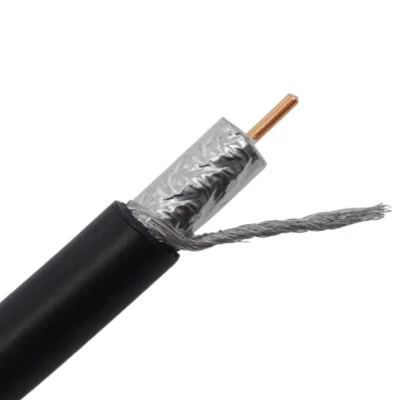

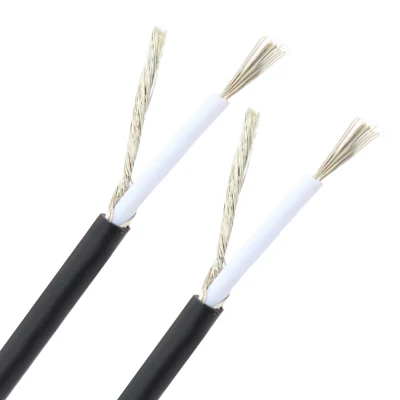

Product Description
Product Description:
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper spiral shield
★PVC jacket
★Passes UL VW-1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer
Features of Electronic Hook-Up Wire
The copper conductors are available in solid and stranded fashion.
The insulation can be color-coded and striped according to the client's preference
We spool wire with short and long put-ups for added convenience.
The wire manufactured by us displays excellent uniformity, and it doesn't fray easily. This allows for ease of use, installation, stripping, and replacement.
The variety of materials offer resistance to corrosion, abrasion, extreme temperatures, oils, and harsh chemicals.
Advantages of Electronic Hook-Up Wire
Our clients can benefit from our electronic hook-up wire in the following ways:
Generally used in electronic appliances.
Can be used for general hook-up functions.
Specific high temperature hook-up wire can be used for high temperature applications.
Some insulating materials allow the wire to be self-extinguishing.
The extruded material can be chosen to provide flexibility or a tough exterior.
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper spiral shield
★PVC jacket
★Passes UL VW-1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer
| Conductor | Finished product | ||||
| AWG | NO.of Cond/mm | Insulated Thick. | Braid Shield | Jacket Thick. | Outside Thick. |
| mm | No./d | mm | mm | ||
| 30 | 7/0.1 | 0.41 | 32/0.10 | 0.40 | 2.10 |
| 28 | 7/0.127 | 0.41 | 34/0.10 | 0.40 | 2.20 |
| 26 | 7/0.16 | 0.41 | 37/0.10 | 0.40 | 2.30 |
| 24 | 11/0.16 | 0.41 | 40/0.10 | 0.40 | 2.40 |
| 22 | 17/0.16 | 0.41 | 45/0.10 | 0.40 | 2.60 |
| 20 | 21/0.178 | 0.41 | 50/0.10 | 0.40 | 2.80 |
| 18 | 34/0.178 | 0.41 | 58/0.10 | 0.40 | 3.10 |
| 16 | 26/0.254 | 0.41 | 66/0.10 | 0.40 | 3.40 |
| 28 | 1/0.320 | 0.41 | 33/0.10 | 0.40 | 2.15 |
| 26 | 1/0.404 | 0.41 | 36/0.10 | 0.40 | 2.25 |
| 24 | 1/0.511 | 0.41 | 38/0.10 | 0.40 | 2.35 |
| 22 | 1/0.643 | 0.41 | 42/0.10 | 0.40 | 2.50 |
| 20 | 1/0.813 | 0.41 | 46/0.10 | 0.40 | 2.65 |
| 18 | 1/1.024 | 0.41 | 51/0.10 | 0.40 | 2.85 |
