Basic Info.
Model NO.
UL1569
Range of Application
Electronic and Electrical Equipment and Appliance
Certification
ISO9001, CCC, RoHS, cUL,IATF 16949
Rating Voltage (V)
300V
Rated Temperature(ºC)
105ºC
Flame Test
VW-1 & FT1
Standard
UL758, UL1581, CSA C22.2 No.210
Transport Package
Rolls or as Required
Specification
UL1569
Origin
China
Product Description
View more about products : https://xsdsingder.en.made-in-china.com/product-list-1.html

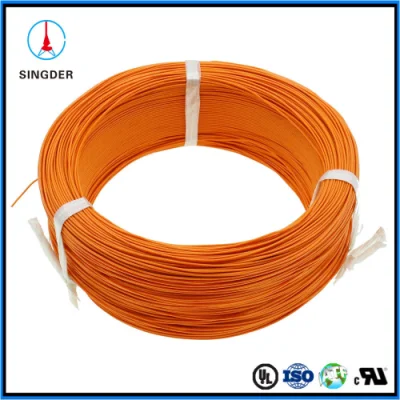

UL1569 PVC Insulated Wire-Rated temperature: 105ºC
-Rated voltage: 300V
-Reference Standard: UL758, UL1581, C22.2 No.210
-Passes UL VW-1 & CSA FT1 vertical flame test.
-Uniform insulation thickness of wire to ensure easy stripping and cutting.
-For internal wiring of electronic and electrical equipment and appliance.
| Conductor | Insulation | Max. Cond Resistance at 20°C (Ω/km) | |||
| AWG | Construction (No./mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | |
| 30 | 7/0.10 | 0.30 | 0.45 | 1.20 | 381 |
| 28 | 7/0.127 | 0.38 | 0.41 | 1.20 | 239 |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 150 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 94.2 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 59.4 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 36.7 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.2 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 14.6 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 8.96 |
| 12 | 65/0.254 | 2.36 | 0.47 | 3.30 | 5.64 |
