Basic Info.
Model NO.
SOOW Cable
Material Shape
Round Wire
Range of Application
Mine
Certification
ISO9001, CCC, RoHS
Brand
Renda
Products Name
Flexible Cords, Soow, Sjoow
UL Listed Type
Soow, Sjoow, Sjeoow, Sto
Standard
UL62
Rated Voltage
Low Voltage 300V, 600V
Insulation
Epr, EPDM, Ep
Sheath
CPE, Sun Resistance, Oil Resistance, Water Resista
Working Temperture
Max 90 Degree or 105degre
RoHS
Yes
Sheath Color
Black
Msha
Available
Transport Package
Roll, Reel, Coil as Your Requirements
Specification
18AWG, 16AWG, 14AWG, 10AWG, 8AWG, 6AWG, 4AWG, 2AWG
Trademark
RENDA
Origin
China
HS Code
8544492100
Production Capacity
10000000FT/Month
Product Description

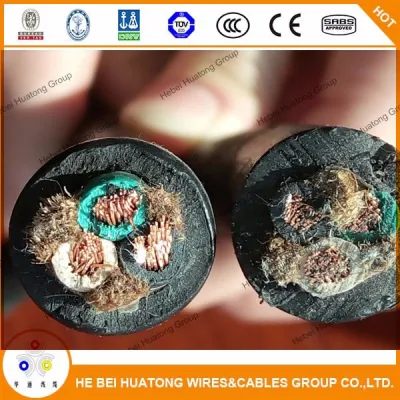

UL flexible Cords,flexible cable 3x12 3x10 4x10 4x8 AWG 600v SOOW rubber cable
APPLICATION
TYPE SOOW Cable is for use in heavy-duty industrial applications where flexibility and durability is required. SOOW is designed for extra hard usage on industrial equipment, heavy tools, motor and welding leads, power extensions, portable machinery, sound equipment, portable stage lights, marine dockside power and mining applications. Constructed of color-coded synthetic oil, ozone and water resistant rubber (EPDM) insulation and an oil resistant thermoset chlorinated polyethylene (CPE) jacket, SOOW is rated for indoor/outdoor use.
SOOW flexible rubber cords carry a 600 volt rating. They are also manufactured as a 300 volt rated Junior Service cord designated as SJOOW. Using the key, a SJEOOW cord is a 300 volt (junior service) elastomer plastic oil resistant inner and outer jacket portable cord.
Applications
- Portable tools
Industrial and processing equipment
Construction equipment
Cranes and hoists
Track systems
Battery chargers
Portable appliances
Small motors and associated machinery
Electrical equipment exposed to oils, solvents, flame, or moisture
STANDARDS & REFERENCES
Type SOOW Cords/Cable meets or exceeds the applicable requirements of the following standards and
specifications:
UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant
SOOW offers:
• Excellent resistance to oils, acids, chemicals, water, ozone, extreme
temperatures, cuts, tears and abrasion
• Sunlight resistant
• Flame retardant
• Indoor/outdoor rated
• Highly flexible
• Maximum continuous conductor temperature: 90°C DRY

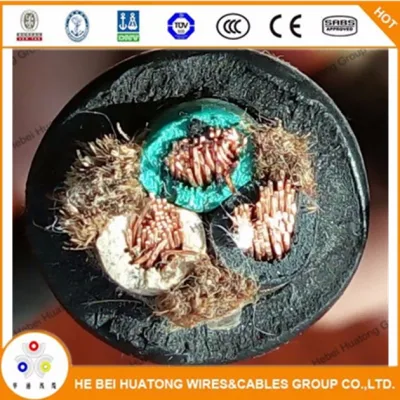

CONSTRUCTION
Conductors: Bare, annealed copper per ASTM B-3 Flexible, bunch-stranded per UL-62
Separator: A paper tape is applied between the conductor and insulation to facilitate stripping.
Insulation: Color coded synthetic rubber (EPDM) oil and water resistant per UL-62
Jacket: Black Chlorinated Polyethylene (CPE)
Cabling: Conductors are assembled round with fillers as needed.
Temperature Range: -40°C to +90°C
Voltage Rating: 600 Volts for SOOW,300 Volts for SJOOW
| Conductor Size (AWG) | Conductor Stranding | Nominal Insulation Thickness | Nominal Jacket Thickness | Nominal Overall Diameter (in) | Weight | Ampacity | ||
| n | / | AWG/inch | mil | mil | in | lbs/1000ft | A | |
| 2*18AWG | 16 | / | 30 | 30 | 60 | 0.33 | 70 | 10 |
| 3*18AWG | 16 | / | 30 | 30 | 60 | 0.35 | 80 | 10 |
| 4*18AWG | 16 | / | 30 | 30 | 60 | 0.37 | 96 | 7 |
| 2*16AWG | 26 | / | 30 | 30 | 60 | 0.36 | 86 | 13 |
| 3*16AWG | 26 | / | 30 | 30 | 60 | 0.37 | 99 | 13 |
| 4*16AWG | 26 | / | 30 | 30 | 60 | 0.41 | 119 | 10 |
| 2*14AWG | 41 | / | 30 | 45 | 80 | 0.49 | 155 | 18 |
| 3*14AWG | 41 | / | 30 | 45 | 80 | 0.51 | 179 | 18 |
| 4*14AWG | 41 | / | 30 | 45 | 80 | 0.56 | 215 | 15 |
| 2*12AWG | 65 | / | 30 | 45 | 95 | 0.56 | 206 | 25 |
| 3*12AWG | 65 | / | 30 | 45 | 95 | 0.58 | 239 | 25 |
| 4*12AWG | 65 | / | 30 | 45 | 95 | 0.63 | 290 | 20 |
| 2*10AWG | 104 | / | 30 | 45 | 95 | 0.62 | 266 | 30 |
| 3*10AWG | 104 | / | 30 | 45 | 95 | 0.66 | 316 | 30 |
| 4*10AWG | 104 | / | 30 | 45 | 95 | 0.72 | 385 | 25 |
| 3*8AWG | 133 | / | 29 | 60 | 110 | 0.83 | 505 | 40 |
| 4*8AWG | 133 | / | 29 | 60 | 125 | 0.93 | 646 | 35 |
| 5*8AWG | 133 | / | 29 | 60 | 125 | 0.93 | 684 | 35 |
| 3*6AWG | 133 | / | 27 | 60 | 125 | 0.95 | 694 | 55 |
| 4*6AWG | 133 | / | 27 | 60 | 140 | 1.07 | 885 | 45 |
| 5*6AWG | 133 | / | 27 | 60 | 140 | 1.07 | 946 | 45 |
| 3*4AWG | 133 | / | 0.0177 | 60 | 140 | 1.09 | 952 | 70 |
| 4*4AWG | 133 | / | 0.0177 | 60 | 155 | 1.22 | 1210 | 60 |
| 5*4AWG | 133 | / | 0.0177 | 60 | 155 | 1.22 | 1304 | 60 |
| 3*2AWG | 133 | / | 0.0223 | 60 | 155 | 1.26 | 1344 | 95 |
| 4*2AWG | 133 | / | 0.0223 | 60 | 170 | 1.41 | 1705 | 80 |
| 5*2AWG | 133 | / | 0.0223 | 60 | 170 | 1.41 | 1853 | 80 |
