Product Description

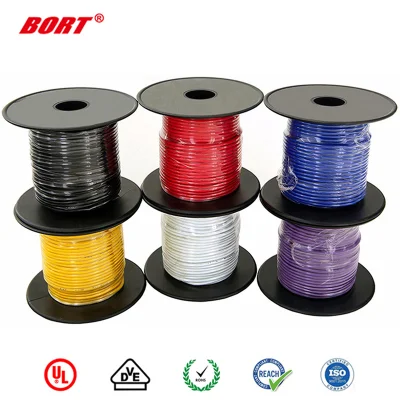

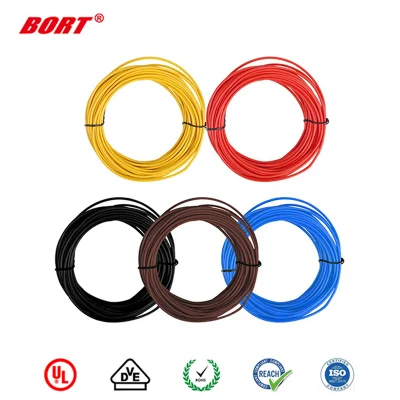

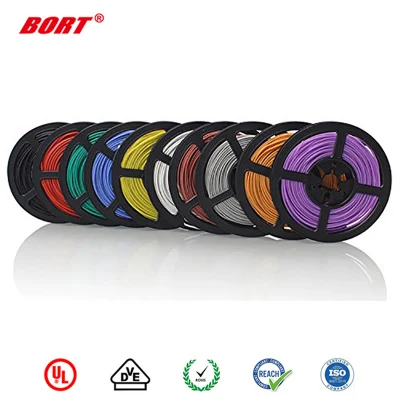

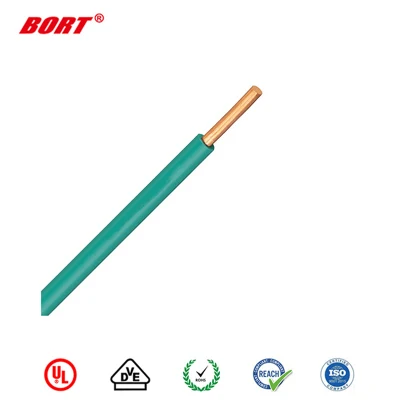

UL1569 Electrical Cable Wire PVC Cable Wire for Electronics with UL
Rated temperature: 80ºC or 90ºC or 105ºC
Rated voltage: 300V
Reference Standard: UL Subject 758, UL1581
Tinned or bare, stranded or solid copper conductor,30-10 AWG
Colour-coded lead free PVC insulation
Uniform insulation thickness to ensure easy stripping and cutting
Passes UL VW-1 FT1 vertical flame test
Application: For internal wiring of appliances and electronic equipment
| Gauge | Construction | Conductor | Insulation | Wire O.D | Max Cond Resistance |
| (AWG) | (no/mm) | Outer Diameter(mm) | Thickness (mm) | (mm) | (Ω/kft,20ºC) |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.3 | 139 |
| 24 | 11/0.16 | 0.61 | 1.43 | 88.9 | |
| 22 | 17/0.16 | 0.76 | 1.58 | 57.5 | |
| 20 | 7/0.32 | 0.96 | 1.78 | 34.6 | |
| 18 | 41/0.16 | 1.18 | 2.0 | 23.3 | |
| 16 | 26/0.254 | 1.49 | 2.32 | 15.1 | |
| 14 | 41/0.254 | 1.87 | 2.70 | 9.2 |
