Basic Info.
Model NO.
UL1569
Material Shape
Round Wire
Range of Application
Electric Appliance Internal Wiring
Certification
ISO9001, CE, RoHS
Brand
Hanker
Rated Voltage
300V
Rated Temperature
80c 90c 105c
Transport Package
610m/Roll
Specification
10-30awg
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
60000m/Month
Product Description

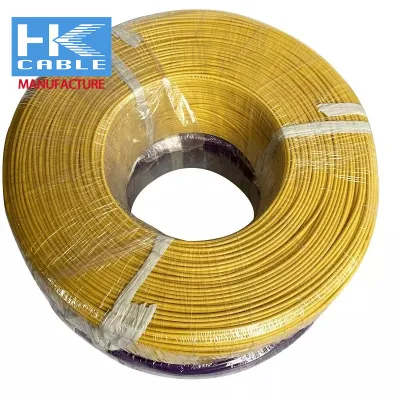

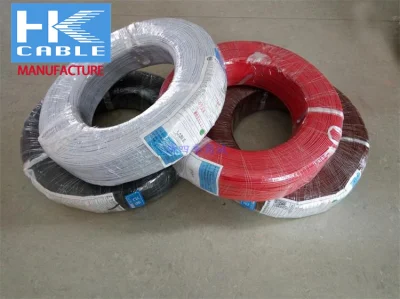

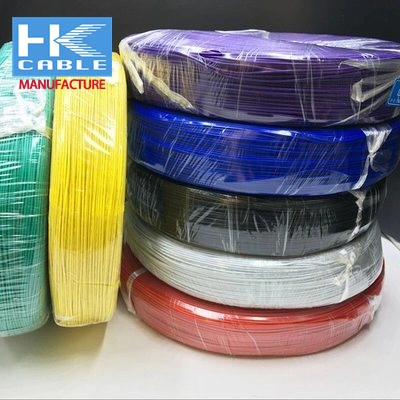

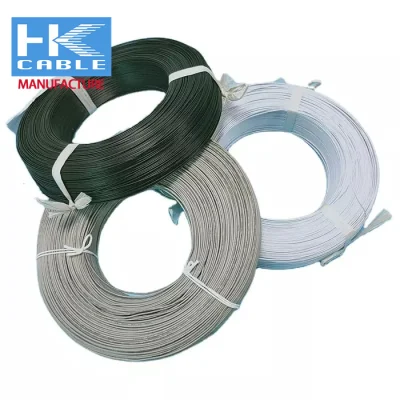

Ul1569 18Awg Voltages 300V Temperature 105 Degreestinned Copper Hook Up high temperature 300V 20 24 awg single small electrical PVC insulated copper cable wire
wire printing:
Style 1569 Single Conductor with extruded insulation Rating: 80, 90 or 105 deg C, 300 Vac, Horizontal flame.
Conductor: 30 AWG - 2 AWG, solid or stranded.
Insulation: Extruded PVC.
Covering: Optional, Extruded PVC, 9 mils minimum average thickness, 8 mils minimum thickness at any point.
Standard: Appliance Wiring Material UL 758.
Marking: General.
Usage: Internal wiring of appliances or electronic equipment where not subjected to movement or mechanical damage. Tag may also indicate the following, "600 Volts Peak for Electronic Use Only."
UL TYPE | Gauge (AWG) | Construction (no/mm) | conductor outer diameter (mm) | insulation thickness (mm) | wire O.D (mm) | Max Cond. resistance(Ω/km ,20ºC | packing | |
| FT/ROLL | METER/ROLL | |||||||
| 1569 | 30 | 1/0.254 | 0.25 | 0.4 | 1.05 | 361 | ||
| 7/0.1 | 0.3 | 0.4 | 1.1 | 381 | 2000 | 610 | ||
| 28 | 1/0.32 | 0.32 | 0.39 | 1.1 | 227 | |||
| 7/0.127 | 0.38 | 0.41 | 1.2 | 239 | ||||
| 7/0.127 OS-1 | 0.38 | 0.41 | 1.2 | 239 | ||||
| 26 | 1/0.404 | 0.4 | 0.43 | 1.25 | 143 | |||
| 7/0.16 | 0.48 | 0.41 | 1.3 | 150 | ||||
| 7/0.16 OS-1 | 0.48 | 0.41 | 1.3 | 150 | ||||
| 24 | 1/0.511 | 0.51 | 0.42 | 1.35 | 89.3 | |||
| 11/0.16 | 0.61 | 0.4 | 1.4 | 94.2 | ||||
| 7/0.2 OS-1 | 0.6 | 0.41 | 1.4 | 94.2 | ||||
| 22 | 1/0.643 | 0.64 | 0.43 | 1.5 | 56.4 | |||
| 17/0.16 | 0.76 | 0.42 | 1.6 | 59.4 | ||||
| 7/0.254 OS-1 | 0.76 | 0.42 | 1.6 | 59.4 | ||||
| 20 | 1/0.813 | 0.81 | 0.42 | 1.65 | 35.2 | |||
| 26/0.16 | 0.94 | 0.43 | 1.8 | 36.7 | ||||
| 7/0.32 OS-1 | 0.96 | 0.42 | 1.8 | 36.7 | ||||
| 18 | 1/1.024 | 1.02 | 0.41 | 1.85 | 22.2 | 1000 | 305 | |
| 41/0.16 | 1.18 | 0.46 | 2.1 | 23.2 | ||||
| 7/0.404 OS-1 | 1.2 | 0.45 | 2.1 | 23.2 | ||||
| 16 | 1/1.129 | 1.29 | 0.46 | 2.2 | 14 | |||
| 26/0.254 | 1.49 | 0.46 | 2.4 | 14.6 | ||||
| 14 | 1/1.6 | 1.6 | 0.45 | 2.5 | 8.78 | |||
| 41/0.254 | 1.88 | 0.41 | 2.7 | 8.96 | ||||
| 12 | 65/0.254 | 2.36 | 0.42 | 3.2 | 5.64 | |||
| 10 | 7/15/0.254 | 3.42 | 0.44 | 5.05 | 3.54 | |||
