Product Description
Wires and cables are used to transmit electrical (magnetic) energy, information and electromagnetic energy conversion.In the broad sense, electric wire and cable are also referred to as cables. In the narrow sense, cables refer to insulated cables, which can be defined as: an aggregate composed of the following parts;One or more insulated cores and their respective possible cladding,general protection and outer sheaths. Cables may also have additional conductors without insulation.

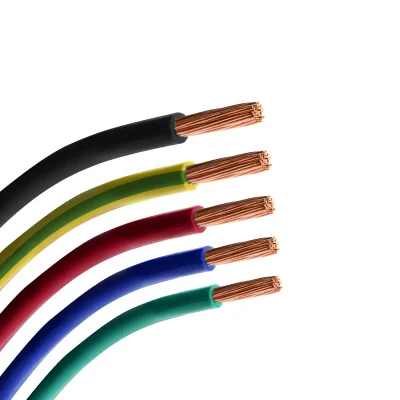

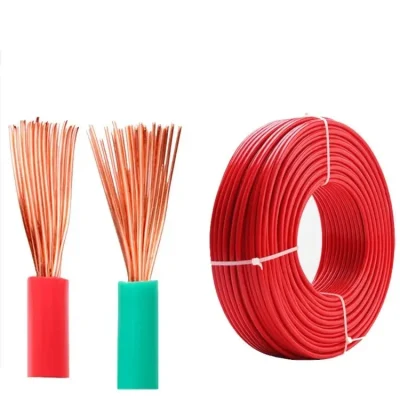

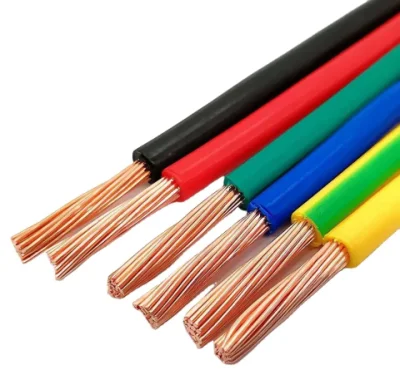

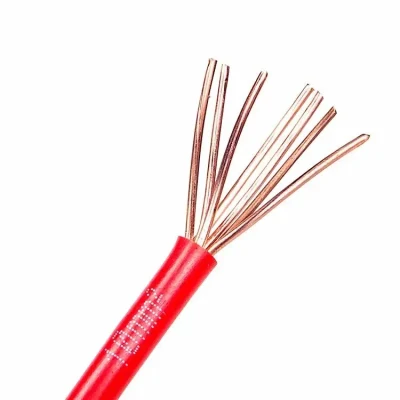

BVR is multi-core copper wire, soft and convenient for construction, but small in strength.
1. standard IEC60227:1993, BS6004,VDE0281
2.solid bare coppe or AL
3. 300/300v 300/500v 450/750v
4.PVC sheathed , color available
5, PVC temperature: -20 °C to +70 °C , also can be 90 °C and 105 °C PVC
Application:
The cable is suitble to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of
electric enquipment, instrument, eletron equipment, automatization device etc.
| Number of conductor cores standard section | Number of conductor structures and diameter of single wire | Nominal insulation thickness mm | Approximate outer diameter of cable mm | Approximate weight of cable kg / km |
| 0.5mm2 | 16/0.20 | 0.6 | 2.18 | 0.9 |
| 0.75mm2 | 24/0.20 | 0.6 | 2.39 | 1.18 |
| 1mm2 | 32/0.20 | 0.6 | 2.56 | 1.45 |
| 1.5mm2 | 48/0.20 | 0.7 | 3.08 | 2.14 |
| 2.5mm2 | 77/0.20 | 0.8 | 3.7 | 3.34 |
| 4mm2 | 56/0.30 | 0.8 | 4.27 | 4.89 |
| 6mm2 | 84/0.30 | 0.8 | 4.85 | 6.9 |
| 10mm2 | 77/0.40 | 1.0 | 6.6 | 11.59 |
| 16mm2 | 7*17/0.40 | 1.0 | 7.6 | 17.42 |
| 25mm2 | 7*27/0.40 | 1.2 | 9.52 | 27.05 |
Qingdao Qianwang Electric Co.,ltd is specialized in all kinds of Cables and Electric Wires with 15 years. We have the most advanced automatic production lines, first-class testing & inspection equipment and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet standards.
We also Conduit Pipes, Conduit Saddle, Cable Trays ect. to offer clients one-stop service.
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Wires,Cables ,Cable Assemblies,Cable Trays&Condiut pipe.
3.Can I get a free sample?
Sure,we offer free sample,you only pay the freight.
4.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods.L/C,PayPal,Western Union are also acceptable.
