Basic Info.
Model NO.
U1000-R02V
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE
Model
U1000-R02V
Brand
Grandcable
Name
Electrical cable
Color
black
Type
Low Voltage Power Cable
OEM
Yes
Transport Package
Fumigated Drums
Trademark
Grandcable
Origin
Jiangsu, China
HS Code
8544492100
Production Capacity
36000 Km Per Year
Product Description
Application
For use on industrial sites and the upright columns of buildings. Particularly suited in cases of high operating temperatures and when high resistance to solar radiation and atmospheric agents is required. Good resistance to low temperatures, chemical agents and UV .It can be used without additional mechanical protection in the open air, fixed to walls or in raceways, inside walkways, and in empty in constructions in general. It can be laid undrground with mechanical protection constucted from slabs, tiles, or bricks. It is not racommend to lay thiscable in ground flooded for more than two months per year. With appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the permitted current load is reduced by 15%
Standards
NF XP C32-321 IEC60502-1 NF EN 60332-1-2 Category C2 NF C 15-100
Characteristics
Nominal voltage U0: 600 V
Nominal voltage : 1000 V
Test voltage: 4000 V
Maximun voltage Um: 1200 V
Maximun operating temperature: +90°C
Maximun short circuit temperature: +250°C
Min. operating temperature (without mechanical shocks): -25°C
Minimum installation and use temperature: -10°C

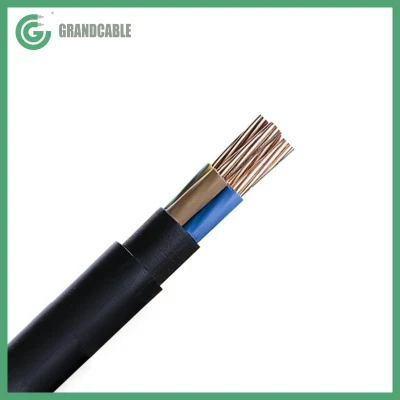

Cable Construction
·Conductor:
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
·Insulation:
XLPE Crosslinked polyethylene insulation(no dry cool).
·Filler:
PP Rope
·Sheath:
PVC (Polyvinyl Chloride)
Dimension Characteristics
Note: More info please contact us.
Testing Facilities:

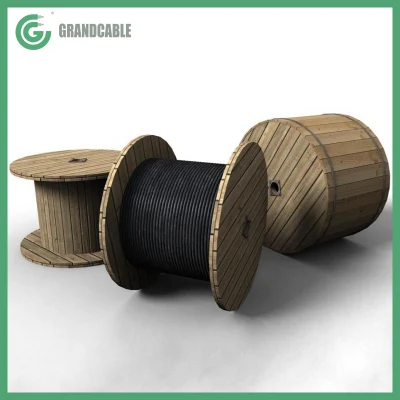

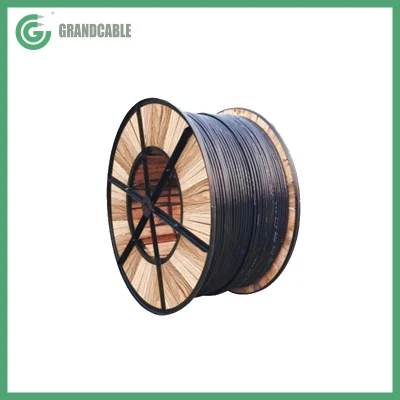

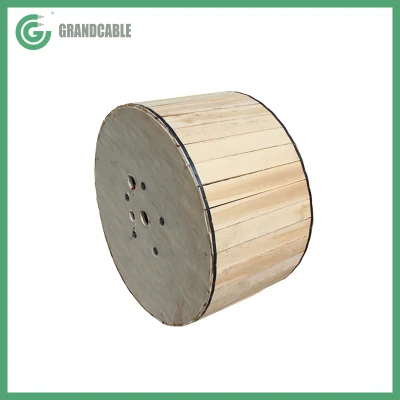

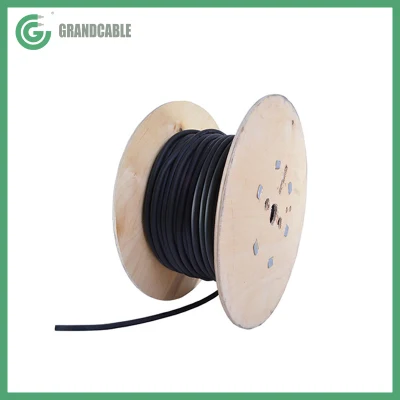

Packaing Photos:
Workshop Views:
For use on industrial sites and the upright columns of buildings. Particularly suited in cases of high operating temperatures and when high resistance to solar radiation and atmospheric agents is required. Good resistance to low temperatures, chemical agents and UV .It can be used without additional mechanical protection in the open air, fixed to walls or in raceways, inside walkways, and in empty in constructions in general. It can be laid undrground with mechanical protection constucted from slabs, tiles, or bricks. It is not racommend to lay thiscable in ground flooded for more than two months per year. With appropriate mechanical protection it can be use in areas subject to risk of explosion, but in this case the permitted current load is reduced by 15%
Standards
NF XP C32-321 IEC60502-1 NF EN 60332-1-2 Category C2 NF C 15-100
Characteristics
Nominal voltage U0: 600 V
Nominal voltage : 1000 V
Test voltage: 4000 V
Maximun voltage Um: 1200 V
Maximun operating temperature: +90°C
Maximun short circuit temperature: +250°C
Min. operating temperature (without mechanical shocks): -25°C
Minimum installation and use temperature: -10°C
Cable Construction
·Conductor:
RE: Class 1 solid copper conductor
RM: Class 2 stranded copper conductor
·Insulation:
XLPE Crosslinked polyethylene insulation(no dry cool).
·Filler:
PP Rope
·Sheath:
PVC (Polyvinyl Chloride)
Dimension Characteristics
| Cores number | Cross section | Approx conductor diameter | Insulation medium thickness | Minim sheath thickness | Maximum external diameter | Electric resistance at 20°C | Arrpox cable weight | Current carrying air free | Current carrying buried |
| N° | mm2 | mm | mm | mm | mm | ohm/km | kg/km | A | A |
| 1 | 1.5 | 1.40 | 0.7 | 1.09 | 6.6 | 12.1 | 45 | 24 | 31 |
| 1 | 2.5 | 1.80 | 0.7 | 1.09 | 7.0 | 7.41 | 55 | 33 | 41 |
| 1 | 4 | 2.25 | 0.7 | 1.09 | 7.6 | 4.61 | 75 | 45 | 59 |
| 1 | 6 | 3.05 | 0.7 | 1.09 | 8.2 | 3.08 | 100 | 58 | 74 |
| 1 | 10 | 3.80 | 0.7 | 1.09 | 9.2 | 1.83 | 140 | 80 | 101 |
| 1 | 16 | 4.70 | 0.7 | 1.09 | 10.5 | 1.15 | 205 | 107 | 128 |
| 1 | 25 | 5.90 | 0.9 | 1.09 | 12.5 | 0.727 | 315 | 138 | 144 |
| 1 | 35 | 7.10 | 0.9 | 1.09 | 13.5 | 0.524 | 400 | 169 | 174 |
| 1 | 50 | 8.00 | 1 | 1.09 | 15.0 | 0.387 | 530 | 207 | 206 |
| 1 | 70 | 9.60 | 1.1 | 1.09 | 17.0 | 0.268 | 725 | 268 | 254 |
| 1 | 95 | 11.4 | 1.1 | 1.18 | 19.0 | 0.193 | 985 | 328 | 301 |
| 1 | 120 | 13.1 | 1.2 | 1.18 | 21.0 | 0.153 | 1260 | 382 | 343 |
| 1 | 150 | 14.6 | 1.4 | 1.26 | 23.0 | 0.124 | 1520 | 441 | 387 |
| 1 | 185 | 16.5 | 1.6 | 1.26 | 25.5 | 0.0991 | 1940 | 506 | 434 |
| 1 | 240 | 18.4 | 1.7 | 1.35 | 28.5 | 0.0754 | 2310 | 599 | 501 |
| 1 | 300 | 21.1 | 1.8 | 1.43 | 31.0 | 0.0601 | 3200 | 693 | 565 |
| 1 | 400 | 23.5 | 2.0 | 1.52 | 34.2 | 0.047 | 3931 | - | 639 |
| 1 | 500 | 26.5 | 2.2 | 1.60 | 38.0 | 0.0366 | 5020 | - | 713 |
| 1 | 630 | 30.1 | 2.4 | 1.69 | 44.0 | 0.0286 | 5324 | - | 785 |
