Basic Info.
Model NO.
UL1095
Conductor Material
Copper
Insulation Material
PVC
Material Shape
Round Wire
Certification
ISO9001, CE
Brand
Bort
Factory
ISO 9001
Standard
Reach/RoHS
OEM/ODM
Accepted
Delivery
7-12days
Reach/RoHS
as Request
Sample
Supplied
Sample Time
3-5days
Packing
as Request
Weight
3.4kgs/Roll
Transport Package
Rolls
Specification
30-16AWG
Trademark
BORT
Origin
China
HS Code
85444929
Production Capacity
300, 000km/ Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg
Product Description

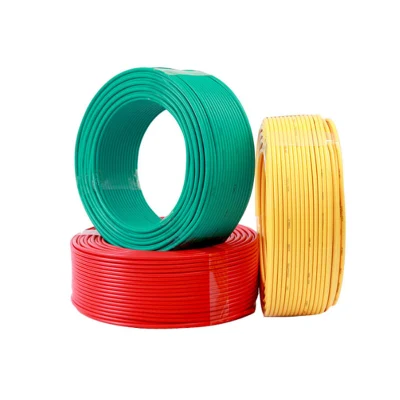

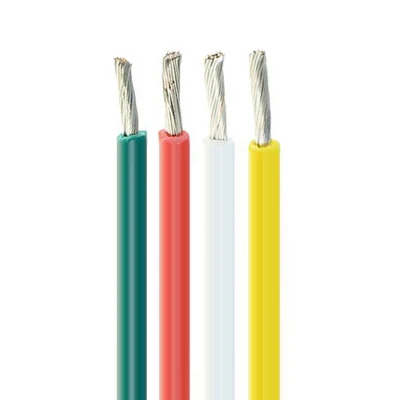

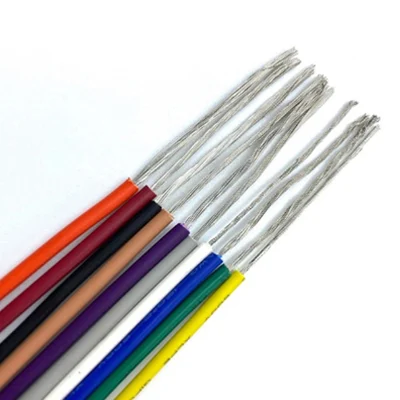

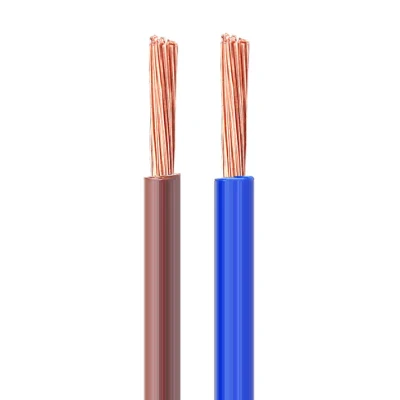

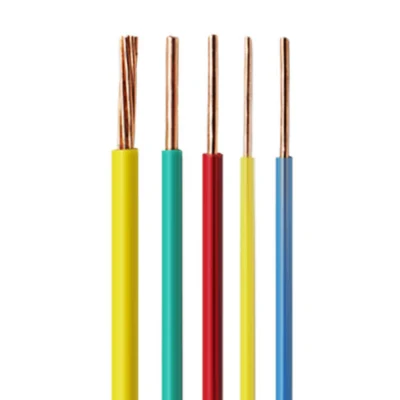

Single Core PVC Copper 1.5 2.5 4 6 10 16 mm Flexible Customized Colored Electrical Wire UL1095
★ Rated temperature:80 ºC
★ Rated voltage:300V
★ According to:UL subject 758,UL 1581
★ Solid or Stranded,tinned or bare copper conductor 30-16AWG
★ PVC insulation
★ Passes UL VW-1 FT1 Vertical flame test
★ Uniform insulation thickness of wire to ensure easy stripping and cutting
★ Environmental testing pass RoHS
★ Internal wiring of appliances or electronic equipment
★ Rated temperature:80 ºC
★ Rated voltage:300V
★ According to:UL subject 758,UL 1581
★ Solid or Stranded,tinned or bare copper conductor 30-16AWG
★ PVC insulation
★ Passes UL VW-1 FT1 Vertical flame test
★ Uniform insulation thickness of wire to ensure easy stripping and cutting
★ Environmental testing pass RoHS
★ Internal wiring of appliances or electronic equipment
| UL TYPE | Gauge | Construction | Conductor | Insulation | Wire O.D | Max Cond | Package | ||
| (AWG) | (no/mm) | Outer | Thickness | (mm) | Resistance | ||||
| Diameter(mm) | (mm) | (Ω/kft,20ºC) | FT/Roll | Roll | |||||
| UL1095 | 26 | 7/0.16 | 0.48 | 0.3 | 1.1 | 45.8 | 2000 | 610 | |
| 24 | 11/0.16 | 0.61 | 1.25 | 28.7 | |||||
| 22 | 17/0.16 | 0.76 | 1.4 | 18.1 | |||||
| 20 | 21/0.178 | 0.94 | 1.6 | 11.2 | |||||
| 18 | 16/0.254 | 1.17 | 1.8 | 7.06 | 1000 | 305 | |||
| 16 | 26/0.254 | 1.49 | 2.1 | 4.45 | |||||
