Basic Info.
Model NO.
Electric wire
Conductor Material
Aluminum
Sheath Material
PVC
Insulation Material
XLPE
Material Shape
Round Wire
Range of Application
LSOH
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Qingxin
Rated Voltage
300/300V 300/500V 450/750V
Rated Temperature
-15~150
Color
as Request
Core Type
Solid / Flexible
Nominal Cross-Section
0.5/1/1.5/2.5/4/6---350mm
Certificats
CCC CE ISO FCC SGS
OEM
Available
ODM
Available
Sample
Available
MOQ
Sample Order/Small Order Can Be Acceptable.
Lead Time
10-15days
Transport
by Sea. Express. Air
Warranty Period
24 Months
Service Life
25 Years
Usage
House and in Building Wiring

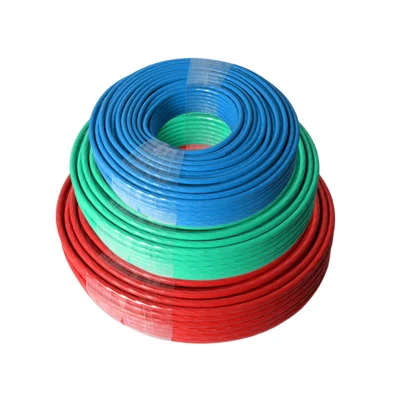

Transport Package
100meters/Roll
Specification
0.3mm~300mm
Trademark
Qingxin
Origin
China
HS Code
8544492100
Production Capacity
5000km/Month
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 20.00cm
Package Gross Weight
2.000kg

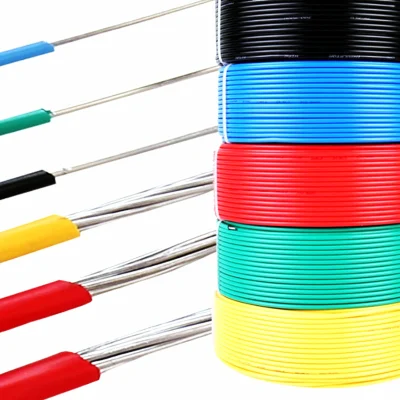

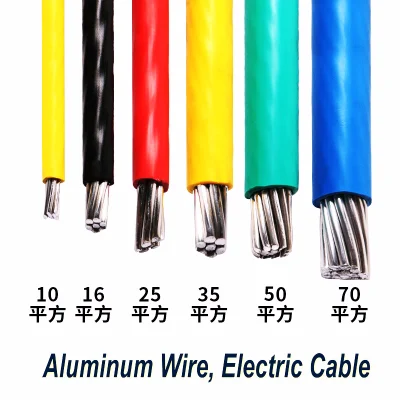

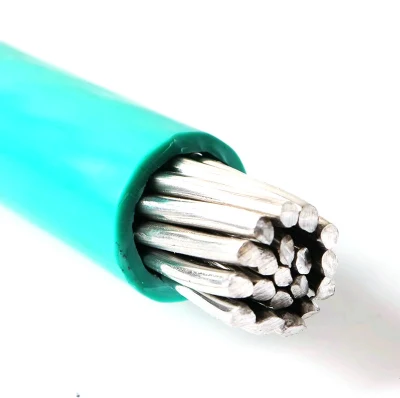

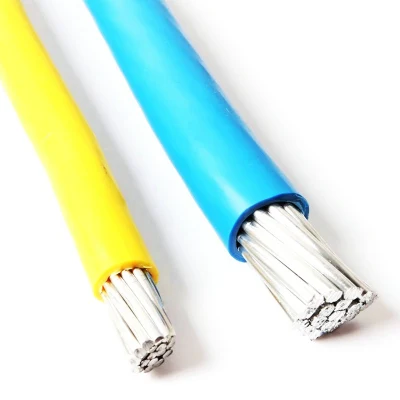

Product Description
Wire Features:
High Purity aluminum conductor, PVC / XLPE insulated house and building wire with fire-resistant Flame Retardant Low Smoke Zero Halogen Characters.
Suitable for cables and wires used in daily appliances, instruments, and telecommunications equipment with AC voltage of 450/750V and below.
High Purity aluminum conductor, PVC / XLPE insulated house and building wire with fire-resistant Flame Retardant Low Smoke Zero Halogen Characters.
Suitable for cables and wires used in daily appliances, instruments, and telecommunications equipment with AC voltage of 450/750V and below.
Applications:
XLPE Insulated electric wires are generally used in relatively concealed places, such as floors, walls, etc., and can also be used for the installation of household circuits,daily appliances, instruments.
XLPE Insulated electric wires are generally used in relatively concealed places, such as floors, walls, etc., and can also be used for the installation of household circuits,daily appliances, instruments.
1. Standards
cable implements the standards GB/T10491.2-2004, And it can also be made to comply with CE, SGS, SAA PSE standards, etc. In addition, we can design and manufacture the products as your requirements .
2. Structure
1. Suitable to be installed in electrical power transmission and distribution lines rated voltage 450/750V and below.
2. conductor's rated working temperature:≤70ºC
3.Short-circuit temperature160/5sec
4. Cable laying environment≥0ºC
5. Cable laying, bend radius≥10 times cable O.D.
3. Feature
1. Uo/U is 450/750V,300/500V,
2. Long-term allowable temperature of the cable: The allowable temperature of -10ºC Cable should not exceed 70ºC; the allowable temperature of other models should not exceed 105ºC.
4.Parameters
| Model | Rated Voltage | Normal area (mm) | Overall diameter (mm) | Weight (KG) | Conductor Resistance rate Not more than at 20 centigrade (Ω/km) | Wire core structure Cores/Diameters (mm) |
| BV | 300/500V | 0.5 | 2.4 | 8.5 | 36.0 | 1/0.80 |
| BV | 300/500V | 0.75(A) | 2.6 | 11.1 | 24.5 | 1/0.97 |
| BV | 300/500V | 0.75(B) | 2.8 | 12.0 | 24.5 | 7/0.37 |
| BV | 300/500V | 1.0(A) | 2.8 | 13.9 | 18.1 | 1/1.13 |
| BV | 300/500V | 1.0(B) | 3.0 | 15.0 | 18.1 | 7/0.43 |
| BV | 450/750V | 1.5(A) | 3.3 | 20.3 | 12.1 | 1/1.38 |
| BV | 450/750V | 1.5(B) | 3.5 | 21.6 | 12.1 | 7/0.52 |
| BV | 450/750V | 2.5(A) | 3.9 | 31.6 | 7.41 | 1/1.78 |
| BV | 450/750V | 2.5(B) | 4.2 | 34.8 | 7.41 | 7/0.68 |
| BV | 450/750V | 4(A) | 4.4 | 47.1 | 4.61 | 1/2.76 |
| BV | 450/750V | 4(B) | 4.8 | 50.3 | 4.61 | 7/1.04 |
| BV | 450/750V | 6(A) | 4.9 | 67.0 | 3.08 | 7/1.35 |
| BV | 450/750V | 6(B) | 5.4 | 71.2 | 3.08 | 7/1.70 |
| BV | 450/750V | 10 | 7.0 | 119 | 1.83 | 7/2.14 |
| BV | 450/750V | 16 | 8.0 | 179 | 1.15 | 7/2.52 |
| BV | 450/750V | 25 | 10 | 281 | 0.727 | 19/7.18 |
| BV | 450/750V | 35 | 11.5 | 381 | 0.524 | 19/2.14 |
| BVR | 450/750V | 2.5 | 4.2 | 34.7 | 7.41 | 19/0.41 |
| BVR | 450/750V | 4 | 4.8 | 51.4 | 4.61 | 19/0.52 |
| BVR | 450/750V | 6 | 5.6 | 73.6 | 3.08 | 19/0.64 |
| BVR | 450/750V | 10 | 7.6 | 129 | 1.83 | 49/0.52 |
| BVR | 450/750V | 16 | 8.8 | 186 | 1.15 | 49/0.64 |
| BVR | 450/750V | 25 | 11.0 | 306 | 0.727 | 98/0.58 |
| BVR | 450/750V | 35 | 12.5 | 403 | 0.524 | 133/0.8 |
| BVR | 450/750V | 50 | 14.5 | 553 | 0.387 | 133/0.68 |
| BVR | 450/750V | 70 | 16.5 | 764 | 0.268 | 189/0.68 |
Dadi Energy Co., Ltd covers over 100, 000 square meters and has an assets more than 200 millions.
We have advanced production equipment and high quality production management teams. Our electric wire and cable are widely used on domestic and foreign markets with very good reputations.
We have a full range of products, including Low and medium voltage from 300V to 220KV electric wires, power cables, communication cables, photovoltaic solar cables, welding cables, ABC (Aerial Bundle Cable) cables, Speical Cables etc. These products comply to IEC DIN BS ASTM JIS and other standards.
Our company have passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupation health safety management system.
We have advanced production equipment and high quality production management teams. Our electric wire and cable are widely used on domestic and foreign markets with very good reputations.
We have a full range of products, including Low and medium voltage from 300V to 220KV electric wires, power cables, communication cables, photovoltaic solar cables, welding cables, ABC (Aerial Bundle Cable) cables, Speical Cables etc. These products comply to IEC DIN BS ASTM JIS and other standards.
Our company have passed ISO9001 quality management system, ISO14001 environmental management system, ISO45001 occupation health safety management system.
Our Products
Quality inspection
Packaging methods
Q1: How can I get the Quotation of the products?
Pls send your demand or specification to us or just E-mail our trade Manager, We'll reply to you within 2 hours in the Working days.
Q2: How could I get the Sample?
We are glad to offer you samples if we have it in stock.
The sample fee can be returned to you on your first time mass order (deduct from the total amount).
If you have a courier account or forwarder in China, we can send it your courier to collect samples.
Q3: I didn't find my needed model in this page. Do you provide OEM Project Service?
Surely , our factory could manufacturing more than10000 models, OEM & ODM order is warmly welcome and we can put your brand name (logo) on these products.
Q4: How long is the Delivery Time?
For Sample: 1-3 working days ;
For small orders: 3-10 working days;
For mass orders: 10-18 working days.
It is better to communicate with us if you are interested to place an order. It depends on your order quantity.
Q5: What are your payment terms?
Our payment term is usually 30% deposit in advanced, the balance T/T Before shipping.
