Basic Info.
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Motor
Siemens
Inverter
ABB for PVC Wire Conduit Machine
Contactor
Siemens
Key Words
PVC Cable Trunking Machine
PVC Ceiling Production Line
PVC Cable Trunking Machine
Name
PVC Cable Trunking Machine
Capacity
200-600kg/H
Extruder
Sjsz65/132 Sjsz51/105 Sjsz55/120
Other Product
PVC Cable Duct Extrusion Line
Main Product
PVC Wire Conduit Machine
Factory Experience
About 30 Years Experience
Main Business
PVC Cable Trunking Machine
Material
PVC Cable Duct Extrusion Line
Screw Barrel
Huaye
Transport Package
Wooden Box
Specification
SJSZ65/132 SJSZ51/105 SJSZ55/120
Trademark
Qiangsheng
Origin
Zhangjiagang City, China
HS Code
84772090
Production Capacity
200-300kg/H
Product Description
PVC Cable Duct Extrusion Line PVC Cable Trunking Machine
PVC Cable trunking extrusion line mainly produce all kinds size of PVC cable
trunking ,the die mould have one cavity and two cavities two kinds,then equipped with
corresponding auxiliary machines to complete the production line
1,Adopt imported brand electric appliances,frequency inverter regulation
2,The die mould can be one cavity,two cavities,four cavities.
3,The equipment is easy to operate,stable in quality and with high yield.
4,Trunking can be punched the grooves and other processed online.
Double-out PVC wire duct cable trunking extruder :
1.Double-out PVC wire duct cable trunking extruder is applied to produce U channel profile which used as PVC electrical cable trunking/cable duct.

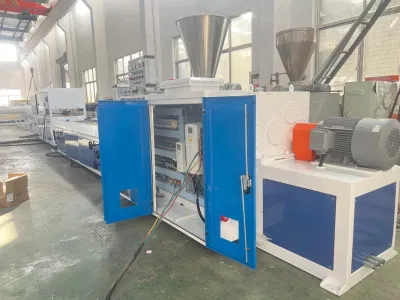

2.pvc cable wire duct extruder production line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.
3.Change different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc
2.pvc cable wire duct extruder production line is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.
3.Change different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc
| Host Model | SJSZ51 | SJSZ55 | SJSZ65 |
| Main motor | 18.5 | 30 | 37 |
| Screw type | 51/105 | 55/120 | 65/132 |
| Screw type | 2 | 2 | 2 |
| RPM | 38 | 38 | 38 |
| torque | 6100 | 7200 | 10300 |
| Max capacity | 100-150 | 150-180 | 200-280 |
| Center height | 1000 | 1000 | 1000 |
