Basic Info.
Model NO.
UL 1007
Material Shape
Round Wire
Range of Application
Heat Resistance
Certification
ISO9001, CCC, RoHS
Brand
Werlg
UL Certificate
UL 1007
Temperature
80 Centidegree
Voltage
300V
Core Number
Single Core
Colour
Red, Orange, Yellow, Brown, Purple, Black
Size
30 AWG
Transport Package
PE and Carton
Specification
ROHS, UL
Trademark
WERLG
Origin
Zhejiang China
HS Code
8544492100
Production Capacity
200000meters/Day
Product Description

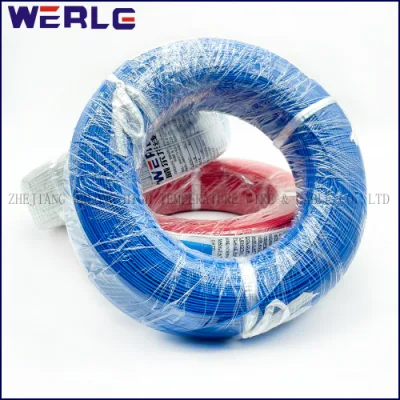

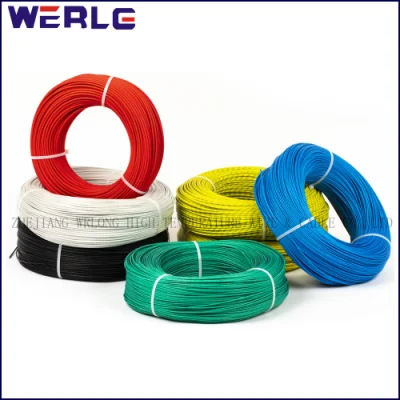

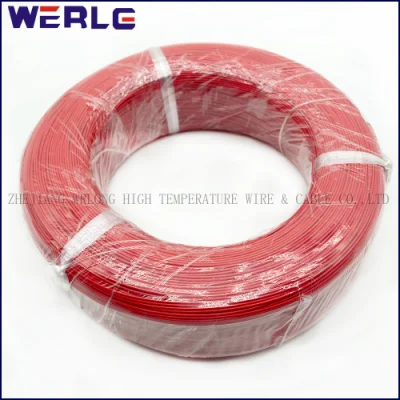

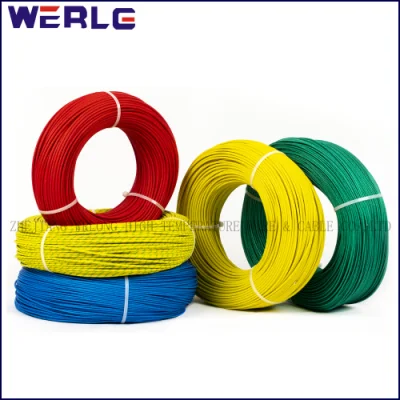

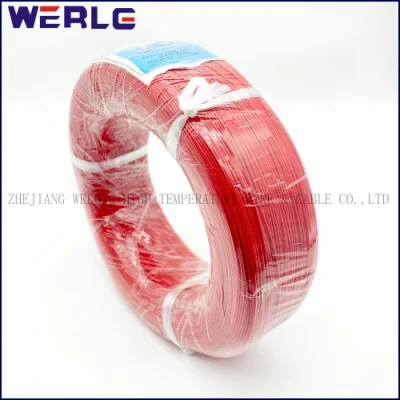

PVC XLPE Insulated Medium Voltage Low Voltage Copper Cable
TECHNICAL DATA
Rated voltage: 300V
Rated temperature:-40ºC~+80ºC
Conductor: Tinned or bare, strand or solid copper
Insulator: PVC
OD Tolerance: ±0.05mm
Colour: white, blue, red, black, brown, orange, purple, gray, yellow, green, transparent, yellow-green, etc
CHARACTERISTIC
Flexible, easy assemble, cold resistance, stable performance, UL 758, RoHs compliance.
APPLICATION
Apply to household appliance, illumination & lighting & headlamp, electric machines, temperature sensor, metallurgy chemical series, motor cars & ships, electrical installation.
| UL1007 | Conductor | Over Diamter ±0.05mm² | Insulator | Technical Data | Packing(m/roll) | ||||
| Size | Conductor Construction No./mm | Diameter mm | Material | Average Thickness mm | Colour | Temperature Range(ºC) | Nominal voltage | ||
| 32 AWG | 7/0.08 | 0.24 | 1.O5 | PVC | 0.403 | red,yellow, blue,green, black,white, purple,brown, orange, yellow-green, transparent | 80ºC | 300V | 610 |
| 30 AWG | 7/0.1 | 0.3 | 1.11 | PVC | 0.402 | 610 | |||
| 28 AWG | 7/0.127 | 0.38 | 1.19 | PVC | 0.401 | 610 | |||
| 26 AWG | 7/0.16 | 0.48 | 1.29 | PVC | 0.401 | 610 | |||
| 24 AWG | 11/0.16 | 0.61 | 1.42 | PVC | 0.404 | 610 | |||
| 22 AWG | 17/0.16 | 0.76 | 1.57 | PVC | 0.404 | 610 | |||
| 20 AWG | 26/0.16 | 0.94 | 1.75 | PVC | 0.404 | 305 | |||
| 18 AWG | 41/0.16 | 1.18 | 1.99 | PVC | 0.403 | 305 | |||
| 16 AWG | 26/0.254 | 1.49 | 2.29 | PVC | 0.397 | 305 | |||
| 14 AWG | 41/0.254 | 1.86 | 2.68 | PVC | 0.401 | 305 | |||
