ODM 11kw Obc+3kw DC/DC+PDU Landworld EV Passenger Car Power Supply Electric Vehicle

Landworld EV Passenger Car Power Supply Electric Vehicle - We are a factory specializing in the production of ODM 11kw Obc, 3kw DC/DC, and PDU for electric vehicles.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
LW3HD3KCB11KB-D14C380-W

Product Description

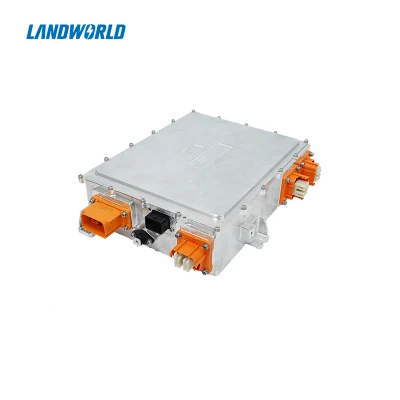

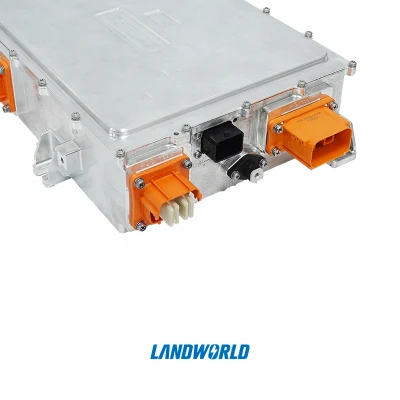

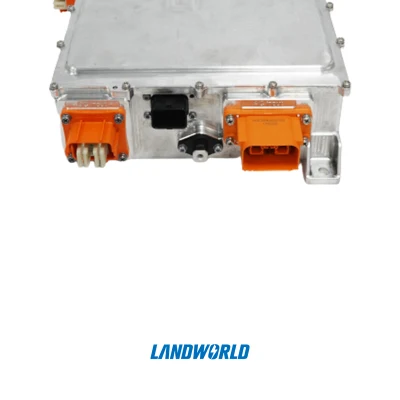

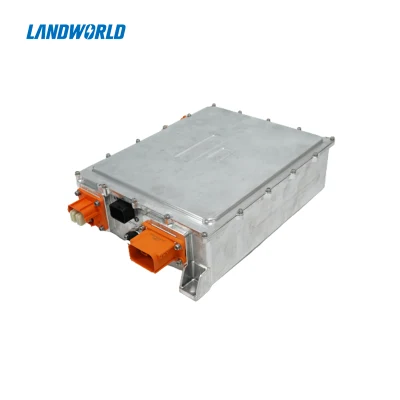

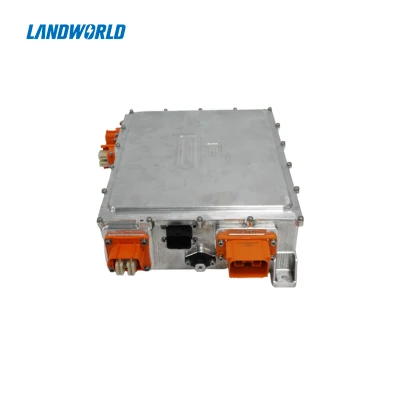

ODM 11kw Obc+3kw DC/DC+PDU Landworld EV Passenger Car Power Supply Electric Vehicle
Product Features:
  1. Body Size: 350x214x197mm
  2. Weight:≤18KG
  3. Cooling method:Liquid cooled, flow rate≥8L/min
  4. IP rating:IP67
  5. Support inverter function
  6. Support on-line upgrading and fault diagnosis
  7. Compatible with single and three phase charging station
  8. Full digital software design, Redundant protection function design
Main Technical Parameters
Items Technical Specification Remarks
  DCDC OBC
Nominal output power 2.5kW  6.6kW
Input Voltage 250-450Vdc 90-264Vac
Output voltage range 14Vdc 200-450Vdc
Voltage accuracy ±0.2Vdc ±1%
Output current 180A 20A
Current accuracy ±1% ±1%
EFF ≥94% ≥94%
Voltage ripple ≤500mVPK-PK \
Inverter features
Input voltage range 200-450Vdc
Output voltage 220Vac(±5%)/50Hz
Power 6.6kVA
Efficiency ≥93%
Output harmonics(THDv) <3%(LINERAR LOAD)
Dynamic response 60ms(LINERAR LOAD)
Leakage current protection threshold ≤30mA
Other Electrical Features
Operating temp. -40-80ºC/-40-65ºC Coolant inlet temperature
Low voltage wake-up 12/24Vdc(200mA WAKE_UP signal)/CAN,CC/CP,AC Wake up BMS/VCU
emc GB/T 18655-2010,EN 55022
Interface CC,CP,CC_Out,European standard and American Standard
