Basic Info.
Model NO.
TC-ER
Material Shape
Round Wire
Range of Application
Instrument and Equipment Cables
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Qingxin
Sample
Available
ODM
Available
OEM
Available
MOQ
Sample Order/Small Order Can Be Acceptable.
Warranty Period
24 Months
Service Life
30 Years
Transport
by Sea. Express. Air
Lead Time
10-15days
Core Type
Soft/Flexible
Core No.
2-41
Certificats
UL CCC CE ISO FCC SGS PSE SAA
Nominal Cross-Section
18AWG-10AWG
Tolerance Temperature
-20 Degrees Celsius to 90 Degrees Celsius
Transport Package
Roll
Specification
45CM*45CM*30CM 100m
Trademark
Qingxin
Origin
China
HS Code
854449210
Production Capacity
6000km/Month
Product Description
Product Description

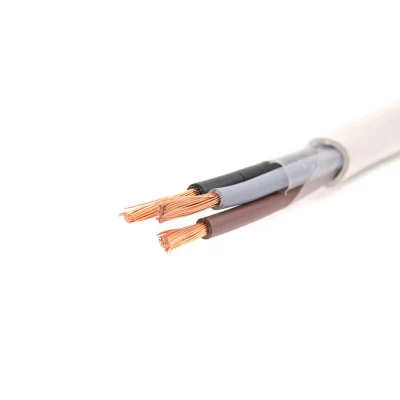

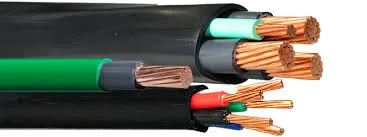

Flexible Power Control Tray Cables 600V UL type TC and TC-ER for stationary applications
1 APPLICATION
Flexible Power Control Tray Cables are the fabric of industrial control systems where cable tray systems are used for routing and cable support. We offer a complete line of UL listed tray cables for use in control systems, machinery, conveyors, control panels, assembly and production lines and processing equipment. Offered in both Unshielded and Shielded constructions and with a variety of jacket, insulation and approval combinations.
Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations
2 SPECIFICATIONS
UL 83 /UL1277 standard
Flame retardant insulation
PVC Rated for use at 90º C dry
PVC Rated for use at 75º C wet
Gasoline & Oil Resistant II
Color coded per method ICEA Method M-1
E-2 insulated conductors are twisted together
ARRA 2009 Section 1605 "Buy American" Compliant
3 CONSTRUCTION
Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request. Overall PVC Jacket. Heat, Moisture and Sunlight Resistant
4 Option
AWG 18 - 2/0
up to 41 conductors
| Size AWG | Strands No,/OD. (mm) | PVC Insulatior Average Thickness (mm) | Nylon Jacket Minimum Thickness (mm) | Approx, O.D (mm) | Max,DC Resistance (20ºC.Q/km) |
| 14 | 7/0.62 | 0.38 | 0.10 | 2.88 | 8.62 |
| 12 | 7/0.77 | 0.38 | 0.10 | 3.33 | 5.43 |
| 10 | 7/0.98 | 0.51 | 0.10 | 4.24 | 3.409 |
| 8 | 7/1.23 | 0.76 | 0.13 | 5.69 | 2.144 |
| 6 | 7/1.56 | 0.76 | 0.13 | 6.68 | 1.348 |
| 4 | 7/1.96 | 1.02 | 0.15 | 8.42 | 0.8481 |
| 2 | 7/2.47 | 1.02 | 0.15 | 9.95 | 0.5335 |
| 1 | 19/1.69 | 1.27 | 0.18 | 11.51 | 0.423 |
| 1/0 | 19/1.89 | 1.27 | 0.18 | 12.51 | 0.3354 |
| 2/0 | 19/2.13 | 1.27 | 0.18 | 13.71 | 0.266 |

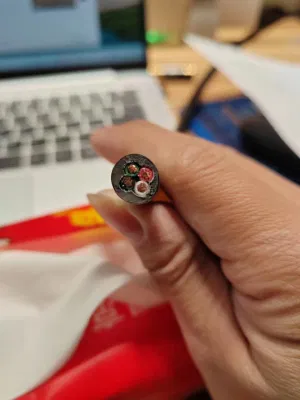

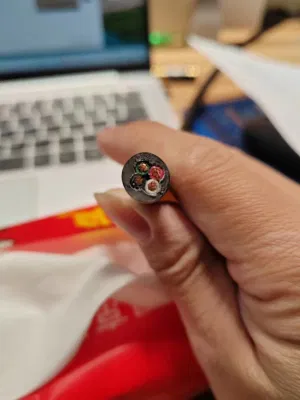

Products display
Application
* Automobile industry
* mechanical equipment control system
* Transport and conveyor systems
* Tool making machinery
* under 90º C dry 75º C wet environment
Factory display
Welcome to Qingdao Dadi Energy Co., Ltd. Our factory was established in 2017,located in Qingdao, China, specializing in manufacturing and selling wires and cables. We can offer customized service of high and low voltage cross-linked cables, long-life wires and cables, PVC insulated power cables, bare wires, sheathed wires, control cables, shielded cables, halogen-free low smoke wires and cables, rubber sheathed cables, and various types of flame retardant and fire-resistant cables and mineral insulated cables. Our wires and cables have been certified in 28 European countries and exported to over 100 countries and regions, comply with CCC and ISO9001 certificates. We have remained true to our core principles of customer service, on time delivery, uncompromised quality and exceptional value at competitive prices. Quality assurance, welcome to consult to negotiate!
