Basic Info.
Model NO.
SDI
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CCC, RoHS, SAA
Brand
QIFAN
Color
Brown, White, Red. Green
QC
200 Engineer
Warranty
25 Years
Transport Package
Reel or Drum
Specification
100m one reel
Trademark
Qifan
Origin
China
HS Code
8544492100
Production Capacity
500000km Per Month
Product Description

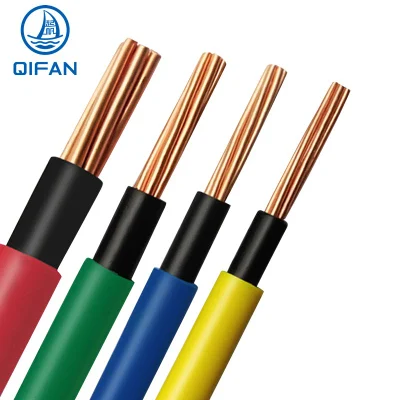

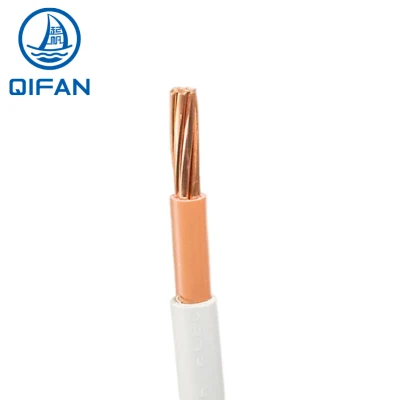

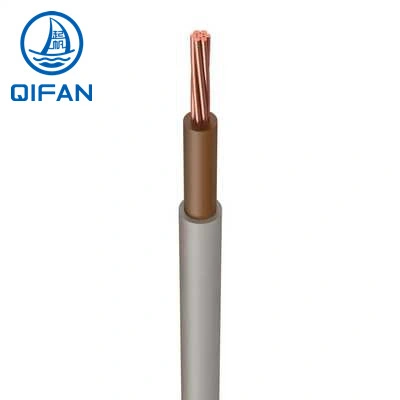

PVC Sdi Cable, 450/750 V, 1/C, Australian Cu/V-90/PVC Power Cable (AS/NZS 5000.2)
Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services
Construction:
1. Conductor - Plain annealed class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)
Cross Section:
1 core: 1.5~630mm2
Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation: White or according to customer requirements
Sheath: Red or according to customer requirements
Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)
Other sizes can also be produced as you required.
Application: Fire Resistant - Mains and Sub-Mains, Fire Alarm Systems, Essential Services
Construction:
1. Conductor - Plain annealed class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Cross-linked low-smoke halogen-free polyolefin compound (X-HF-110)
4. Outer sheath - Cross-linked low-smoke halogen-free polyolefin compound (HFS-110-TP)
Cross Section:
1 core: 1.5~630mm2
Temperature characteristics:
Conductor operating temperature: -40ºC~110ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Insulation: White or according to customer requirements
Sheath: Red or according to customer requirements
Standard:
Cable design: AS/NZS5000.1
Conductor: AS/NZS 1125
Fire resistant : AS/NZS3013 (WS52W)
| Cond. Area mm | Stranding No/mm | Insulation Thick mm | Sheath Thick mm | Nom.O/D mm | Min. Installed Bending Radius mm | Approx. Mass Kg/Km | Order Now |
| 1 | 1x1/1.13 | 0.6 | 0.8 | 4.1 | 20 | 30 | |
| 1.5 | 1x7/0.50 | 0.6 | 0.8 | 4.5 | 20 | 40 | |
| 2.5 | 1x7/0.67 | 0.7 | 0.8 | 5.2 | 25 | 55 | |
| 4 | 1x7/0.85 | 0.8 | 0.9 | 6.2 | 25 | 80 | |
| 6 | 1x7/1.04 | 0.8 | 0.9 | 6.8 | 30 | 100 | |
| 10 | 1x7/1.35 | 1 | 0.9 | 8.2 | 35 | 145 | |
| 16 | 1x7/1.70 | 1 | 1 | 9.4 | 40 | 225 |
Other sizes can also be produced as you required.
| Size | Conductor Strands | Insulation Thickness |
| 2x1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2 | 7/0.68mm | 0.7mm |
| 2x1.5mm2+1.5mm2 | 7/0.52mm | 0.6mm |
| 2x2.5mm2+2.5mm2 | 7/0.68mm | 0.7mm |
| 2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm | 0.8mm |
| 2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm | 0.8m |
------Our Feature------
- Imported equipment with experienced technical team
The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
