Product Description
Application:suitable for indoor or ourdoor surfacing wiring
Voltage: 300/500V
Conductor: solid/stranded annealed copper
Insulation: PVC
Sheath/Jacket:PVC
Copper conductor/PVC insulation
Volt 300/500V 450/750V
Electrical Wire Application:electric equipment, household, and electrical appliance

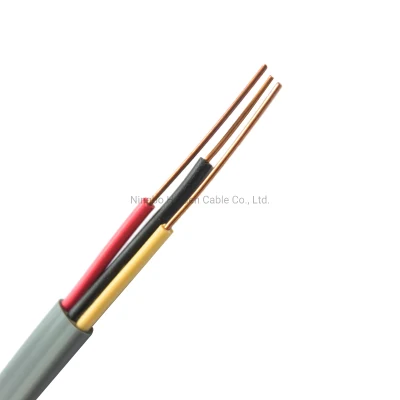

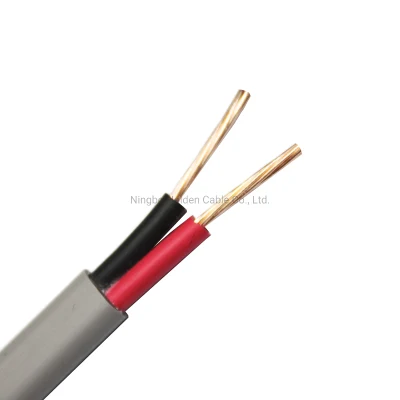

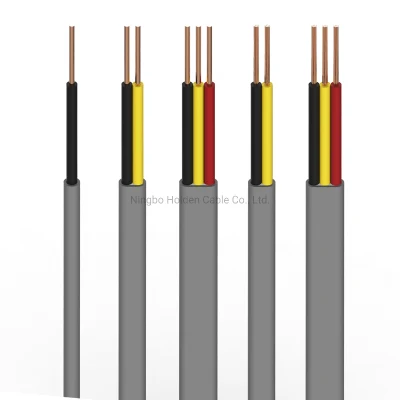

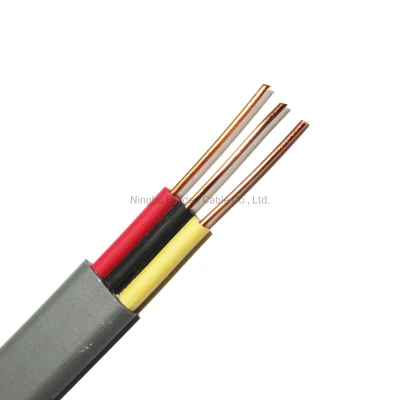

flat Wire type:
.Solid or stranded copper conductor, PVC insulated
and PVC sheathed flat electrical wire(two cores or three cores)
flat Wire working condition:
The long term working temperature should lower then 70°C.
Normal area (mm2) | Structure (mm) | Insulation thickness (mm) | Sheath thickness (mm) | Approx overall dia. (mm) |
3x1.5 | 22/0.3 | 0.8 | 1.1 | 5.5x11.6 |
3x2.5 | 36/0.3 | 0.9 | 1.2 | 6.4x13.9 |
3x4.0 | 56/0.3 | 1.0 | 1.3 | 7.1x16.1 |
3x6.0 | 84/0.3 | 1.1 | 1.4 | 8.0x16.0 |
3x10.0 | 80/0.4 | 1.3 | 1.6 | 10.0x23.4 |
3x16.0 | 126/0.4 | 1.4 | 1.8 | 11.4x27.0 |
3x25.0 | 196/0.4 | 2.0 | 2.2 | 15.0x35.4 |
3x35.0 | 276/0.4 | 2.1 | 2.2 | 18.5x45.7 |
3x1.5 | 22/0.3 | 0.8 | 1.5 | 10.0 |
3x2.5 | 36/0.3 | 0.9 | 1.5 | 11.0 |
3x4.0 | 56/0.3 | 1.0 | 1.6 | 13.0 |
3x6.0 | 84/0.3 | 1.0 | 1.6 | 14.6 |
3x10.0 | 80/0.4 | 1.0 | 2.0 | 18.0 |
3x16.0 | 126/0.4 | 1.2 | 2.0 | 22.0 |
3x25.0 | 196/0.4 | 1.4 | 2.5 | 23.5 |
3x35.0 | 276/0.4 | 1.5 | 2.5 | 27.0 |
1. Are you a factory or trading company?
We are a cable factory over 15 years, works with everything from the raw material to the finished product
2. Where is your factory?
Our factory is located in Shaoxing and Hangzhou
3. How can I get some samples?
We are honored to offer you samples for quality evaluation.
4. How does your factory do on quality control?
You order will be test 100% before packing and shipping or you also can arrange your QC department
5. What your delivery date?
15-30days after your kind deposit
6. Can you printing our logo on cable or packing?
Yes, available.
