Basic Info.
Material Shape
Round Wire
Range of Application
Underground
Certification
ISO9001, CE, CCC
Brand
Chunbin
Rated Voltage
450/750V
Number of Cores
1/2/3/4
Insulation
PVC
Packing
Roll
Conductor
Copper
MOQ
1000 Meters
Length
Lengths Customize
Product Name
Building Wire
Rated Temperature
70′c
Transport Package
Cartons, Wooden Wheels, Soft
Trademark
Chunbin
Origin
Luoyang, Henan
Production Capacity
30, 000m/Week
Product Description

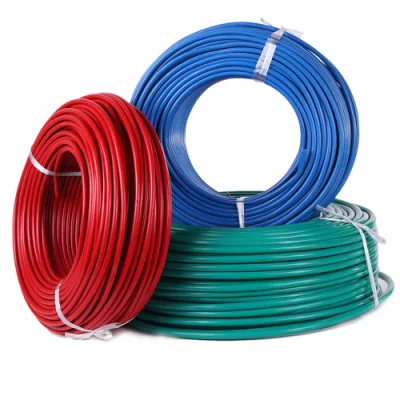

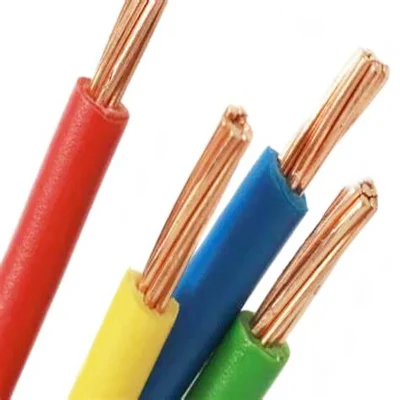

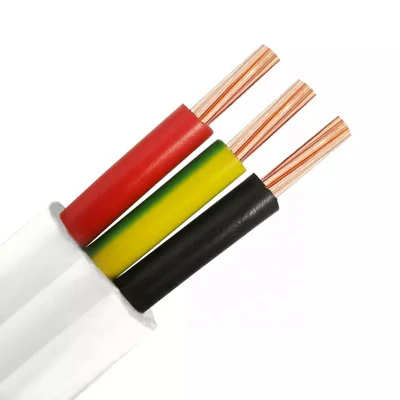

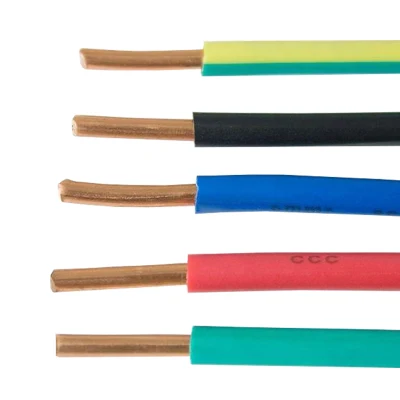

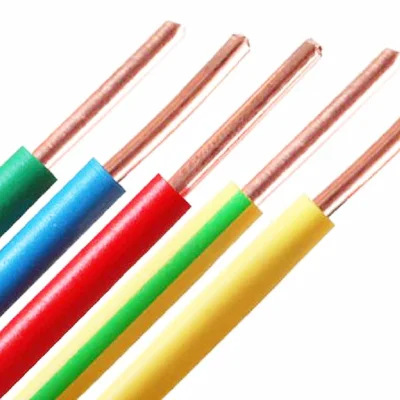

Manufacturers directly supply BV THW THHN wires and cables copper wire 2.5mm 4mm 10mm 16mm PVC insulated cable wire
Product Description
| Conductor | Copper |
| Insulation | PVC |
| Application | Power lighting, daily electrical appliances, |
| Rated Voltage | 450/750V |
| Number of Cores | One Core or Multi-Cores |
| MOQ | 1000 Meters |
Product description:
BV wire is a single-core copper wire, hard wire, generally used in fixed places. Suitable for cables and wires for AC voltage
300~500/450~750V and below power plants, home decoration, household appliances, meters and telecommunication equipment.
Oxygen-free Copper:
High conductivity, low loss, strong current load capacity, saving power and worry
Parameter
| Section mm^2 | Class of Conductor | Insulation Thickness mm | Overall Diameter mm | Cable Weight kg/km | Electrical Resistance DC.20ºC Ω/km |
| H05V-U | |||||
| 0.75 | 1 | 0.6 | 2.2 | 11 | 24.5 |
| 1 | 1 | 0.6 | 2.6 | 14 | 18.1 |
| H07V-U | |||||
| 1.5 | 1 | 0.7 | 3.2 | 19 | 12.1 |
| 2.5 | 1 | 0.8 | 3.9 | 30 | 7.41 |
| 4 | 1 | 0.8 | 4.4 | 45 | 4.61 |
| 6 | 1 | 0.8 | 5 | 3.08 | |
| 10 | 1 | 1.0 | 6.4 | 107 | 1.83 |
Packing & Delivery
Package: Generally, pack in rolls or wooden drums. Accept customized service for free.
Rolls, Wooden Drums, Steel Drums, Reels
Delivery: Both 20GP container and 40GP container are supplied.
Air transportation, Sea transportation, Express delivery.
Air transportation, Sea transportation, Express delivery.
Our Factory
Chunbin Cable Group Co.,Ltd. was founded in 1989.it has five core subsidiaries,including copper processing,PVC cable pellets production and more than 50 cooperative enterprises,With more than 600 sales outlets nationwide.It is a specialized company integrating R&D manufacturing and sales.
Our company mainly produces:mineral insulated cable,photovoltaic cablecharging pile cable,OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, pvc insulated power cable,aluminum alloy cable,fire resistant cable,flame retardant cable,control cable. overhead insulated cable, low-smoke halogen-free cable,rubbercable,mining cable,aluminum stranded wire and steel core aluminum stranded wire,PVC insulated wire and cord,shielded monitoring line, protection More than 50 varieties, more than 1000 specifications,such as line,agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.
Certifications
Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.
FAQ
1.Are you a factory or trade company ?
We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.
2.Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.
3.When I want customized products, how to do?
Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs.
4.Can you send a sample for us to test?
If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.
5.If we want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
6.When you arrange delivery after we place an order ?
Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.
7.After I pay, what about shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
