Basic Info.
Model NO.
Electric wire
Material Shape
Round Wire
Range of Application
High Temperaturue Wire, Flame Resistant
Certification
ISO9001, RoHS
Produceing Experience
15 Years
Customized
Yes
OEM
Yes
Size
0.35mm, 0.5mm, 1.0 1.5mm 2.5mm....to 6.0mm2
Color
Red, Blue, Green, Balck, Yellow, Orange, ......
AWG
AWG24 22 #20 18 16 14 12 10 8AWG
Transport Package
100m Per Roll and Carton
Specification
GJB IEC UL
Trademark
Wellde Kable
Origin
Henan
HS Code
8544309000
Production Capacity
500km Per Month
Product Description

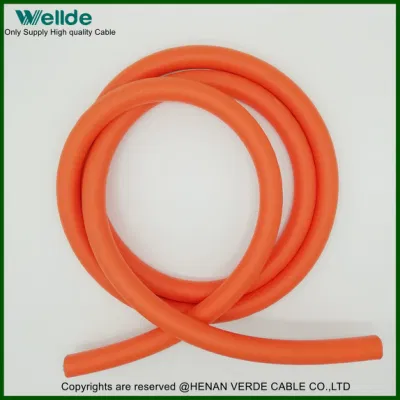

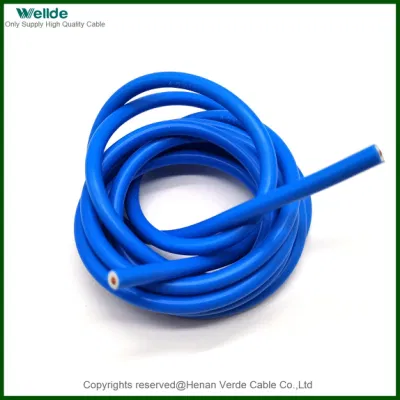

PVC or Silicone or PFA Insulated High Temperauter Electric Wire Electrical Cable As per Customer's Customization
Heating Resisting cable High Temperature Resistant Wire Cable
For Speical Equipment and Instruments
Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;Flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC
Conductor: Tinned copper or Silver-plated copper
Insulation:PVC , FEP, PFA , PTFE or Silicone according to customer's request
Color:Red yellow blue green white black orange purple brown
Technical Specification List (You can also customize your specification) for Teflon Insulated Wire
Q&A:
1. Q:How to choose the sheath type of spiral cable?
A.:There are four commonly used sheath types, PUR, PVC, TPE, TPEE.
The PUR sheath has good elasticity, softness, good mechanical properties, good resilience, and is not easy to deform. The price of PVC sheath is cheap, if you do not have high requirements for the resilience of the wire, you can choose PVC sheath. The TPE sheath is super soft, and the temperature range is -40ºC~+80ºC, but its disadvantage is that it is not resistant to oil and its mechanical properties are not as good as PUR. Its price is lower than PUR and higher than PVC. TPEE has good temperature resistance. The temperature range is -40ºC to +100ºC. It has good resilience and mechanical properties, but it is not soft enough and the price is higher than PUR.
2. Q.:Are you a factory or trading company?
A: We are a factory, and we establised in 2007.
3. Q: What kind of electric wire and cable do you produce?
A: We produces various kinds of Electric wire and Power cable: PVC Cable, XLPE Cable, Control Cable, Flexible Cable, Spiral Cable, Signal Cable, Data Cable(Cat6, Cat5e,Patch cord),High temperature Silicone wire and High temperature PFA PTFE Wire Cable, Rubber Cable, Elevator cable, Crane cable, Solar cable and different industrial Cables, Conductor (AAC, ACSR, AAAC, Bare copper conductor and Stay wire)
4. Q: Is sample supplied if requested?
A: Yes!
5. Q: What certificates do you have?
A: We have been qualified with IEC, CCC, CE, RoHS.
6. Q.:Which markets do you mainly involve in?
A: Our products have been exported mainly to Philippines, Singapore, Indonesia, Malaysia, Pakistan, Vietnam, UAE, Saudi Arabia, USA, UK, Russia, Poland, France, Hungary, Australia, Kenya, Nigeria, South Africa, Zambia, Angola, Tanzania, Mexico, Guatemala, Nicaragua.
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
HENAN VERDE CABLE CO.,LTD
VERDE XLPE CABLE LIMITED
Focus on Special Wires and Cables
Be Your Most Reliable Supplier
Heating Resisting cable High Temperature Resistant Wire Cable
For Speical Equipment and Instruments
Application:
Aerospace field,Electronic industry, Internal wiring of electric motor,electric appliance,instrument with rated voltage 600V and below.It can be used in temperature compensating wire, low temperature-resist wire, high temperature heat wire, aging-resistance wire and fire-resist wire;Household appliances industry, It can be used in air-conditioning equipment, micro-wave oven, electric disinfectant cupboard, electric cooker, electric thermos, electric heater, electric oven, lamps and lanterns in their inner wire and so on.
Product features:
Good corrosion-resistance,almost doesn't melt any organic imp regnant,Oil-resistance,strong acid-resistance, strong alkali-resistance,oxidant-resistance and so on.Bear the good electric insulated capability, high voltage-resist,moisture-resistance,high insulation resistance;Flame-retardant, Anti-ageing, long age of usage
Rated voltage:600V and below
Test of power-frequency withstand voltage:3000V
Temperature range:-65~+250ºC
Conductor: Tinned copper or Silver-plated copper
Insulation:PVC , FEP, PFA , PTFE or Silicone according to customer's request
Color:Red yellow blue green white black orange purple brown
Technical Specification List (You can also customize your specification) for Teflon Insulated Wire
| Conductor Nominal Section(mm2) | Conductor Construction (No/mm) | Average. Insulation Thickness (mm) | Calculated. Outer Diameter (mm) | D.C.Conductor resistance at 20ºC(Ω/km) | |
| Tinned copper | Silver coated copper | ||||
| 0.035 | 7/0.08 | 0.20 | 0.64 | 562 | 550 |
| 0.05 | 10/0.08 | 0.30 | 0.90 | 383 | 370 |
| 0.06 | 7/0.10 | 0.30 | 0.90 | 348 | 339 |
| 0.08 | 7/0.12 | 0.30 | 0.96 | 286 | 280 |
| 0.10 | 7/0.14 | 0.30 | 1.02 | 157 | 150 |
| 0.12 | 7/0.15 30/0.07 | 0.30 | 1.05 | 152 | 145 |
| 0.14 | 7/0.16 19/0.10 | 0.30 | 1.08 | 136 | 130 |
| 0.15 | 30/0.08 | 0.30 | 1.10 | 111 | 105 |
| 0.20 | 7/0.02 19/0.12 | 0.30 | 1.20 | 87 | 82 |
| 0.35 | 19/0.16 | 0.30 | 1.40 | 57 | 54 |
| 0.50 | 19/0.18 | 0.30 | 1.50 | 40 | 37.5 |
| 0.80 | 19/0.23 | 0.32 | 1.79 | 24 | 23 |
| 1.00 | 19/0.26 | 0.35 | 2.00 | 21 | 20 |
| 1.20 | 19/0.28 | 0.45 | 2.30 | 19 | 18 |
| 1.50 | 19/0.32 | 0.45 | 2.50 | 13 | 12 |
| 2.00 | 19/0.37 | 0.45 | 2.75 | 10 | 9 |
| 2.50 | 37/0.30 | 0.55 | 3.20 | 8 | 7 |
3.00 | 37/0.32 | 0.68 | 3.60 | 6.8 | 6.4 |
