Product Description

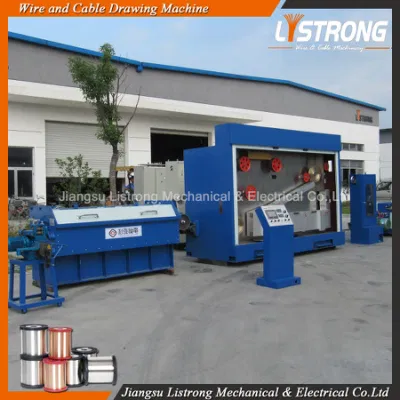

Listrong 0.8-2.8mm Medium Wire Drawing Machine with Continuous Annealing
| Model | 17DCT |
| Usage | Bare copper wire drawing |
| Inlet diameter | Φ3.0mm-Φ3.5mm |
| Outlet diameter | Φ0.8-2.8mm Or Φ0.5-2.0mm |
| Quantity of drawing dies | 17 |
| Slip ratio of main machine | 18% |
| Slip ratio of last die | 12.5% |
| Correction system | Automatically control |
| Max. Drawing speed | 20m/s |
| Using motor/ main motor | 45KW |
| Dynamic control | Double frequency converters control |
| Operation direction | Right hand machine (from Left to right) |
| Colour | As customer's need |
| Brand | Listrong or OEM |
| Voltage | 380V or Customized |
| Brake | Pneumatic brake |
1.The design of the whole machine is apply human and mechanical engineering principal, reasonable and reliable in structure and easy operated.
2.The medium wire drawing machine is developed and designed based on sophisticated technology abroad. The transmission part of the main machine applied the high precision sturdy helical gear, the gear is using high precise grinding craft, which ensure the high precision and low noise of the machine.
3.Complete immersed cooling method ensures the sufficient immersed of wire and drawing die in the drawing lubricant, which not only help to get good surface of the wire, but also prolong life span of the drawing die and capstan. The drawing capstan and fix speed capstans are tungsten coated.
Listrong Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Listrong has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Listrong persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximal value for the community as well as for clients.
Q: Are you a manufacturer or trade company?
A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime.
Q:Where is your factory located?
A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport.
Q: How many years are your company engaged in the wire drawing machine?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can you send your engineer to my country for machine installation, worker training?
A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: 12 months since the date of dispatching from our factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. We will arrange all the customs clearances in advance for you.
If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable price.
