Listrong 1.7-3.0mm Copper Wire Electric Cable High Speed Automatic Making Machine

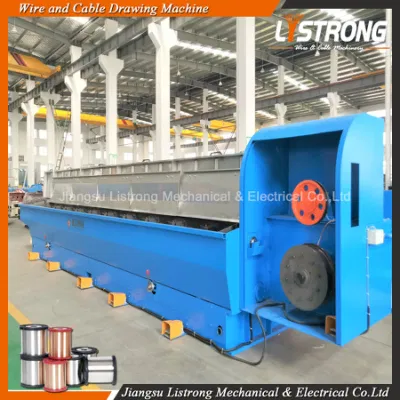

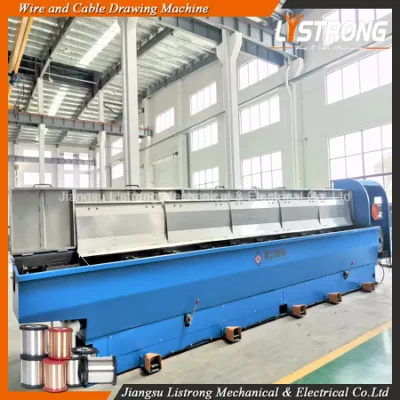

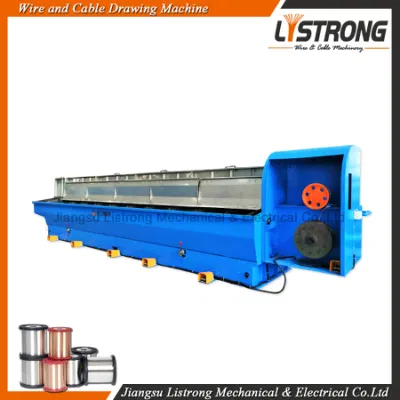

    Listrong 1.7-3.0mm Copper Wire Drawing Machine

Model	LHD400-11D
Inlet diameter	Φ8.0mm
Outlet diameter	Φ1.7mm-Φ3.0mm
Max. annealing speed	15m/s
Die size	Φ45*30mm
Drawing pass	11
Diameter of drum	Φ400mm
Total noise	<80db

As we set final die's size through the PLC,the dies will be fully automatically showed on the monitor.

The driving motors of drawing and final capstan will synchronously controlled to gain 2% below drawing slip ratio.

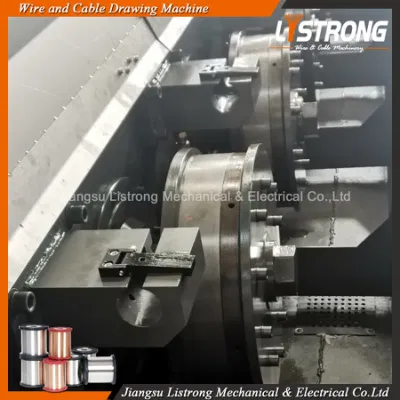

The rapid dies change system does not need to change all the dies in working but te final one,which saves a lot of time.




Listrong Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Listrong has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Listrong persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximal value for the community as well as for clients.
