Basic Info.
Model NO.
CLY630-CLY1600
Certification
RoHS, ISO, CE, SGS
Warranty
12 Months
Automatic Grade
Automatic
Mould Life
300,000-1,000,000 Shots
Type
High-speed Stranding Machine
Single Strand Diameter
6.0~45.0mm
Maximum Stranding Diameter
100mm
Cage Speed
4.3~9.6r/Min
Stranding Pitch
447~7604mm
Traction Speed
4.3~32.7m/Min
Speed Changer
36 Stages
Pay-off Bobbin
Pn1600
Take-up Bobbin
Pn1250~Pn2500
Central Height
1000mm
Colour
Customized
Motor
Siemens
Transport Package
Standard International Shipment Packing
Specification
customized
Trademark
CP
Origin
Foshan
HS Code
8479400000
Production Capacity
3 Sets/Month for Cable Machine
Packaging & Delivery
Package Size
160.00cm * 200.00cm * 200.00cm
Package Gross Weight
100000.000kg
Product Description
Main components
1.1250/1+6-bobbin twister
Advantage
1.1250/1+6-bobbin twister

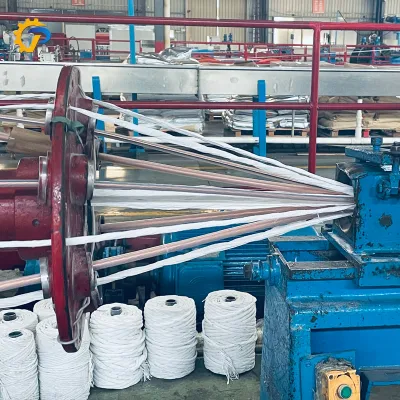

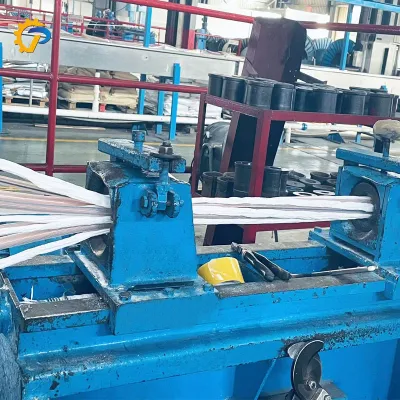

2.Wire-stranded die holder

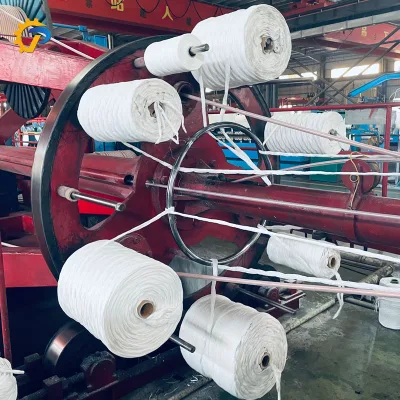

3.Φ600 Non-metallic wrapping device
4.Meter counting
5.1600 Two wheeled device with single-power
6.2600Portal pay-off and take-up stand
7.Electric control system
Advantage
1.Mechanical friction control for wire tension, adjustable in size
2.The material of the bow plate is stainless steel, and all wire turns are made of wire wheels, which will not damage the surface of the cable
3.Fully enclosed protective cover, axial push pull structure, safety travel switch protection, with interlocking function with the host
4.Best after-sales service.Will give our service within 2 days.
5.Will give you professional instruction to how to manage these machines.
6.Good quality for testing.
7.Can strand cable very fast.Cage speed can be 50r/min.
4.Best after-sales service.Will give our service within 2 days.
5.Will give you professional instruction to how to manage these machines.
6.Good quality for testing.
7.Can strand cable very fast.Cage speed can be 50r/min.

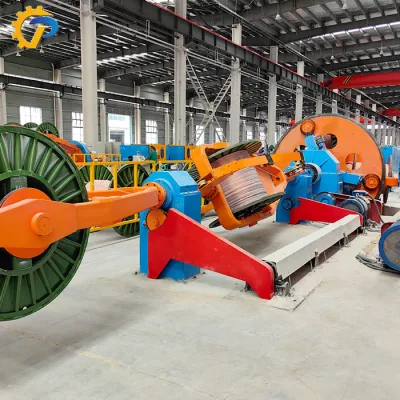

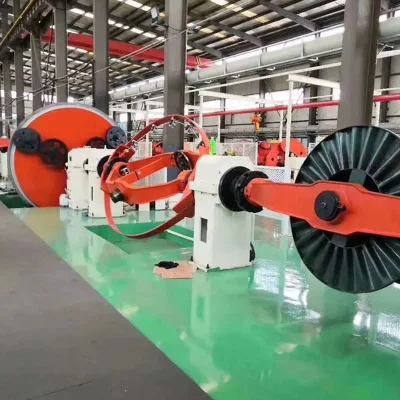

| This machine is widely used in the various sections of the three core, four core, five core plastic power cables, XLPE cable (cross-linked polyethylene cable) and armored cable. The shape of the wire core can be round-shaped, fan-shaped and W-shaped. | |||||
| Model Main Specification | CLY800 | CLY1000 | CLY1250 | CLY1400 | CLY1600 |
| Single Wire Diameter | 5mm-15mm | 6mm-22mm | 6mm-25mm | 6mm-30mm | 6mm-45mm |
| Max Stranded Diameter | 45mm | 50mm | 60mm | 70mm | 100mm |
| Stranding Pitch | 50-1500mm | 80-2900mm | 120-4900mm | 240-4200mm | 440-7600mm |
| Cage Rotate Speed | 60RPM | 25RPM | 21RPM | 15RPM | 9RPM |
| Max Line Speed | 36m/min | 32m/min | 38m/min | 29m/min | 32m/min |
| Pay Off Drum Size In Cage | PN800 | PN1000 | PN1250 | PN1400 | PN1600 |
| Central Pay Off Drum Size | PN800 | PN1000 | PN1250 | PN1400 | PN1600 |
| Take Up Drum Size | PN800-1600 | PN1000-2000 | PN1000-2000 | PN1250-2500 | PN1600-3150 |
Guangdong Chipeng Electrical Technology Co.,Ltd has three factories, covers an area of 120000 square meters.They are located in Nanhai District, Foshan. Our company has a technical administration team who engages wire and cable equipment industrial more than ten years, as well as experienced engineer and skilled workers. Our company focuses on innovation and R & D of electrical machinery.Our products include cable laying up machine , cable stranding machine , cable extrusion machine and auxiliaries .We not only in the domestic sales, but also far sales in Asia, Southeast Asia, Africa and so on.
Q1.Are you the manufacturer or trading company?
-A:We are the manufacturer.Our company has a technical administration team who
engages wire and cable equipment industrial more than ten years.
Q2.What is your company's main production?
-A:Our main production cable laying up machine, stranding machine,cable extrusion machine.
Q3.how can i get quotation and make order?
-A:Send us your requests,we will quote exactly cost.
Q4.How long will the delivery time take?
-A:About 80 days
Q5.How is the after-sales service of your company?
-A:We have a strong after-sales service team to provide super after-sales service, We can send out ourengineers without 2 days to solve customer's problem.
Q6.What is your machine quality?
-A:We have a strong quality inspection team.Before shipping out machine,we will check and ensure the good quality
