Basic Info.
Model NO.
Cable & wire
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE
Model
Yjv Yjlv Bvr BVVB
Brand
OEM
Rated Voltage
300/500V 0.6/1kv
Sample
Freely Sample
Color
Black, Red Green
Packing
Wooden Drum
Conductor
Aluminum/Copper
Average Lead Time
off-Season: Within 15 Day(S) Peak-Season: Within 1
Transport Package
Inner Packing: Wooden Drum, Iron Wooden Drum, Iron
Specification
BS IEC ASTM DIN
Trademark
OEM
Origin
Zhengzhou Henan, China
HS Code
8544601200
Production Capacity
300000km Per Month
Packaging & Delivery
Package Size
1100.00cm * 400.00cm * 600.00cm
Package Gross Weight
500.000kg
Product Description

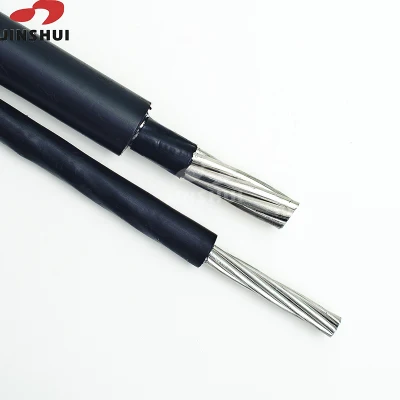

Aerial Bundled Cable
Low-voltage ABC cable, designed for overhead power lines and room entrance wires with a rated AC pressure of 1kv and below. It has less installation, maintenance, and operating costs, which can achieve greater economic loss and provide higher security and reliability.
Specification
Duplex Service Drop-Aluminum Conductor
| Code | Phase Conductor | Bare Neutral Messenger | Weight Per | Rating(Amps) | ||||||
| Name | 1000 ft(lbs) | |||||||||
| Size | Strand | Insulation | Size | *Strand | Breaking | XLP | POLY | XLP | POLY | |
| AWG | thickness | AWG | strength | |||||||
| (MLS) | (lbs) | |||||||||
| AAC | ||||||||||
| Pekingese | 6 | solid | 45 | 6 | 7/w | 563 | 63.5 | 61.7 | 70 | 70 |
| Collie | 6 | 7/w | 45 | 6 | 7/w | 563 | 66.8 | 63.1 | 70 | 70 |
| Dachshund | 4 | solid | 45 | 4 | 7/w | 881 | 95.5 | 93.4 | 90 | 90 |
| Spaniel | 4 | 7/w | 45 | 4 | 7/w | 881 | 101 | 95.4 | 90 | 90 |
| Doberman | 2 | 7/w | 45 | 2 | 7/w | 1,350 | 153 | 145.7 | 120 | 120 |
| Malemute | 1/0 | 19/w | 60 | 1/0 | 7/w | 1,990 | 243 | 234.2 | 160 | 160 |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Setter | 6 | solid | 45 | 6 | '6/1 | 1.19 | 75 | 73.2 | 70 | 70 |
| Shepherd | 6 | 7/w | 45 | 6 | '6/2 | 1.19 | 78.3 | 74.6 | 70 | 70 |
| Eskimo | 4 | solid | 45 | 4 | '6/3 | 1.86 | 114 | 111.6 | 90 | 90 |
| Terrier | 4 | 7/w | 45 | 4 | '6/4 | 1.86 | 119 | 113.6 | 90 | 90 |
| Chow | 2 | 7/w | 45 | 2 | '6/5 | 2.85 | 182 | 174.7 | 120 | 120 |
| Bull | 1/0 | 19/w | 60 | 1/0 | '6/6 | 4.38 | 289 | 280.3 | 160 | 160 |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Chihuahua | 6 | solid | 45 | 6 | 7/w | 1,110 | 67.6 | 65.8 | 70 | 70 |
| Vizsla | 6 | 7/w | 45 | 6 | 7/w | 1,110 | 70.9 | 67.2 | 70 | 70 |
| Harrier | 4 | solid | 45 | 4 | 7/w | 1,760 | 102 | 99.9 | 90 | 90 |
| Whippet | 4 | 7/w | 45 | 4 | 7/w | 1,760 | 107 | 101.9 | 90 | 90 |
| Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 2,800 | 163 | 156.2 | 120 | 120 |
| Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 4,460 | 259 | 250.8 | 160 | 160 |
Triplex Service Drop-Aluminum Conductor
| Code | Phase Conductor | Bare Neutral Messenger | Weight Per | Ampacity (Amps) | |||||||
| Name | 1000 ft(lbs) | ||||||||||
| Size | Stranding | Insulation | Size | Stranding | Breaking | XLP | POLY | XLP | POLY | ||
| AWG | thickness | AWG | strength | ||||||||
| (MLS) | (lbs) | ||||||||||
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Minex | 6 | solid | 45 | 6 | 7 | 1,110 | 106.6 | 102.9 | 85 | 70 | |
| Hippa | 6 | 7/w | 45 | 6 | 7 | 1,110 | 113.2 | 105.7 | 85 | 70 | |
| Prawn | 4 | solid | 45 | 4 | 7 | 1,760 | 158.4 | 154.1 | 115 | 90 | |
| Barnacles | 4 | 7/w | 45 | 4 | 7 | 1,760 | 168.3 | 158.2 | 115 | 90 | |
| Shrimp | 2 | 7/w | 45 | 2 | 7 | 2,800 | 253.7 | 239.7 | 150 | 120 | |
| Gammarus | 1/0 | 7/w | 60 | 1/0 | 7 | 4,460 | 411.7 | 386 | 205 | 160 | |
| Leda | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 402.7 | 386 | 205 | 160 | |
| Dungenese | 2/0 | 7/w | 60 | 2/0 | 7 | 5,390 | 506.8 | 476.3 | 235 | 185 | |
| Cyclops | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 495.3 | 476.3 | 235 | 185 | |
| Flustra | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 611.4 | 589.1 | 275 | 215 | |
| Lepas | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 757.1 | 730.5 | 315 | 245 | |
| 6201 ALLOY REDUCED NEUTRAL-MESSENGER | |||||||||||
| Artemia | 4 | solid | 45 | 6 | 7 | 1,110 | 141.4 | 137.1 | 115 | 90 | |
| Crab | 4 | 7/w | 45 | 6 | 7 | 1,110 | 151.3 | 141.2 | 115 | 90 | |
| Solaster | 2 | 7/w | 45 | 4 | 7 | 1,760 | 226.6 | 212.6 | 150 | 120 | |
| Sandcrab | 1/0 | 7/w | 60 | 2 | 7 | 2,800 | 368.8 | 343.1 | 205 | 160 | |
| Echinus | 1/0 | 19/w | 60 | 2 | 7 | 2,800 | 358.8 | 343.1 | 205 | 160 | |
| Crayfish | 2/0 | 7/w | 60 | 1 | 7 | 3,530 | 452.6 | 422.5 | 235 | 185 | |
| Sipho | 2/0 | 19/w | 60 | 1 | 7 | 3,530 | 441 | 422.5 | 235 | 185 | |
| Fulgar | 3/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 543.4 | 521.1 | 275 | 215 | |
| Arca | 4/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 671.2 | 644.6 | 315 | 245 | |
| AAC NEUTRAL-MESSENGER | |||||||||||
| Haiotis | 6 | solid | 45 | 6 | 7 | 563 | 102.5 | 98.8 | 85 | 70 | |
| Patella | 6 | 7/w | 45 | 6 | 7 | 563 | 109.1 | 101.6 | 85 | 70 | |
| Fusus | 4 | solid | 45 | 4 | 7 | 881 | 151.9 | 147.6 | 115 | 90 | |
| Oyster | 4 | 7/w | 45 | 4 | 7 | 881 | 161.8 | 151.7 | 115 | 90 | |
| Clam | 2 | 7/w | 45 | 2 | 7 | 1,350 | 243.2 | 229.2 | 150 | 120 | |
| Murex | 1/0 | 7/w | 60 | 1/0 | 7 | 1,990 | 395.1 | 369.4 | 205 | 160 | |
| Purpura | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 386.1 | 369.4 | 205 | 160 | |
| Nassa | 2/0 | 7/w | 60 | 2/0 | 7 | 2,510 | 485.8 | 455.3 | 235 | 185 | |
| Melita | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 585.2 | 562.9 | 275 | 215 | |
| Portunus | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 723.9 | 697.3 | 315 | 245 | |
| Nannynose | 336.4 | 19/w | 80 | 336 | 19 | 6,146 | 1160 | 1118 | 420 | 325 | |
| WITH FULL SIZE ACSR MESSENGER | |||||||||||
| Paludina | 6 | solid | 45 | 6 | '6/1 | 1,190 | 114 | 113 | 85 | 70 | |
| Voluta | 6 | 7/w | 45 | 6 | '6/1 | 1,190 | 120 | 113 | 85 | 70 | |
| Whelk | 4 | solid | 45 | 4 | '6/1 | 1,860 | 169 | 165 | 115 | 90 | |
| Periwinkle | 4 | 7/w | 45 | 4 | '6/1 | 1,860 | 176 | 172 | 115 | 90 | |
| Conch | 2 | 7/w | 45 | 2 | '6/1 | 2,850 | 267 | 261 | 150 | 120 | |
| Neritina | 1/0 | 7/w | 60 | 1/0 | '6/1 | 4,380 | 530 | 419 | 205 | 160 | |
| Cenia | 1/0 | 19/w | 60 | 1/0 | '6/1 | 4,380 | 426 | 416 | 205 | 160 | |
| Runcina | 2/0 | 7/w | 60 | 2/0 | '6/1 | 5,310 | 530 | 519 | 235 | 185 | |
| Triton | 2/0 | 19/w | 60 | 2/0 | '6/1 | 5,310 | 526 | 514 | 235 | 185 | |
| Cherrystone | 3/0 | 7/w | 60 | 3/0 | '6/1 | 6,620 | 656 | 643 | 250 | 200 | |
| Mursia | 3/0 | 19/w | 60 | 3/0 | '6/1 | 6,620 | 650 | 638 | 250 | 200 | |
| Razor | 4/0 | 7/w | 60 | 4/0 | '6/1 | 8,350 | 814 | 799 | 315 | 245 | |
| Zuzara | 4/0 | 19/w | 60 | 4/0 | '6/1 | 8,350 | 805 | 792 | 315 | 245 | |
| Limpet | 336.4 | 19/w | 80 | 336 | '6/1 | 8,680 | 1209 | 1167 | 420 | 325 | |
| WITH ACSR REDUCED SIZE MESSENGER | |||||||||||
| Scallop | 4 | Solid | 45 | 6 | '6/1 | 1,190 | 148 | 144 | 115 | 90 | |
| Strombus | 4 | 7/w | 45 | 6 | '6/1 | 1,190 | 158 | 148 | 115 | 90 | |
| Cockle | 2 | 7/ w | 45 | 4 | '6/1 | 1,860 | 233 | 227 | 150 | 120 | |
| Janthina | 1/0 | 7/ w | 60 | 2 | '6/1 | 2,850 | 376 | 365 | 205 | 160 | |
| Ranella | 1/0 | 19/ w | 60 | 2 | '6/1 | 2,850 | 372 | 362 | 205 | 160 | |
Quadruplex Service Drop-Aluminum Conductor
| Code | Phase Conductor | Bare Neutral Messenger | Weight Per | Rating(Amps) | ||||||
| Name | 1000 ft(lbs) | |||||||||
| Size | Strand | Insulation | Size | Strand | Breaking | XLP | POLY | XLP | POLY | |
| AWG | thickness | AWG | strength | |||||||
| (MLS) | (lbs) | |||||||||
| AAC NEUTRAL-MESSENGER | ||||||||||
| Clydesdale | 4 | Solid | 45 | 4 | 7 | 881 | 208 | 201.8 | 100 | 80 |
| Pinto | 4 | 7/w | 45 | 4 | 7 | 881 | 223 | 207.9 | 100 | 80 |
| Mustang | 2 | 7/w | 45 | 2 | 7 | 1,350 | 333 | 312.6 | 135 | 105 |
| Criollo | 1/0 | 19/w | 60 | 1/0 | 7 | 1,990 | 529 | 504.5 | 180 | 140 |
| Percheron | 2/0 | 19/w | 60 | 2/0 | 7 | 2,510 | 649 | 620.5 | 205 | 160 |
| Hanoverian | 3/0 | 19/w | 60 | 3/0 | 19 | 3,310 | 799 | 765.6 | 235 | 185 |
| Oldenburg | 4/0 | 19/w | 60 | 4/0 | 19 | 4,020 | 986 | 946.7 | 275 | 210 |
| Lippizaner | 336.4 | 19/w | 80 | 336.4 | 19 | 6,146 | 1,546 | 1,519.20 | 370 | 280 |
| ACSR NEUTRAL-MESSNGER | ||||||||||
| Morochuca | 6 | Solid | 45 | 6 | '6/1 | 1,190 | 152 | 147.4 | 75 | 60 |
| Chola | 6 | 7/w | 45 | 6 | '6/1 | 1,190 | 162 | 151.7 | 75 | 60 |
| Morgan | 4 | Solid | 45 | 4 | '6/1 | 1,860 | 226 | 220 | 100 | 80 |
| Hackney | 4 | 7/w | 45 | 4 | '6/1 | 1,860 | 241 | 226.1 | 100 | 80 |
| Palomino | 2 | 7/w | 45 | 2 | '6/1 | 2,850 | 362 | 342.6 | 135 | 105 |
| Costena | 1/0 | 19/w | 60 | 1/0 | '6/1 | 4,380 | 575 | 550.6 | 180 | 140 |
| Grullo | 2/0 | 19/w | 60 | 2/0 | '6/1 | 5,310 | 707 | 678.7 | 205 | 160 |
| Suffolk | 3/0 | 19/w | 60 | 3/0 | '6/1 | 6,620 | 872 | 838.9 | 235 | 185 |
| Appaloosa | 4/0 | 19/w | 60 | 4/0 | '6/1 | 8,350 | 1079 | 1039.2 | 275 | 210 |
| Bronco | 336.4 | 19/w | 80 | 336.4 | '18/1 | 8,580 | 1613 | 1568.2 | 370 | 280 |
| Gelding | 336.4 | 19/w | 80 | 4/0 | '6/1 | 8,350 | 1548 | 1494.3 | 370 | 280 |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Bay | 6 | Solid | 45 | 6 | 7 | 1,110 | 145 | 140 | 75 | 60 |
| French Coach | 6 | 7/w | 45 | 6 | 7 | 1,110 | 155 | 144.3 | 75 | 60 |
| German Coach | 4 | Solid | 45 | 4 | 7 | 1,760 | 214 | 208.3 | 100 | 80 |
| Arabian | 4 | 7/w | 45 | 4 | 7 | 1,760 | 229 | 214.4 | 100 | 80 |
| Belgian | 2 | 7/w | 45 | 2 | 7 | 2,800 | 344 | 323.1 | 135 | 105 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 546 | 521.1 | 180 | 140 |
| Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 670 | 641.5 | 205 | 160 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 825 | 791.8 | 235 | 185 |
| Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 1019 | 979.7 | 275 | 210 |
| 6201 ALLOY NEUTRAL-MESSENGER | ||||||||||
| Code Name | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft(lbs) | Rating(Amps) | ||||||
| Size AWG | Strand | Insulation Thickness(mls) | Size AWG | Strand | Breaking Strength(lbs) | XLPE | Poly | XLPE | Poly | |
| Bay | 6 | Solid | 45 | 6 | 7 | 1,110 | 145 | 140.0 | 75 | 60 |
| French Coach | 6 | 7/w | 45 | 6 | 7 | 1,110 | 155 | 144.3 | 75 | 60 |
| German Coach | 4 | Solid | 45 | 4 | 7 | 1,760 | 214 | 208.3 | 100 | 80 |
| Arabian | 4 | 7/w | 45 | 4 | 7 | 1,760 | 229 | 214.4 | 100 | 80 |
| Belgian | 2 | 7/w | 45 | 2 | 7 | 2,800 | 344 | 323.1 | 135 | 105 |
| Shetland | 1/0 | 19/w | 60 | 1/0 | 7 | 4,460 | 546 | 521.1 | 180 | 140 |
| Thoroughbred | 2/0 | 19/w | 60 | 2/0 | 7 | 5,390 | 670 | 641.5 | 205 | 160 |
| Trotter | 3/0 | 19/w | 60 | 3/0 | 7 | 6,790 | 825 | 791.8 | 235 | 185 |
| Walking | 4/0 | 19/w | 60 | 4/0 | 7 | 8,560 | 1,019 | 979.7 | 275 | 210 |
Packaging & Shipping

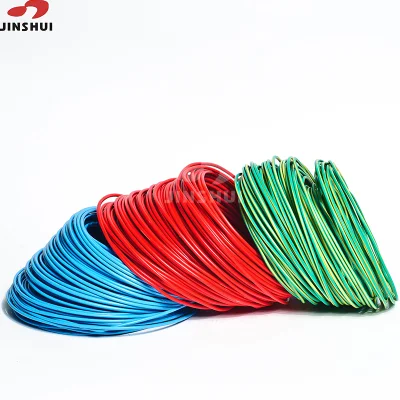

Copper Core PVC Insulation Wire
PVC insulated wire is widely used in residential, commercial, and industrial applications for various electrical wiring purposes, including power distribution, lighting, appliances, electronics, and more.
Model | Name |
BV | Copper Core PVC Insulation Wire |
BLV | Aluminum Core PVC Insulation Wire |
BVR | Copper Core PVC Insulation Flexible Wire |
BVV | Copper Core PVC Insulation PVC Sheath Round Wire |
BVVB | Copper Core PVC Insulation PVC Sheath Flat Wire |
BLVVB | Aluminum Core PVC Insulation PVC Sheath Flat Wire |
BV-90 | Copper Core Heat-resistance 105oC PVC Insulation |
Specification
BV 450/750V
| Nominal Section(mm²) | No./Dia. of Core (mm) | Max O.D(mm) | Reference Weight (kg/km) | Conductor Resistance at 20oC≤(Ω/km) |
| 0.5 | 1/0.80 | 2.4 | 8.5 | 36.0 |
| 0.75(A) | 1/0.97 | 2.6 | 11.1 | 24.5 |
| 0.75(B) | 7/0.37 | 2.8 | 12.0 | 24.5 |
| 1.0(A) | 1/1.13 | 2.8 | 13.9 | 18.1 |
| 1.0(B) | 7/0.43 | 3.0 | 15.0 | 18.1 |
BV BLV(BV-90)450/750V
| Nominal Section(mm²) | No/Dia.of Core(mm) | Max O.D (mm) | Reference Weight(kg/km) | Conductor Resistance at 20oC≤(Ω/km) | ||
| Copper | Aluminum | Aluminum | Copper | |||
| 1.5(A) | 1/1.38 | 3.3 | 20.3 | / | / | 12.1 |
| 1.5(B) | 7/0.52 | 3.5 | 21.6 | / | / | 12.1 |
| 2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
| 2.5(B) | 7/0.68 | 4.2 | 34.8 | / | / | 7.41 |
| 4(A) | 1/2.55 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
| 4(B) | 7/0.85 | 4.8 | 50.3 | / | / | / |
| 6(A) | 7/0.85 | 4.8 | 50.3 | 29 | 4.91 | 3.08 |
| 6(B) | 7/1.04 | 5.4 | 71.2 | / | / | 3.08 |
| 10 | 7/1.35 | 7.0 | 119 | 62 | 3.08 | 1.83 |
| 16 | 7/1.70 | 8.0 | 179 | 78 | 1.91 | 1.15 |
| 25 | 27/2.04 | 10.0 | 281 | 118 | 1.20 | 0.727 |
| 35 | 27/2.52 | 11.5 | 381 | 156 | 0.868 | 0.524 |
| 50 | 19/1.78 | 13.0 | 521 | 215 | 0.641 | 0.387 |
| 70 | 19/2.14 | 15.0 | 734 | 282 | 0.443 | 0.268 |
| 95 | 19/2.52 | 17.5 | 962 | 385 | 0.320 | 0.193 |
| 120 | 37/2.03 | 19.0 | 1180 | 431 | 0.253 | 0.153 |
| 150 | 37/2.25 | 21.0 | 1470 | 539 | 0.206 | 0.124 |
| 185 | 37/2.52 | 23.5 | 1810 | 666 | 0.164 | 0.0991 |
| 240 | 61/2.25 | 26.5 | 2350 | 857 | 0.125 | 0.0754 |
| 300 | 61/2.52 | 29.5 | 2930 | 1070 | 0.100 | 0.0601 |
| 400 | 61/2.85 | 33.0 | 3870 | 1390 | 0.0778 | 0.0470 |
BVVB, BLVVB 300/500V
| Nominal Section | Structure of Cores Core x No./Dia | Max Outer Dia (mm) | Reference Weight(kg/km) | Conductor Resistance at 20oC≤(Ω/km) | |||
| (mm²) | (mm) | Aluminum | Copper | Copper | Aluminum | Copper | Aluminum |
| 2×0.75 | 2×1/0.97 | / | 4.6×7.0 | 43.7 | 24.5 | / | / |
| 2×1.0 | 2×1/1.13 | / | 4.8×7.4 | 51.0 | 18.1 | / | / |
| 2×1.5 | 2×1/1.38 | / | 5.4×8.4 | 65.9 | 12.1 | / | / |
| 2×2.5 | 2×1/1.78 | 6.2×9.8 | 6.2×9.8 | 95.7 | 64.9 | 7.41 | 11.8 |
| 2×4 | 2×7/0.85 | 6.8×11.0 | 7.2×11.5 | 146.0 | 80.7 | 4.61 | 7.39 |
| 2×6 | 2×7/1.04 | 7.4×12.0 | 8.0×13.0 | 200.0 | 104 | 3.08 | 4.91 |
| 2×10 | 2×7/1.35 | 9.6×16.0 | 9.6×16.0 | 323.0 | 177 | 1.83 | 3.08 |
| 3×0.75 | 3×1/0.97 | / | 4.6×9.4 | 62.6 | / | 24.5 | / |
| 3×1.0 | 3×1/1.13 | / | 4.8×9.8 | 74.3 | / | 18.10 | / |
| 3×1.5 | 3×1/1.38 | / | 5.4×11.5 | 95.6 | / | 12.10 | / |
| 3×2.5 | 3×1/1.78 | 6.2×13.5 | 6.2×13.5 | 140 | 93.9 | 7.41 | 11.8 |
| 3×4 | 3×7/0.85 | 7.0×15.0 | 7.4×16.5 | 220 | 123 | 7.41 | 7.39 |
| 3×6 | 3×7/1.04 | 7.4×17.0 | 8.0×18.0 | 295 | 153 | 4.61 | 4.91 |
| 3×10 | 3×7/0.35 | 9.6×22.5 | 9.6×22.5 | 485 | 261 | 1.83 | 3.08 |
BVV 450/750V
| Nominal Section(mm²) | Structure of Cores Core x No./Dia (mm) | Max Outer Dia(mm) | Reference Weight(kg/km) |
| 1×0.75 | 1×1/0.97 | 4.3 | 23 |
| 1×1.0 | 1×1/1.13 | 4.5 | 26.4 |
| 1×1.5(A) | 1×1/1.38 | 4.9 | 34.6 |
| 1×1.5(B) | 1×7/0.52 | 5.2 | 36.5 |
| 1×2.5(A) | 1×1/1.78 | 5.8 | 46.4 |
| 1×4(A) | 1×1/2.25 | 6.4 | 65.9 |
| 1×4(B) | 1×7/0.85 | 6.8 | 73.7 |
| 1×6(A) | 1×1/2.76 | 7.0 | 91.6 |
| 1×10 | 1×7/1.35 | 8.8 | 152.0 |
| 2×1.5(A) | 2×1/1.38 | 9.8 | 109 |
| 2×1.5(B) | 2×7/0.52 | 10.5 | 123 |
| 2×2.5(A) | 2×1/1.78 | 11.5 | 157 |
| 2×2.5(B) | 2×7/0.68 | 12.0 | 172 |
| 2×4(A) | 2×1/2.25 | 12.5 | 205 |
| 2×4(B) | 2×7/0.85 | 13.0 | 222 |
| 2×6(A) | 2×1/2.76 | 13.5 | 265 |
| 2×6(B) | 2×7/1.04 | 14.5 | 286 |
| 2×10 | 2×7/1.35 | 18.0 | 471 |
| 3×1.5(A) | 3×1/1.38 | 10.5 | 136 |
| 3×1.5(B) | 3×7/0.52 | 11.0 | 146 |
| 3×2.5(A) | 3×1/1.78 | 12.0 | 190 |
| 3×2.5(B) | 3×7/0.68 | 12.5 | 207 |
| 3×4(A) | 3×1/2.25 | 13.0 | 252 |
| 3×4(B) | 3×7/0.85 | 14.0 | 272 |
| 3×6(A) | 3×1/2.76 | 14.5 | 344 |
| 3×10 | 3×7/1.35 | 19.0 | 574 |
| 4×1.5(A) | 4×1/1.38 | 11.5 | 164 |
| 4×1.5(B) | 4×7/0.52 | 12.0 | 174 |
| 4×2.5(B) | 4×7/0.68 | 13.5 | 252 |
| 4×4(A) | 4×1/2.25 | 14.5 | 321 |
| 4×4(B) | 4×7/0.85 | 15.5 | 346 |
| 4×6(A) | 4×1/2.76 | 14.5 | 470 |
| 4×6(B) | 4×7/1.04 | 15.5 | 439 |
| 5×1.5(A) | 5×1/1.38 | 12.0 | 192 |
| 5×1.5(B) | 5×7/0.52 | 12.5 | 205 |
| 5×2.5(A) | 5×1/1.78 | 14.0 | 272 |
| 5×2.5(B) | 5×7/0.68 | 14.5 | 292 |
| 5×4(A) | 5×1/2.25 | 16.0 | 379 |
| 5×4(B) | 5×7/0.85 | 17.0 | 418 |
| 5×6(A) | 5×1/2.76 | 17.5 | 518 |
| 5×6(B) | 5×7/1.04 | 18.5 | 550 |
Packaging & Shipping
Bare conductors
Bare conductors are used as overhead power lines, transmission lines, and distribution lines. Different conductor materials are suitable for different span lengths and the ability to withstand breaking strength. All aluminum conductors consist of one or more bundles of aluminum wire, depending on the specific application environment of the product. Due to the natural corrosion resistance of the all-aluminum structure, it is also popular in coastal areas. Compared with AAC and ACSR, AAAC has better strength and weight, better electrical properties, better vertical tensile properties, and better corrosion resistance. These characteristics make AAAC widely recognized and loved by more people in power distribution and medium and high
voltage transmission lines.
Specification
| Code Name | Size (KCM) | Strand | Approx.EC Cond with Equivalent Resistance | Stranding | Diameter(in) | Cross Sectional Area (Sq in) | Weight per 1000ft (lbs) | Rated Strength (lbs) | Resistance Ohms/1000ft (lbs) | ||
| Individual Wires | Complete Cable | DC @ 20ºC | AC@ 75ºC | ||||||||
| Akron | 30.58 | 7/w | 6 | 6/1 | .0661 | .198 | .0240 | 28.7 | 1,110 | .659 | .785 |
| Alton | 48.69 | 7/w | 4 | 6/1 | .0834 | .250 | .0382 | 45.7 | 1,760 | .414 | .493 |
| Ames | 77.47 | 7/w | 2 | 6/1 | .1052 | .316 | .0608 | 72.7 | 2,800 | .260 | .310 |
| Azusa | 123.3 | 7/w | 1/0 | 6/1 | .1327 | .398 | .0968 | 115.7 | 4,460 | .163 | .195 |
| Anaheim | 155.4 | 7/w | 2/0 | 6/1 | .1490 | .447 | .1221 | 145.9 | 5,390 | .130 | .154 |
| Amherst | 195.7 | 7/w | 3/0 | 6/1 | .1672 | .502 | .1537 | 183.7 | 6,790 | .103 | .123 |
| Alliance | 246.9 | 7/w | 4/0 | 6/1 | .1878 | .563 | .1939 | 231.8 | 8,560 | .0816 | .0973 |
| Butte | 312.8 | 19/w | 266.8 | 26/7 | .1283 | .642 | .2456 | 293.6 | 11,000 | .0644 | .0769 |
| Canton | 394.5 | 19/w | 336.4 | 26/7 | .1441 | .721 | .3098 | 370.3 | 13,300 | .0511 | .0610 |
| Cairo | 465.4 | 19/w | 397.5 | 26/7 | .1565 | .783 | .3655 | 436.9 | 15,600 | .0433 | .0518 |
| Darien | 559.5 | 19/w | 477.0 | 26/7 | .1716 | .858 | .4394 | 525.5 | 18,800 | .0360 | .0431 |
| Elgin | 652.4 | 19/w | 556.5 | 26/7 | .1853 | .927 | .5124 | 612.4 | 21,900 | .0309 | .0371 |
| Flint | 740.8 | 37/w | 636.0 | 26/7 | .1415 | .991 | .5818 | 695.5 | 24,400 | .0272 | .0327 |
| Greely | 927.2 | 37/w | 795.0 | 26/7 | .1583 | 1.108 | .7282 | 870.4 | 30,500 | .0217 | .0263 |
ASTM B232 Standard:
| Code Name | Size | No./Dia.of Stranding Wires | Approx. Overall Dia. | Approx. Weight | Code Name | Size | No./Dia.of Stranding Wires | Approx. Overall Dia. | Approx. Weight | ||
| AWG or MGM | Alum. | ST. | AWG or MGM | Alum. | ST. | ||||||
| No./mm | No./mm | mm | kg/km | No./mm | No./mm | mm | kg/km | ||||
| Swanate | 4 | 7/1.96 | 1/2.61 | 6.53 | 93 | Tern | 795 | 45/3.38 | 7/2.25 | 27.03 | 1300 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 8.01 | 129 | Condor | 795 | 54/3.08 | 7/3.08 | 27.72 | 1461 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 8.24 | 148 | Cuckoo | 795 | 24/4.62 | 7/3.08 | 27.74 | 1461 |
| Robin | 1 | 6/3.00 | 1/3.00 | 9.00 | 163 | Drake | 795 | 26/4.44 | 7/3.45 | 28.11 | 1550 |
| Raven | 1/0 | 6/3.37 | 1/3.37 | 10.11 | 206 | Coot | 795 | 36/3.77 | 1/3.77 | 26.41 | 1184 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 11.34 | 259 | Mallard | 795 | 30/4.14 | 19/2.48 | 28.96 | 1728 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 12.75 | 327 | Ruddy | 900 | 45/3.59 | 7/2.40 | 28.73 | 1472 |
| Penguin | 4/0 | 6/4.77 | 1/4.77 | 14.31 | 412 | Canary | 900 | 54/3.28 | 7/3.28 | 29.52 | 1554 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 15.45 | 422 | Rail | 954 | 45/3.70 | 7/2.47 | 29.61 | 1560 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 17.35 | 532 | Catbird | 954 | 36/4.14 | 1/4.14 | 28.95 | 1421 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 18.31 | 656 | Cardinal | 954 | 54/3.38 | 7/3.38 | 30.42 | 1753 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 18.83 | 737 | Ortlan | 1033.5 | 45/3.85 | 7/2.57 | 30.81 | 1690 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 18.85 | 629 | Tanager | 1033.5 | 36/4.30 | 1/4.30 | 30.12 | 1539 |
| Ibis | 397.5 | 26/3.14 | 7/2.44 | 19.88 | 775 | Curlew | 1033.5 | 54/3.52 | 7/3.52 | 31.66 | 1900 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 20.44 | 871 | Bluejay | 1113 | 45/4.00 | 7/2.66 | 31.86 | 1821 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 20.70 | 754 | Bunting | 1192.5 | 45/4.14 | 7/2.76 | 33.12 | 1949 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 21.49 | 877 | Grackle | 1192.5 | 54/3.77 | 19/2.27 | 33.97 | 2190 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 21.80 | 931 | Bittern | 1272 | 45/4.27 | 7/2.85 | 34.17 | 2080 |
| Hen | 477 | 30/3.20 | 7/3.20 | 22.40 | 1044 | Pheasant | 1272 | 54/3.90 | 19/2.34 | 35.10 | 2335 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 22.35 | 880 | Skylark | 1272 | 36/4.78 | 1/4.78 | 33.42 | 1895 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 23.22 | 1023 | Dipper | 1351.5 | 45/4.40 | 7/2.92 | 35.16 | 2210 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 23.55 | 1085 | Martin | 1351.5 | 54/4.02 | 19/2.41 | 36.17 | 2481 |
| Eagle | 556.5 | 30/3.46 | 7/3.46 | 24.21 | 1219 | Bobolink | 1431 | 45/4.53 | 7/3.02 | 36.24 | 2342 |
| Peacock | 605 | 24/4.03 | 7/2.69 | 24.20 | 1112 | Plover | 1431 | 54/4.14 | 19/2.48 | 37.24 | 2628 |
| Squab | 605 | 26/3.87 | 7/3.01 | 24.51 | 1180 | Nuthatch | 1510.5 | 45/4.65 | 7/3.10 | 37.20 | 2470 |
| WoodDuck | 605 | 30/3.61 | 7/3.61 | 25.25 | 1325 | Parrot | 1510.5 | 54/4.25 | 19/2.55 | 38.25 | 2773 |
| Kingbird | 636 | 18/4.78 | 1/4.78 | 23.88 | 1007 | Lapwing | 1590 | 45/4.77 | 7/3.18 | 38.16 | 2599 |
| Aluminum Sectional Area | Stranding No. and Dia. | Approx. Overall Dia | Approx. Weight | Calculated Breaking Load | Calculated D C Resistance at 20oC | Code Name | ||
| AWG | (mm2) | Al. | St. | (mm) | (kg/km) | (KN) | (Ω/km) | |
| 6 | 13.30 | 6/1.68 | 1/1.68 | 5.04 | 53.75 | 5,303 | 2.157 | Turkey |
| 4 | 21.18 | 6/2.12 | 1/2.12 | 6.36 | 85.57 | 8,302 | 1.335 | Swan |
| 4 | 21.12 | 7/1.96 | 1/2.61 | 6.53 | 99.56 | 10,642 | 1.352 | Swanate |
| 2 | 33.59 | 6/2.67 | 1/2.67 | 8.01 | 135.70 | 12,653 | 0.854 | Sparrow |
| 2 | 33.54 | 7/2.47 | 1/3.30 | 8.24 | 158.60 | 16,171 | 0.852 | Sparate |
| 1 | 42.41 | 6/3.00 | 1/3.00 | 9.00 | 171.40 | 15,852 | 0.676 | Robbin |
| 1/0 | 53.52 | 6/3.37 | 1/3.37 | 10.10 | 216.20 | 19,455 | 0.536 | Raven |
| 2/0 | 67.32 | 6/3.78 | 1/3.78 | 11.30 | 272.00 | 23,529 | 0.426 | Quail |
| 3/0 | 85.14 | 6/4.25 | 1/4.25 | 12.80 | 344.00 | 29,417 | 0.337 | Pigeon |
| 4/0 | 107.20 | 6/4.77 | 1/4.77 | 14.30 | 433.40 | 37,055 | 0.268 | Penguin |
| 266800 | 135.00 | 18/3.09 | 1/3.09 | 15.50 | 430.50 | 30,519 | 0.213 | Wax wing |
| 266800 | 134.90 | 26/2.57 | 7/2.00 | 16.30 | 545.40 | 26,403 | 0.214 | Partridge |
| 300000 | 152.20 | 26/2.73 | 7/2.12 | 17.30 | 614.60 | 56,410 | 0.190 | Ostrich |
| 336400 | 170.20 | 18/3.47 | 1/3.47 | 17.40 | 542.90 | 38,487 | 0.169 | Merlin |
| 336400 | 170.60 | 26/2.89 | 7/2.25 | 18.30 | 689.90 | 62,918 | 0.169 | Linnet |
| 336400 | 170.50 | 30/2.69 | 7/2.69 | 18.80 | 784.50 | 77,267 | 0.170 | Oriole |
| 397500 | 201.60 | 24/3.27 | 7/2.18 | 19.60 | 762.50 | 65,099 | 0.143 | Brant |
| 397500 | 201.30 | 26/3.14 | 7/2.44 | 19.90 | 813.50 | 72,426 | 0.143 | Ibis |
| 397500 | 200.90 | 30/2.92 | 7/2.92 | 20.40 | 924.40 | 90,485 | 0.144 | Lark |
| 477000 | 242.3 | 18/4.14 | 1/4.14 | 20.70 | 772.60 | 52,302 | 0.119 | Pelican |
| 477000 | 241.7 | 24/3.58 | 7/2.39 | 21.50 | 914.90 | 73,243 | 0.120 | Flicker |
| 477000 | 241.6 | 26/3.44 | 7/2.67 | 21.80 | 975.50 | 86,011 | 0.120 | Hawk |
| 477000 | 241.3 | 30/3.20 | 7/3.20 | 22.40 | 1,110.00 | 105,611 | 0.120 | Hen |
| 556500 | 282.4 | 18/4.47 | 1/4.47 | 22.40 | 900.70 | 60,972 | 0.120 | Osprey |
| 556500 | 282.2 | 24/3.87 | 7/2.58 | 23.2 | 1,068.00 | 84,424 | 0.1030 | Parakeet |
| 556500 | 282.6 | 26/3.72 | 7/2.89 | 23.6 | 1,142.00 | 100,838 | 0.1030 | Dove |
| 556500 | 282.1 | 30/3.46 | 7/3.46 | 24.2 | 1,298.00 | 123,470 | 0.1030 | Eagle |
| 605000 | 306.2 | 24/4.03 | 7/2.69 | 24.2 | 1,159.00 | 95,861 | 0.0948 | Peacock |
| 605000 | 307.2 | 26/3.87 | 7/3.01 | 24.5 | 1,236.00 | 108,317 | 0.0944 | Squab |
| 605000 | 307.2 | 30/3.61 | 7/3.61 | 25.3 | 1,414.00 | 128,736 | 0.0945 | Duck |
| 605000 | 307.2 | 30/3.61 | 19/2.16 | 25.2 | 1,398.00 | 133,082 | 0.0945 | Teal |
| 636000 | 323.1 | 18/4.78 | 1/4.78 | 23.9 | 1,031.00 | 69,722 | 0.0890 | Kingbirad |
| 636000 | 323.0 | 24/4.14 | 7/2.76 | 24.8 | 1,222.00 | 101,038 | 0.0894 | Rook |
| 636000 | 322.5 | 30/3.70 | 19/2.22 | 25.9 | 1,472.00 | 14,029 | 0.0897 | Egret |
| 666600 | 337.2 | 24/4.23 | 7/2.82 | 25.4 | 1,276.00 | 105,478 | 0.0856 | Flamingo |
| 666600 | 338.3 | 26/4.07 | 7/3.16 | 25.8 | 1,366.00 | 117,258 | 0.0854 | Gannet |
Packaging & Shipping
XLPE/PVC insulated Power Cable
It is used to transmit and distribute power in power transmission and distribution system of 37kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical indusry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Using features:
1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV.
2. No. of core: Single-core, Three-core.
3. The highest allowed operating temperature of conductor for long-term working is 90ºC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250ºC.
4. D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.
5. The environment temperature should be no lower than 0ºC when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of three-core cable should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test:.
For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.
8. Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.
| Type | Type | Name | No. of Cores | Nominal Cross-Section of Conductor(mm2) |
| Cu Core | Al Core | 1 | 1.5--1000 | |
| YJV (YJY) | YJLV (YJLY) | XLPE Insulated,PVC(PE) Sheathed Power Cable | 1 | 1.5--1000 |
| YJV22 (YJV23) | YJLV22 (YJLY23) | XLPE Insulated,Steel Tape Armoured,PVC(PE) Sheathed Power Cable | 2/3/4/5 | 1.5--400 |
| YJV32 (YJLV33) | YJLV32 (YJLY33) | XLPE Insulated,Fine Steel Wire Armoured,PVC(PE) Sheathed Power Cable | 2/3/4/5 | 1.5--400 |
| YJV42 (YJLV43) | YJLV42 (YJLY43) | XLPE Insulated,Thick Steel Wire Armoured,PVC(PE) Sheathed Power Cable | 2/3/4/5 | 1.5--400 |
| ZR-YJV (ZR-YJY) | ZR-YJLV (ZR-YJLY) | XLPE Insulated,PVC(PE) Sheathed Flame-retardant Power Cable | 2/3/4/5 | 1.5--400 |
| ZR-YJV22 (ZR-YJY23) | ZR-YJLV22 (ZR-YJLY23) | XLPE Insulated,Steel Tape Armoured,PVC(PE) Sheathed Flame-retardant Power Cable | 2/3/4/5 | 1.5--400 |
| ZR-YJV32 (ZR-YJY33) | ZR-YJLV32 (ZR-YJLY33) | XLPE Insulated,Fine Steel Wire Armoured,PVC(PE) Sheathed Flame-retardant Power Cable | 3+1/ 4+1/ 3+2 | 2.5--400 |
| ZR-YJV42 (ZR-YJY43) | ZR-YJLV42 (ZR-YJLY43) | XLPE Insulated,Thick Steel Wire Armoured,PVC(PE) Sheathed Flame-retardant Power Cable | 3+1/ 4+1/ 3+2 | 2.5--400 |
| 1)3.6/6(7.2)kV,3.6/6.6(7.2)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable | |||||||||
| No.X Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Copper Tape Screen | Nominal Thickness of Inner Sheath | Nominal Thickness of Steel Tape Armouring | Nominal Thickness of PVC Sheath | Approx. Overall Diameter | Approx. Weight | |
| Al Conductor | Cu Conductor | ||||||||
| No. X mm 2 | mm | mm | mm | mm | mm | mm | mm | kg/m | kg/m |
| 3 X 25 | 6 | 2.5 | 0.1 | 1.2 | 0.2 | 1.9 | 37.9 | 1.87 | 2.32 |
| 3 X 35 | 6.9 | 2.5 | 0.1 | 1.3 | 0.5 | 2 | 41.5 | 2.1 | 2.73 |
| 3 X50 | 8.2 | 2.5 | 0.1 | 1.3 | 0.5 | 2 | 44.3 | 2.37 | 3.22 |
| 3 X 70 | 9.7 | 2.5 | 0.1 | 1.4 | 0.5 | 2.1 | 47.9 | 2.77 | 4 |
| 3 X 95 | 11.3 | 2.5 | 0.1 | 1.4 | 0.5 | 2.2 | 51.6 | 3.21 | 4.91 |
| 3 X 120 | 12.8 | 2.5 | 0.1 | 1.5 | 0.5 | 2.4 | 55.4 | 3.69 | 5.84 |
| 3 X 150 | 14.2 | 2.5 | 0.1 | 1.5 | 0.5 | 2.5 | 58.6 | 4.15 | 6.85 |
| 3 X 185 | 15.9 | 2.5 | 0.1 | 1.5 | 0.5 | 2.6 | 62.5 | 4.73 | 8.11 |
| 3 X 240 | 18.3 | 2.6 | 0.1 | 1.6 | 0.5 | 2.7 | 68.5 | 5.62 | 10.05 |
| 3 X 300 | 20.4 | 2.8 | 0.1 | 1.7 | 0.5 | 2.9 | 74.5 | 6.55 | 12.11 |
| 3 X 400 | 23.2 | 3 | 0.1 | 1.9 | 0.8 | 3.2 | 83.6 | 8.78 | 15.86 |
| 3 X 500 | 26.4 | 3.2 | 0.1 | 2.1 | 0.8 | 3.4 | 93 | 10.52 | 18.85 |

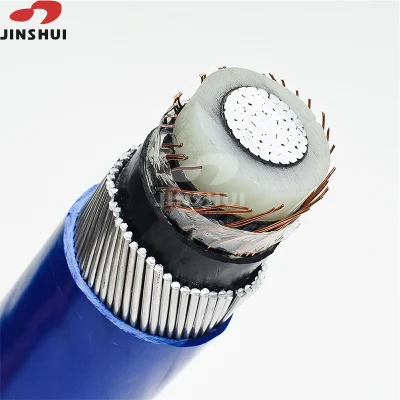

| 2)6/10(12)kV,6.35/11(12)kV,,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable | |||||||||
| No.X Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Copper Tape Screen | Nominal Thickness of Inner Sheath | Nominal Thickness of Steel Tape Armouring | Nominal Thickness of PVC Sheath | Approx. Overall Diameter | Approx. Weight | |
| Al Conductor | Cu Conductor | ||||||||
| No. X mm 2 | mm | mm | mm | mm | mm | mm | mm | kg/m | kg/m |
| 3 X 25 | 6 | 3.4 | 0.1 | 1.3 | 0.5 | 2 | 43.4 | 2.16 | 2.61 |
| 3 X 35 | 6.9 | 3.4 | 0.1 | 1.3 | 0.5 | 2 | 45.4 | 2.36 | 2.99 |
| 3 X50 | 8.2 | 3.4 | 0.1 | 1.4 | 0.5 | 2.2 | 48.8 | 2.69 | 3.54 |
| 3 X 70 | 9.7 | 3.4 | 0.1 | 1.5 | 0.5 | 2.3 | 52.4 | 3.1 | 4.33 |
| 3 X 95 | 11.3 | 3.4 | 0.1 | 1.5 | 0.5 | 2.4 | 56.1 | 3.56 | 5.26 |
| 3 X 120 | 12.8 | 3.4 | 0.1 | 1.5 | 0.5 | 2.5 | 59.5 | 4.04 | 6.19 |
| 3 X 150 | 14.2 | 3.4 | 0.1 | 1.5 | 0.5 | 2.6 | 62.7 | 4.49 | 7.19 |
| 3 X 185 | 15.9 | 3.4 | 0.1 | 1.6 | 0.5 | 2.6 | 66.6 | 5.12 | 8.49 |
| 3 X 240 | 18.3 | 3.4 | 0.1 | 1.7 | 0.5 | 2.8 | 72.4 | 5.99 | 10.42 |
| 3 X 300 | 20.4 | 3.4 | 0.1 | 1.8 | 0.5 | 3 | 77.5 | 6.86 | 12.42 |
| 3 X 400 | 23.2 | 3.4 | 0.1 | 1.9 | 0.8 | 3.2 | 85.4 | 8.97 | 16.05 |
| 3 X 500 | 26.4 | 3.4 | 0.1 | 2 | 0.8 | 3.4 | 93.7 | 10.65 | 19.5 |
| 3)8.7/10(15)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable | |||||||||
| No.X Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Copper Tape Screen | Nominal Thickness of Inner Sheath | Nominal Thickness of Steel Tape Armouring | Nominal Thickness of PVC Sheath | Approx. Overall Diameter | Approx. Weight | |
| Al Conductor | Cu Conductor | ||||||||
| No. X mm 2 | mm | mm | mm | mm | mm | mm | mm | kg/m | kg/m |
| 3 X 25 | 6 | 4.5 | 0.1 | 1.4 | 0.5 | 2.1 | 48.6 | 2.53 | 2.98 |
| 3 X 35 | 6.9 | 4.5 | 0.1 | 1.4 | 0.5 | 2.2 | 50.7 | 2.76 | 3.39 |
| 3 X50 | 8.2 | 4.5 | 0.1 | 1.5 | 0.5 | 2.3 | 53.9 | 3.1 | 3.95 |
| 3 X 70 | 9.7 | 4.5 | 0.1 | 1.5 | 0.5 | 2.4 | 57.4 | 3.51 | 4.74 |
| 3 X 95 | 11.3 | 4.5 | 0.1 | 1.5 | 0.5 | 2.6 | 61.2 | 4.05 | 5.75 |
| 3 X 120 | 12.8 | 4.5 | 0.1 | 1.6 | 0.5 | 2.6 | 64.7 | 4.56 | 6.72 |
| 3 X 150 | 14.2 | 4.5 | 0.1 | 1.6 | 0.5 | 2.7 | 67.9 | 5.04 | 7.74 |
| 3 X 185 | 15.9 | 4.5 | 0.1 | 1.7 | 0.5 | 2.8 | 71.9 | 5.66 | 9.04 |
| 3 X 240 | 18.3 | 4.5 | 0.1 | 1.8 | 0.5 | 3 | 77.7 | 6.56 | 11 |
| 3 X 300 | 20.4 | 4.5 | 0.1 | 1.9 | 0.8 | 3.2 | 84.1 | 8.39 | 13.96 |
| 3 X 400 | 23.2 | 4.5 | 0.1 | 2 | 0.8 | 3.3 | 90.5 | 9.71 | 16.79 |
| 3 X 500 | 26.4 | 4.5 | 0.1 | 2.1 | 0.8 | 3.5 | 98.8 | 11.45 | 20.57 |
| 4)12/20(24)kV, 12.7/22(24)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable | |||||||||
| No.X Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Copper Tape Screen | Nominal Thickness of Inner Sheath | Nominal Thickness of Steel Tape Armouring | Nominal Thickness of PVC Sheath | Approx. Overall Diameter | Approx. Weight | |
| Al Conductor | Cu Conductor | ||||||||
| No. X mm 2 | mm | mm | mm | mm | mm | mm | mm | kg/m | kg/m |
| 3 X 25 | |||||||||
| 3 X 35 | 6.9 | 5.5 | 0.1 | 1.5 | 0.5 | 2.4 | 55.6 | 3.14 | 3.77 |
| 3 X50 | 8.2 | 5.5 | 0.1 | 1.5 | 0.5 | 2.5 | 58.6 | 3.49 | 4.34 |
| 3 X 70 | 9.7 | 5.5 | 0.1 | 1.5 | 0.5 | 2.6 | 62.1 | 3.93 | 5.16 |
| 3 X 95 | 11.3 | 5.5 | 0.1 | 1.6 | 0.5 | 2.6 | 65.7 | 4.46 | 6.16 |
| 3 X 120 | 12.8 | 5.5 | 0.1 | 1.7 | 0.5 | 2.7 | 69.4 | 5 | 7.15 |
| 3 X 150 | 14.2 | 5.5 | 0.1 | 1.7 | 0.5 | 2.8 | 72.6 | 5.49 | 8.19 |
| 3 X 185 | 15.9 | 5.5 | 0.1 | 1.8 | 0.5 | 3 | 76.9 | 6.16 | 9.53 |
| 3 X 240 | 18.3 | 5.5 | 0.1 | 1.9 | 0.8 | 3.2 | 83.9 | 7.87 | 12.31 |
| 3 X 300 | 20.4 | 5.5 | 0.1 | 2 | 0.8 | 3.2 | 88.6 | 8.96 | 14.52 |
| 3 X 400 | 23.2 | 5.5 | 0.1 | 2.1 | 0.8 | 3.5 | 95.4 | 10.35 | 17.43 |
| 3 X 500 | 26.4 | 5.5 | 0.1 | 2.2 | 0.8 | 3.7 | 103.7 | 12.45 | 20.23 |
| 5)18/30(36)kV,19/33(36)kV,Three Cores,Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable | |||||||||
| No.X Nominal Cross Section of Conductor | Nominal Diameter of Conductor | Nominal Thickness of Insulation | Nominal Thickness of Copper Tape Screen | Nominal Thickness of Inner Sheath | Nominal Thickness of Steel Tape Armouring | Nominal Thickness of PVC Sheath | Approx. Overall Diameter | Approx. Weight | |
| Al Conductor | Cu Conductor | ||||||||
| No. X mm 2 | mm | mm | mm | mm | mm | mm | mm | kg/m | kg/m |
| 3 X 25 | |||||||||
| 3 X 35 | |||||||||
| 3 X50 | 8.2 | 8 | 0.1 | 1.7 | 0.5 | 2.8 | 70.4 | 4.56 | 5.41 |
| 3 X 70 | 9.7 | 8 | 0.1 | 1.7 | 0.5 | 2.9 | 73.9 | 5.04 | 6.26 |
| 3 X 95 | 11.3 | 8 | 0.1 | 1.8 | 0.5 | 3 | 77.7 | 5.62 | 7.32 |
| 3 X 120 | 12.8 | 8 | 0.1 | 1.9 | 0.8 | 3.2 | 82.8 | 6.99 | 9.15 |
| 3 X 150 | 14.2 | 8 | 0.1 | 1.9 | 0.8 | 3.2 | 85.8 | 7.56 | 10.26 |
| 3 X 185 | 15.9 | 8 | 0.1 | 2 | 0.8 | 3.3 | 89.9 | 8.3 | 11.67 |
| 3 X 240 | 18.3 | 8 | 0.1 | 2.1 | 0.8 | 3.5 | 95.7 | 9.36 | 13.79 |
| 3 X 300 | 20.4 | 8 | 0.1 | 2.2 | 0.8 | 3.6 | 100.6 | 10.51 | 16.07 |
| 3 X 400 | 23.2 | 8 | 0.1 | 2.3 | 0.8 | 3.8 | 107.2 | 11.99 | 19.07 |
| 3 X 500 | 26.4 | 8 | 0.1 | 2.4 | 0.8 | 4 | 120.1 | 14.15 | 23.85 |
Packaging & Shipping
Control Cable

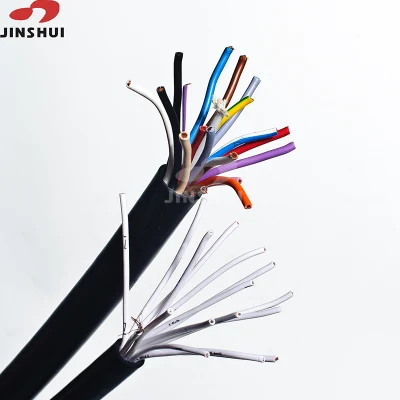

Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.
Product Type
| Type | Name | Section Area (mm2) | No.of Core | Application Site |
| KVV | Copper Conductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors, in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor PVC Insulated and Sheathed,Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors,i n cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors, in cable ditches,Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5 2.5 | 4-48 | |||
| KYJV | CopperConductor XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors, in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJVP | Copper Conductor XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJV22 | CopperConductor,XLPE Insulated,Steel-tape Armoured,PVCSheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors, in cable ditches,pipes or underground Be cable to with stand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVP2 | CopperConductor,XLPE Insulated,Copper tape Screened,PVCSheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVR | CopperConductor,XLPE Insulated,PVCSheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KYJVRP | CopperConductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | |
| 1.5 2.5 | 4-48 | Installation indoors where flexibility shielding and movability are required |
Concentric Cable

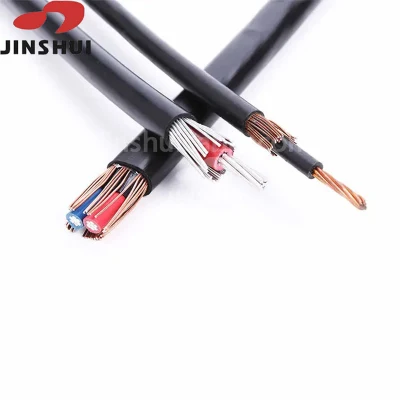

The concentric cable is used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code.
Specification
| ASTM 600/1000v | |||||||||||
| Core | AWG | Structure Size (mm) | Copper cable (kg/km) | ||||||||
| Conductor | Insulation | Concentric conductor | Outer sheath | ||||||||
| Single wire | XLPE | Single wire | UV-PVC | ||||||||
| No. | Dia. | Thick | No. | Dia. | Thick | Dia. | |||||
| 1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 | ||
| 1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 | ||
| 1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 | ||
| 1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 | ||
| 1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 | ||
| IEC 60502-1 IEC 60228 600/1000v | |||||||||||
| Size (mm2) | Structure Size mm | Copper cable (kg/km) | |||||||||
| Concuctor | Insulation | Concentric conductor | Outer sheath | ||||||||
| Single wire | Dia. | PVC | Single wire | UV-PVC | |||||||
| No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) | ||||
| 10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 | ||
| 16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 | ||
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 | ||
| Aluminum Cable | |||||||||||
| 16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 | ||
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 | ||
| 35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 | ||
Zhengzhou Jinshui Industry & Commerce Co.,Ltd is a professional cable manufacturer and exporter with more than 20 years experience, located in Zhengzhou, China. Products mainly include bare conductor, aerial bundled cable(ABC), building wire, XLPE insulated Power Cable, coaxial cable, etc. With high-quality products and professional service, we have gained the trust from many customers and established long-term business relationship with them. Products have been exported to more than 30 countries.
(1). Are you the factory or trading company?
We are the manufacturer and 18 years gold supplier on Made in China. We are engaged in exporting cables for nearly 20 years.
(2).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(3).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(4). What is the payment terms?
30% deposit by T/T,70% T/T after checking the copy of B/L. Or irrevocable L/C at sight .
(5).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
Welcome your kind enquiry!!!
