Basic Info.
Model NO.
DW20
Material Shape
Round Wire
Certification
ISO9001, RoHS, UL,ISO14001,Reach
Brand
/
Rated Voltage
500V/1000V
Temperature Range
-60ºC~+180ºC
1.Section mm²
0.12, 0.20, 0.30, 0.40, 0.50, 0.75
2.Section mm²
1.00, 1.50, 2.00, 2.50, 4.00, 6.00
3.Section mm²
10.00, 16.00, 25.00, 35.00
4.Section mm²
50.00, 70.00, 95.00, 120.00
Transport Package
/
Specification
JG500V, 1000Vsingle core(0.12~120)mm²
Trademark
/
Origin
Dongguan China
HS Code
8501109101
Production Capacity
10000m/Day
Product Description
| Factory | Dongguan Dewei Wire Co.,Ltd. |
| Size | Customized Size. |
| Color | White-Blue-Red-Black-Brown-Yellow-Green-Yellow/green. |
| Lead Time | Generally working days,more or less.According to the style and quantity of the order. |
| Payment | L/C, T/T, D/P, Western Union, Paypal, Money Gram. |
| Shipping | Sea transportation and Air transportation. Finally the shipping time will be determined according to the quantity of products. |
| Delivery Time | It is depend on the quantity of products. |
| Package | Original packing or as customer required. |
| Price | Factory price offered.The more you order, the lower price you can get. |
| Our advantages | 1. Competitive price. 2. High-quality. 3. Fast delivery. 4. ISO9001/UL/RoHS certification. |

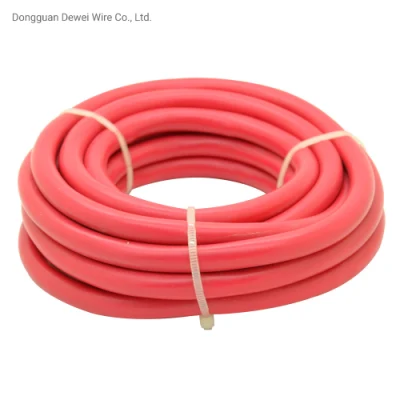

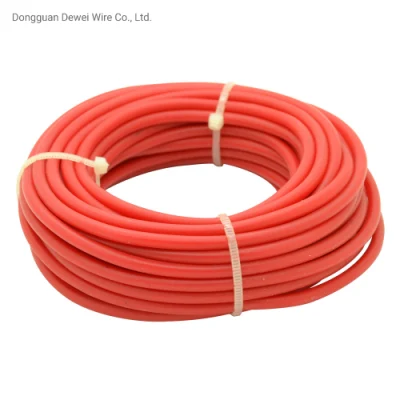

JG silicone insulated cable DW20
Rated voltage:500V/1000V
Temperature range:-60ºC~+180ºC

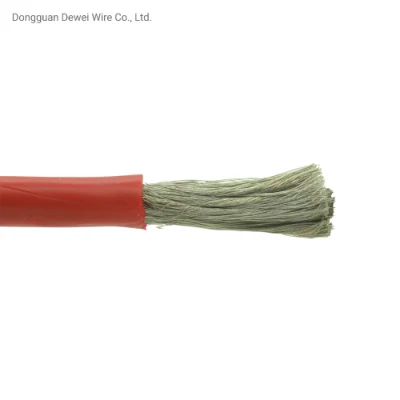

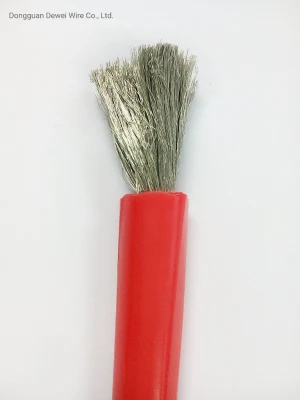

Conductor:tinned,nickeled,silver plated,bared copper
Insulation:silicone
Applicable Scope: They are used for electrical machine of F,H level
Rated voltage:500V/1000V
Temperature range:-60ºC~+180ºC
Conductor:tinned,nickeled,silver plated,bared copper
Insulation:silicone
Applicable Scope: They are used for electrical machine of F,H level
JG500V,1000VSingle core(0.12~120)mm²
| Section | Conductor Construction NO.×Φmm | Insulator Thickness mm | Over Diameter mm | Max. Outside Diameter mm | Conductor DC line Ω/KM at 20ºC is not greater than | ||||
| 500V | 1000V | 500V | 1000V | 500V | 1000V | Copper core | Tinned copper | ||
| 0.12 | 7/0.15 | 0.60 | 0.80 | 1.65 | 2.05 | 1.90 | 2.36 | 150.000 | 163.000 |
| 0.20 | 12/0.15 | 0.60 | 0.80 | 1.80 | 2.20 | 2.07 | 2.53 | 92.300 | 96.000 |
| 0.30 | 16/0.15 | 0.60 | 0.80 | 1.90 | 2.30 | 2.19 | 2.65 | 69.200 | 71.200 |
| 0.40 | 23/0.15 | 0.80 | 1.00 | 2.40 | 2.80 | 2.76 | 3.22 | 48.200 | 49.600 |
| 0.50 | 16/0.20 | 0.80 | 1.00 | 2.53 | 2.93 | 2.91 | 3.37 | 39.000 | 40.100 |
| 0.75 | 24/0.20 | 1.00 | 1.20 | 3.14 | 3.54 | 3.60 | 4.07 | 26.000 | 26.700 |
| 1.00 | 32/0.20 | 1.00 | 1.20 | 2.32 | 3.72 | 3.80 | 4.28 | 19.500 | 20.200 |
| 1.50 | 30/0.25 | 1.00 | 1.20 | 3.60 | 4.00 | 4.14 | 4.60 | 13.300 | 13.700 |
| 2.00 | 40/0.25 | 1.00 | 1.20 | 3.84 | 4.24 | 4.42 | 4.87 | 9.600 | 9.900 |
| 2.50 | 49/0.25 | 1.00 | 1.20 | 4.00 | 4.40 | 4.60 | 5.06 | 7.980 | 8.210 |
| 4.00 | 56/0.30 | 1.20 | 1.40 | 5.00 | 5.40 | 5.74 | 6.20 | 4.950 | 5.090 |
| 6.00 | 84/0.30 | 1.20 | 1.40 | 6.00 | 6.40 | 6.90 | 7.36 | 3.300 | 3.390 |
| 10.00 | 84/0.40 | 1.40 | 1.60 | 7.40 | 7.80 | 8.50 | 8.97 | 1.910 | 1.950 |
| 16.00 | 126/0.40 | 1.40 | 1.60 | 8.50 | 8.90 | 9.78 | 10.23 | 1.210 | 1.240 |
| 25.00 | 196/0.40 | 1.60 | 1.80 | 10.30 | 10.70 | 11.84 | 12.31 | 0.780 | 0.795 |
| 35.00 | 276/0.40 | 1.80 | 2.00 | 12.10 | 12.50 | 13.92 | 14.38 | 0.554 | 0.565 |
| 50.00 | 396/0.40 | 2.00 | 2.20 | 14.30 | 14.70 | 16.44 | 16.91 | 0.386 | 0.393 |
| 70.00 | 360/0.50 | 2.00 | 2.20 | 16.40 | 16.80 | 18.86 | 19.32 | 0.272 | 0.277 |
| 95.00 | 475/0.50 | 2.20 | 2.40 | 18.90 | 19.30 | 21.74 | 22.20 | 0.206 | 0.210 |
| 120.00 | 608/0.50 | 2.20 | 2.40 | 20.40 | 20.80 | 23.46 | 23.90 | 0.161 | 0.164 |
Dongguan Dewei Wire Co., Ltd. was established in 2007, specializes in manufacturing extra-flexible silicone rubber wire,silicone high voltage wire, silicone power wire, silicone heating wire, silicone shielding wire, silicone medical wire, fluoroplastics wire, new energy high temperature wire, special high temperature wire that comply with UL, VDE, and CCC. Besides, our company has specially set up wire processing workshops and dust-free workshops to provide customers with well processed wire group or wire harness for batteries, brushes, electric adjustment, steering gear,all kinds of household appliances, JST, AMP, connectors, plugs, medical devices etc.
We strictly follows ISO9001 international standard to develop and implement quality management system, and successfully passed ISO9001 certification in 2009, obtained UL certification (certification number: E339716) in 2010 and ISO14001 certificate in July 2022. And Successfully passed IATF16949 automotive quality management system in January 2023. Insists on the business philosophy of "quality-oriented, innovation and development, creating value together" and establishes the tenet that "the survival of our enterprise is determined by quality" to provide customers with competitive and qualified products on time.
We strictly follows ISO9001 international standard to develop and implement quality management system, and successfully passed ISO9001 certification in 2009, obtained UL certification (certification number: E339716) in 2010 and ISO14001 certificate in July 2022. And Successfully passed IATF16949 automotive quality management system in January 2023. Insists on the business philosophy of "quality-oriented, innovation and development, creating value together" and establishes the tenet that "the survival of our enterprise is determined by quality" to provide customers with competitive and qualified products on time.
| Q1:Why did I choose you? | A:1.We are a manufacturer with more than ten years of experience, and have obtained ISO9001,UL,RoHS ISO14001 certification. 2.To customers: quality assurance, service first. | ||||||||
| Q2:How do you ensure product quanlity? | A:We have built a mechanical, electrical, fire and flame retardant laboratory, and equipped with professional cable testing engineers. | ||||||||
| Q3:How does your company do regarding Quality Control? | A:1.All raw material we selected the high quality one. 2.Professional & Skilful workers care every details in handling the producing. 3.Quality Control Department specially responsible for quality checking in each process. | ||||||||
| Q4:Do you provide samples? | A:Yes, we could offer the sample for free charge but do not pay the cost of freight. | ||||||||
| Q5:Could you do OEM? | A:Yes, OEM is available for us. | ||||||||
| Q6:Do you accept a small quantity order? | A:Yes,we accept a small quantity order. | ||||||||
| Q7:Are you trading company or manufacturer? | A:We are factory. | ||||||||
| Q8: Can I mix different models in one container? | A:Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ. | ||||||||
| Q9: How is the payment terms? | A:TT 100% or T/T 30% in advance then T/T 70% before shipment. | ||||||||
| Q10:Can I get a discount? | A:Discount can be negotiated when we talked about the order. Anyway we will try our best to provide you the best quality with better price and best shipping rate. | ||||||||
