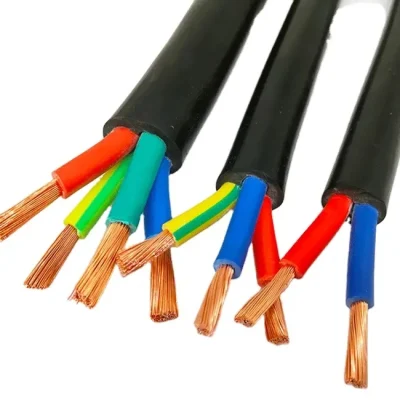

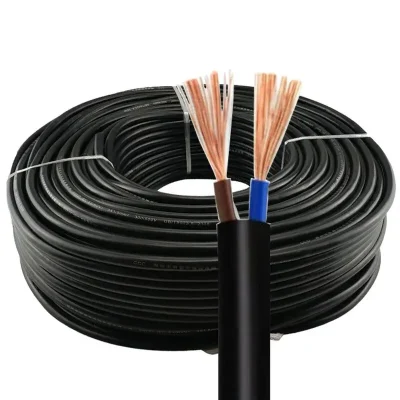

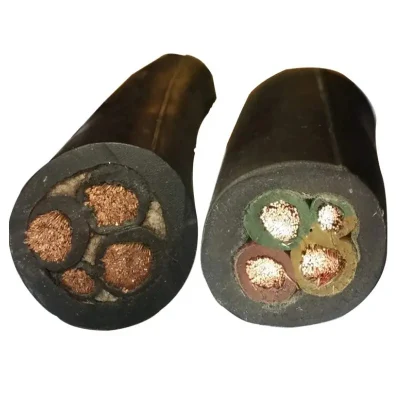

Hot Sale Rubber Insulated Power Cable 2.5 mm 150mm Yc Yz Yzw Ycw Multi Core Rubber Cable electric wire cable

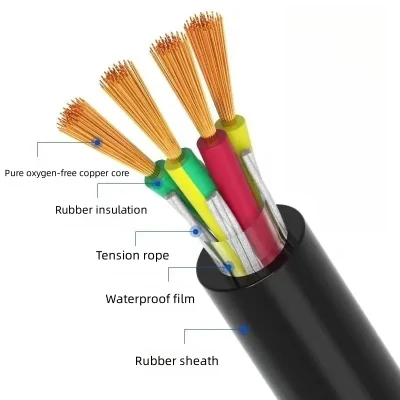

1.  Conductor: Class 5 flexible plain copper to BS EN 60228:2005(previously BS6360)
2. Insulation: EPR(Ethylene Propylene Rubber) Type E14 to BS7655
3. Sheath: PCP(Polychioroprene) Type EM3 to BS7655
4. Sheath Color: Black
5. Voltage: 450/750V
6. Temperature Rating: conductor operation temperature -30°C to +60°C(85°C max)
7. Minimum Bending Radius: Up to 25mm2:6xoverall diameter;
8. Above to 25mm2: 8x overall diameter
9. Standards: BS7919 CENELEC HD22 4S4



Product Parameters



Specifications	Voltage: AC 200V~DC 400V    Standard: IEC60245    Uses: This product is suitable for electric welding machines with a ground voltage not greater than 200V and a pulsating current value of 400V.
Conductor Nominal Section (mm2)	Number/Diameter of Core(mm)	Thickness of Section Sheath (mm)	Average Outer Diameter (mm2)	Minimum insulation resistance (70ºC)	Recommended value of carrying capacity (A)	Reference weight (KG,KM)
10	322/0.2	1.8	7.5	0.012	10	37
16	513/0.2	2.0	9.2	0.01	13	47
25	798/0.2	2.0	10.5	0.012	8	44
35	1121/0.2	2.0	11.5	0.01	10	58
50	1596/0.2	2.2	13.5	0.011	13	58
70	2214/0.2	2.4	15	0.01	16	66
95	2997/0.2	2.6	17	0.01	20	89
120	1702/0.3	2.8	19	0.009	27	137
150	2135/0.3	3.0	21	0.007	38	205

Qingdao Qianwang Electric Co.,ltd is specialized in all kinds of Cables and Electric Wires with 15 years. We have the most advanced automatic production lines, first-class testing & inspection equipment and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet standards.
    We also Conduit Pipes, Conduit Saddle, Cable Trays ect. to offer clients one-stop service.

1. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

2.What can you buy from us?
   Wires,Cables ,Cable Assemblies,Cable Trays&Condiut pipe.

3.Can I get a free sample?
   Sure,we offer free sample,you only pay the freight.

4.Payment

   Our payment term is usually T/T 30% in advanced, the balance before picking up the goods.L/C,PayPal,Western Union are also acceptable.
