Basic Info.
Model NO.
TYA-5
Type
Galvanized
Wide in Width
0.5m
Surface Treatment
Hot-DIP Galvanized, Electro Galvanized
Metal Wire Drawing
Cold Drawing
Status
Soft State
Thickness
Metal Thick Wire
Function
Anti-Rust
Tensile Strength
350-680n/mm2
Size
0.7-1.6mm
Zinc Coating
8-250g/mm2
Elogation Rate
18-25
Transport Package
Inner Plastic Outer Hession Cloth
Specification
C 0.06-0.12%
Trademark
TIANYUE
Origin
Hebei, China
HS Code
721720000
Production Capacity
5000tons/Month
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 14.00cm
Package Gross Weight
25.000kg
Product Description

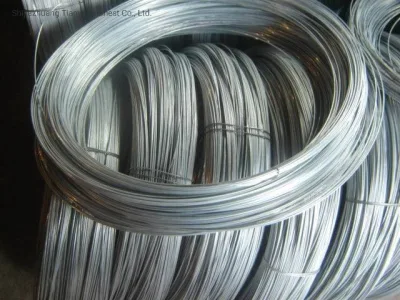

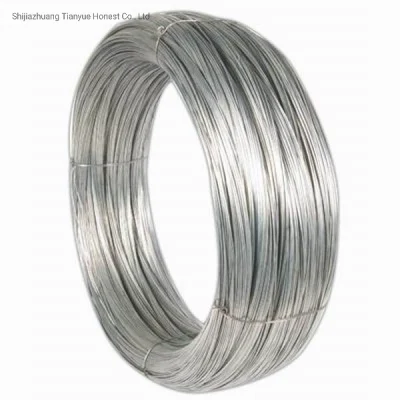

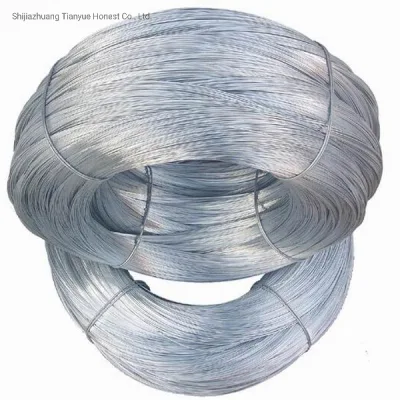

Hot Dipped/Electric Galvanized Mild Steel Binding Wire/Low Carbon Wire
Galvanized wire can be divided into two categories: Electro galvanized wire and hot dipped galvanized
Though wire drawing, annealing, acid cleaning and galvanizing processes
With the features of being economical, soft, clean, easy to bind
Galvanized wire technical data
Wire diameter: Bwg8~ Bwg22
Zinc coating: 8-250g/mm2
Material: : Q195, Q235, SAE1006/1008 SAE1050/1065
Tensile strength: 350-680N/mm2

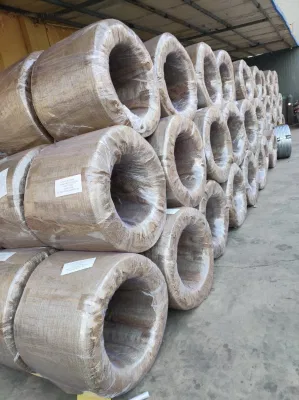

Galvanized wire Packing way
Package: Roll/reel
1Package: Inner plastic, outer weave
2Inner plastic, outer hessian cloth
Roll/reel Weight: 1kg--1000kg
Specific packaging requests are also accommodated
Galvanized wire Introduction:
Its solid and durable. Widely used in industry, agriculture and stock raising. We mainly produce the galvanized wire ( 16#--22#) in architecture. In addition, the galvanized wire is also can used as binding wire
The daily capacity is 200 tons.
We can customize U type and other type according to your requirement
Galvanized wire can be divided into two categories: Electro galvanized wire and hot dipped galvanized
Though wire drawing, annealing, acid cleaning and galvanizing processes
With the features of being economical, soft, clean, easy to bind
Galvanized wire technical data
Wire diameter: Bwg8~ Bwg22
Zinc coating: 8-250g/mm2
Material: : Q195, Q235, SAE1006/1008 SAE1050/1065
Tensile strength: 350-680N/mm2
Galvanized wire Packing way
Package: Roll/reel
1Package: Inner plastic, outer weave
2Inner plastic, outer hessian cloth
Roll/reel Weight: 1kg--1000kg
Specific packaging requests are also accommodated
Galvanized wire Introduction:
Its solid and durable. Widely used in industry, agriculture and stock raising. We mainly produce the galvanized wire ( 16#--22#) in architecture. In addition, the galvanized wire is also can used as binding wire
The daily capacity is 200 tons.
We can customize U type and other type according to your requirement
| Galvanized Wire | |||
| Wire Gauge | SWG(mm) | BWG(mm) | Metric(mm) |
| 8 | 4.05 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | 4.00 |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | 2.50 |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.84 | 0.90 |
| 21 | 0.81 | 0.81 | 0.80 |
| 22 | 0.71 | 0.71 | 0.70 |
