High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm

Find high quality UL approved house wire electric cable copper electric THHN wires cables 2.5mm at our factory. We prioritize safety and durability.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
THHN
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Certification
ISO9001, CCC
Voltage
600V
Insulation Color
Blue,Black,Grey,Yellow
Product
Thhn Cable
Service
OEM
Jacket
Nylon
Transport Package
Roll Packing& Plastic Drum
Specification
AWG 20 - AWG 10
Trademark
QINSHAN
Origin
China
HS Code
8544492900
Production Capacity
600000000 Rolls /Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg

Product Description

High Quality UL Approvel house wire electric cable copper electric thhn wires cables 2.5mm


Thermoplastic Insulated, Nylon Sheathed Heat, Gasoline&Oil Resistant 600 Volt Copper

Construction :
1.Conductor :Solid or Stranding Soft Drawn Copper Wire
2.Insulation  : Tough Heat And Moisture Resistant PVC  (Polyvinyl Chloride)
3.Jacket: Nylon(Tough Polyamide)
4.Color Available&Abbreviations:
    BK-Black/ WE-White/ RD-Red /BE-Blue /GN-Green /YW-Yellow /
  OE-Orange / BN-Brown/ GY-Grey /PK-Pink /PE-Purple

Standard:
ASTM- B3,B8
UL83,UL758,UL1063

Technial:
Rated Voltage:600V
Rated Temperature:
THHN: -20°C-90°C;THWN:-20°C-75°C;THWN:-20°C-90°C

Application:
THHN building wire is primarily used in conduit and cable trays for services,feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Designed to be installed without application of a pulling lubricant.
These wires have multiple ratings. Depending upon the product application, allowable Temperatures are as follows:
THHN - Dry locations not to exceed 90° C
THWN- Wet or oil locations not to exceed 75° C or dry  not to exceed 90° C
THWN-2- Wet or dry locations not to exceed 90° C or  oil not to exceed 75° C
MTW- locations Wet or  oil not to exceed 60° C or dry not to exceed 90° C
AWM- Dry locations not to exceed 105° C
Part Number
AWG Size
Conductor No./mm
Nom.O.D.(cm)
Nom.Insul.Thick.(cm)
Approx LBS/MFT
Ampacity@90ºC
THHN 14 1
14
Solid
0.26
0.04
15
15
THHN 14 19
14
19/0.38
0.28
0.04
16
15
THHN 12 1
12
Solid
0.30
0.04
23
20
THHN 12 19
12
19/0.47
0.33
0.04
24
20
THHN 10 1
10
Solid
0.41
0.05
38
30
THHN 10 19
10
19/0.60
0.41
0.05
38
30
THHN 8 19
8
19/0.75
0.54
0.08
63
55
THHN 6 19
6
19/0.95
0.63
0.08
95
75
THHN 4 19
4
19/1.19
0.81
0.10
152
95
THHN 3 19
3
19/1.33
0.88
0.10
189
110
THHN 2 19
2
19/1.50
0.96
0.10
234
130
THHN 1 19
1
19/.0664
1.10
0.13
299
150
THHN 1/0 19
1/0
19/1.68
1.20
0.13
372
170
THHN 2/0 19
2/0
19/1.89
1.32
0.13
462
195
THHN 4/0 19
4/0
19/2.67
1.58
0.13
718
260

Size
AWG or
/MCM(kcmil)		 No.of Strands
Insulation
thickness
Insulation
thickness		 Jacket thickness Jacket thickness Nominal
Overall Diameter		 Nominal
Overall Diameter		 Approx.
weight		 Approx.
weight		 Ampacity
(A)		 Ampacity
(A)
mm mil mm mil mm mil kg/km lbs/kft 70ºC 95ºC
14* solid 0.38 15 0.10 4 2.60 102 22 15 15 15
12* solid 0.38 15 0.10 4 3.02 119 34 23 20 20
10* solid 0.51 20 0.10 4 3.81 150 54 36 30 30
14 7 0.38 15 0.10 4 2.70 106 23 16 15 15
12 7 0.38 15 0.10 4 3.20 126 35 24 20 20
10 7 0.51 20 0.10 4 4.00 157 55 38 30 30
8 7 0.76 30 0.13 5 5.30 209 89 60 50 65
6 7 0.76 30 0.13 5 6.20 244 134 90 65 75
4 7 1.02 40 0.15 6 7.80 307 215 144 85 95
3 7 1.02 40 0.15 6 8.60 339 266 179 100 110
2 7 1.02 40 0.15 6 9.20 362 329 221 115 130
1 7 1.27 50 0.18 7 10.60 417 422 284 130 150
14 19 0.38 15 0.10 4 2.78 109 23 16 155 15
12 19 0.38 15 0.10 4 3.27 129 35 24 20 20
10 19 0.51 20 0.10 4 4.11 162 55 38 30 30
8 19 0.76 30 0.13 5 5.43 214 90 61 50 65
6 19 0.76 30 0.13 5 6.36 250 136 92 65 75
4 19 1.02 40 0.15 6 8.11 319 218 147 85 95
3 19 1.02 40 0.15 6 8.82 347 270 182 100 110
2 19 1.02 40 0.15 6 9.63 379 334 225 115 130
1 19 1.27 50 0.18 7 11.09 437 428 288 130 150
1/0 19 1.27 50 0.18 7 12.08 476 531 357 150 170
2/0 19 1.27 50 0.18 7 13.34 525 669 449 175 195
3/0 19 1.27 50 0.18 7 14.64 576 832 559 200 225
4/0 19 1.27 50 0.18 7 16.04 631 1037 697 230 260
250 37 1.52 60 0.20 8 17.79 700 1234 829 255 290
300 37 1.52 60 0.20 8 19.09 752 1467 986 286 320
350 37 1.52 60 0.20 8 20.39 803 1701 1143 310 350
400 37 1.52 60 0.20 8 21.49 846 1931 1297 335 380
500 37 1.52 60 0.20 8 23.59 929 2394 1608 380 430
600 37 1.78 70 0.23 9 26.17 1030 2880 1934 420 475
750 37 1.78 70 0.23 9 28.77 1133 3570 2398 475 535
1000 37 1.78 70 0.23 9 32.57 1282 4717 3169 545 615

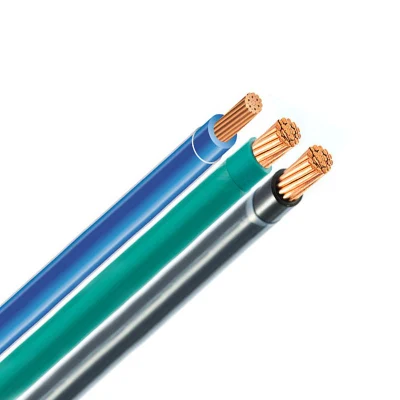

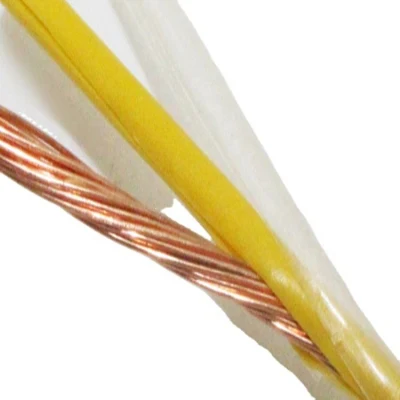

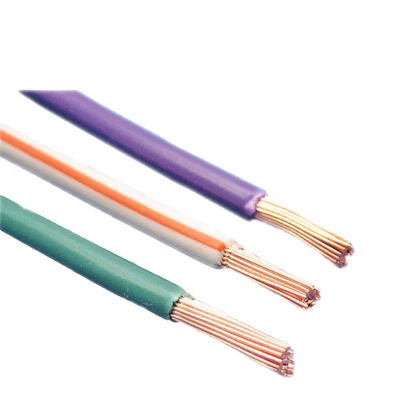

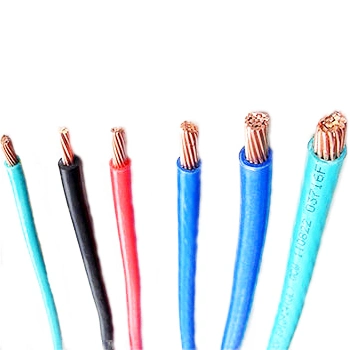

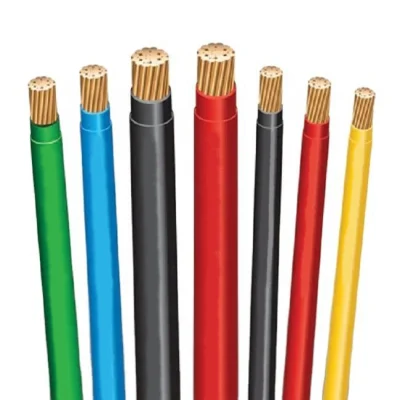

Product show:High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm
High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm High Quality UL Approvel House Wire Electric Cable Copper Electric Thhn Wires Cables 2.5mm
