Basic Info.
Model NO.
HBQ-G102
Certification
CCC, ISO, CE, Vda
Warranty
24 Months
Automatic Grade
Automatic
Transport Package
According to The Actual Situation
Specification
800*750*1450mm
Trademark
HACINT
Origin
China
HS Code
8479819000
Production Capacity
2 Sets Per Month
Product Description

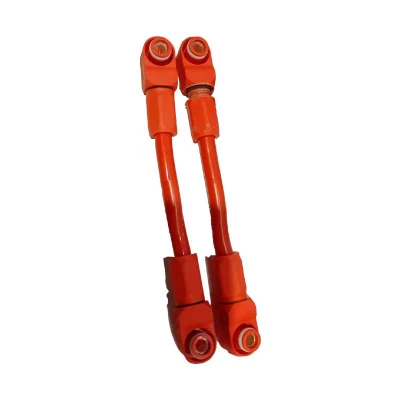

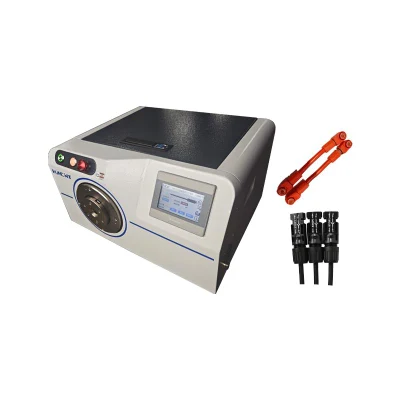

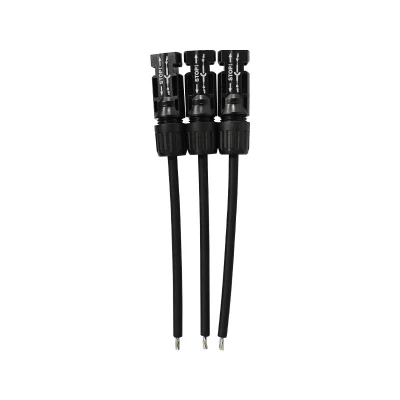

HBQ-G102 Nut tightening machine apply to photovoltaic and energy storage connector wire harness
HBQ-G102 Nut tightening machine is a new generation of semi-automatic connector nut tightening equipment. The equipment is mainly composed of servo motor, encoder, PLC, photoelectric sensor and cylinder. The equipment has the function of error-proofing and fool-proofing. When the wrong products are put into the equipment, the equipment will not respond to start, which can effectively prevent the defective products from flowing into the next process. It has high tightening accuracy, simple operation, and stable performance, and saves manpower effectively.
Features
Convenient operation: After the machine is turned on and materials is put in, the connector can be automatically tightened
Multimode startup: Three ways of starting modes, button control, foot control and sensor control, can be selected according to different needs, which effectively improves efficiency.
Targeted error-proofing: Male and female head connectors distinguish, put into the specified connector to work.Terminal error-proofing function, when there is a problem with the connector or terminal, the equipment will not run, which can effectively avoid bad products flowing into the back-end process.
Specifications
HBQ-G102 Nut tightening machine is a new generation of semi-automatic connector nut tightening equipment. The equipment is mainly composed of servo motor, encoder, PLC, photoelectric sensor and cylinder. The equipment has the function of error-proofing and fool-proofing. When the wrong products are put into the equipment, the equipment will not respond to start, which can effectively prevent the defective products from flowing into the next process. It has high tightening accuracy, simple operation, and stable performance, and saves manpower effectively.
Features Convenient operation: After the machine is turned on and materials is put in, the connector can be automatically tightened
Multimode startup: Three ways of starting modes, button control, foot control and sensor control, can be selected according to different needs, which effectively improves efficiency.
Targeted error-proofing: Male and female head connectors distinguish, put into the specified connector to work.Terminal error-proofing function, when there is a problem with the connector or terminal, the equipment will not run, which can effectively avoid bad products flowing into the back-end process.
Specifications
| Type | HBQ-G102 |
| Range | 0-5mm(Core components can be changed according to actual product requirements) |
| Accuracy | ±0.2mm |
| Efficiency | 20-30PCS/min( The actual manual feeding speed shall prevail) |
| Power | 400W |
| Power supply | 220V/50Hz |
| Air supply | 0.5Mpa - 0.7Mpa |
| Weight | Approx.50KG |
| Dimension | Approx.500x400x260 (Unit: mm) |
