Basic Info.
Model NO.
H05VV5-F
Material Shape
Round Wire
Range of Application
in The Industrial Plants, Machinery
Certification
CE, CCC, RoHS, VDE
Brand
Hxin
Transport Package
Carton and Strong Wooden Drum
Specification
Cores 12*0.5 mm2
Trademark
Hxin
Origin
Shanghai, China
Production Capacity
1000000meter
Product Description
Product Description

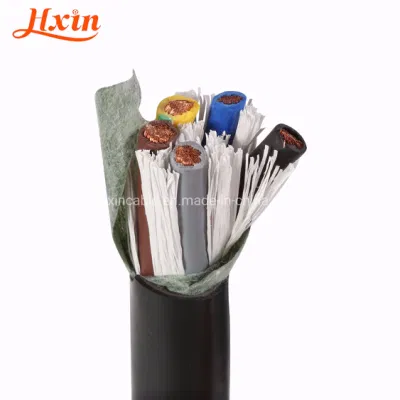

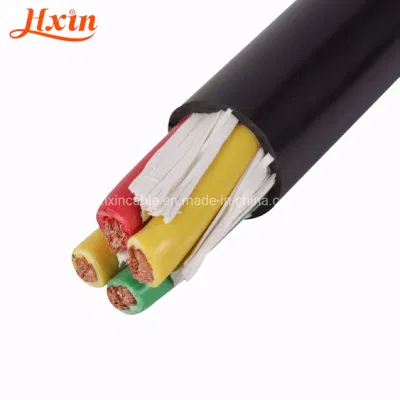

Conductor: soft finely stranded bare copper wires following VDE-0295 Cl 5, IEC 60228 Cl-5
Conductor Insulation: PVC T12,following VDE-0281 part one
Colour code: color code in accordance with HD402
Outer jacket materia: PVC/TM2 type PVC
Jacket colour: Black(RAL9005)
Application Standard: <HAR> HD 21.13 S1,VDE-0281 part 13, CEI 20-20/13, CEI 20-35 (EN60332-1), CEI 20-52, UL 2464
Technical Parameters
Rated voltage: 300/300V
Test voltage: 2000V
Minimum bending radius: Fixed installation:4×D (D=outer cable diameter)
Movable installation:7.5×D (D=outer cable diameter)
Application temperature:Fixed installation:-40-+70ºC
movable installation:-5 to +70ºC
Flame resistance:flame resistance and self-extinguishing according to IEC 60332-1-2
Insulation resistance: >20 Gohm x cm
Product Features 1.Comply with EU coordination standards
Application
Conductor Insulation: PVC T12,following VDE-0281 part one
Colour code: color code in accordance with HD402
Outer jacket materia: PVC/TM2 type PVC
Jacket colour: Black(RAL9005)
Application Standard: <HAR> HD 21.13 S1,VDE-0281 part 13, CEI 20-20/13, CEI 20-35 (EN60332-1), CEI 20-52, UL 2464
Technical Parameters
Rated voltage: 300/300V
Test voltage: 2000V
Minimum bending radius: Fixed installation:4×D (D=outer cable diameter)
Movable installation:7.5×D (D=outer cable diameter)
Application temperature:Fixed installation:-40-+70ºC
movable installation:-5 to +70ºC
Flame resistance:flame resistance and self-extinguishing according to IEC 60332-1-2
Insulation resistance: >20 Gohm x cm
Product Features
1.Comply with EU coordination standards
2.Ultrafine conductor, soft, small bending Angle
3.can able to bear external mechanical forces and abrasion resistance
Certification
ROHS,CE
Application
Suitable for dry, wet environment, but cannot be used in the outdoors.they are used for shielding terminals and connection cables In control, measurement and signal technology.Copper wire braided shield outside interference, such as electromagnetic field and the spurious frequency.
Used as signal and pulse cables in the industrial plants, machinery and process control and inspection systems.
Used as signal and pulse cables in the industrial plants, machinery and process control and inspection systems.
