Basic Info.
Model NO.
AVSS
Material Shape
Round Wire
Range of Application
Electric Cable for Power
Certification
ISO9001, CE, RoHS
Brand
Hanker
Transport Package
100m/Roll
Specification
0.3-1.25 mm2
Trademark
HANKER
Origin
China
HS Code
8544492900
Production Capacity
60000m/Month
Product Description

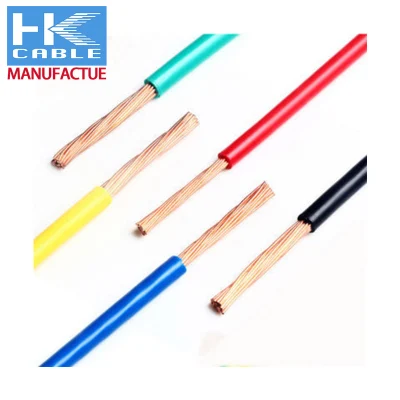

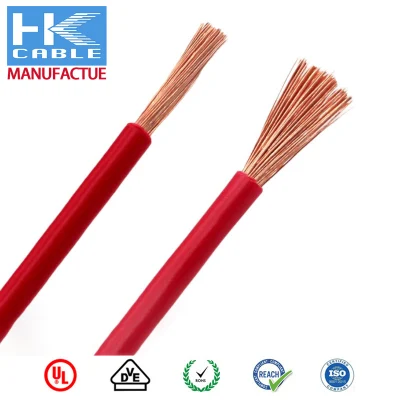

0.3f 0.5f 0.75f 1.25f 2f Japan Standred Copper Avss Auto Cable Automotive Wire and Cable made in China
APPLICATION AND DESCRIPTION
This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and Motorcycles.
CONSTRUCTION
- Conductor: Cu-ETP1 bare according to JIS 3120
- Insulation: PVC
- Standard Compliance: JASO D 611-94
TECHNICAL PARAMETERS
Operating temperature: -40 °C to +85 °C
Intermittent temperature: 120°C
DIMENSIONS AND WEIGHT
| Conductor Construction | Insulation | Cable | |||||
| Nominal cross- section | No. and Dia. of Wires | Diameter max. | Electrical Resistance at 20°C Max. | Thickness Wall nom. | Overall Diameter min. | Overall Diameter max. | Weight Approx. |
| mm2 | No./mm | mm | mΩ/m | mm | mm | mm | kg/km |
| 1 x 0.30 | 7/0.26 | 0.8 | 50.2 | 0.3 | 1.4 | 1.5 | 5 |
| 1 x 0.50 | 7/0.32 | 1 | 32.7 | 0.3 | 1.6 | 1.7 | 7 |
| 1 x 0.85 | 19/0.24 | 1.2 | 21.7 | 0.3 | 1.8 | 1.9 | 10 |
| 1 x 1.25 | 19/0.29 | 1.5 | 14.9 | 0.3 | 2.1 | 2.2 | 14 |
| 1 x 0.3f | 19/0.16 | 0.8 | 48.8 | 0.3 | 1.4 | 1.5 | 5 |
| 1 x 0.5f | 19/0.19 | 1 | 34.6 | 0.3 | 1.6 | 1.7 | 7 |
| 1 x 0.75f | 19/0.23 | 1.2 | 23.6 | 0.3 | 1.8 | 1.9 | 10 |
| 1 x 1.25f | 37/0.21 | 1.5 | 14.6 | 0.3 | 2.1 | 2.2 | 14 |
| 1 x 2f | 37/0.26 | 1.8 | 9.5 | 0.4 | 2.6 | 2.7 | 22 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
Founded in Feb 2010, Hai Yan Hanker Electronic Co.Ltd; is a high-tech enterprise with all vitality, potential and comprehensive strength.
The company is located in Wu Yuan Industrial Park of Hai Yan District in Jia Xing City and the location is very convenient with good
transportation links to the neighboring Shang Hai and Ning Bo. On the basis of technology development, the company has taken in a
group of experienced personnels who are talented in senior management, marketing and skills of producing. In the company, great
attention is paid to basic management, stable quality, continuously improving pre-sale service, sale and after-sale services, and enhancing
the market competitiveness of our products. Main products of our company: Alarm security cable, Telephone cable, Battery cable, Audio
speaker cable, Amplifier installation kit, Microphone cable, Power cable, Electronic cable, Accessory, etc. Since its foundation, the company
keeps living up to the belief of :"honest selling, best quality, people-orientation and benefits to customers." We are doing everything to offer
our customers with best services and best products. We promise that we'll be responsible all the way to the end once our services begin.
