Product Description

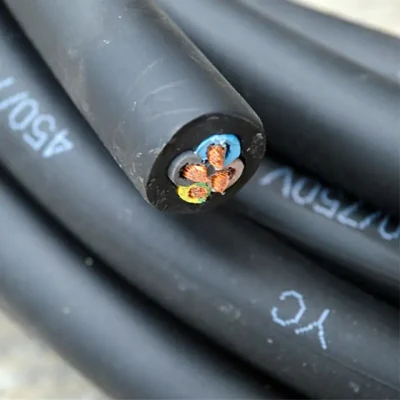

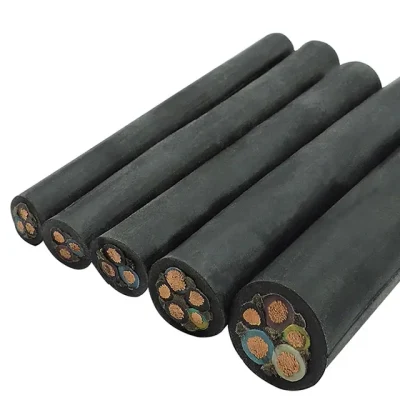

electrical wires supplies cable flexible rubber cable ycw supplier philippines
Designed primarily as a trailing cable for use in the supply of energy for portable or mobile equipment. Heavy Duty Harmonised Cables are not only robust but also extremely flexible. PCP neoprene is also oil and flame retardant in accordance with BS6007 Table 4 Cenelec code HO 7RN-F
Standard
Manufactured to Din 57282, VDE 0282, VDE 0165, VDE 0472 and BS6500 ( up to 5 cores ).
Constructure

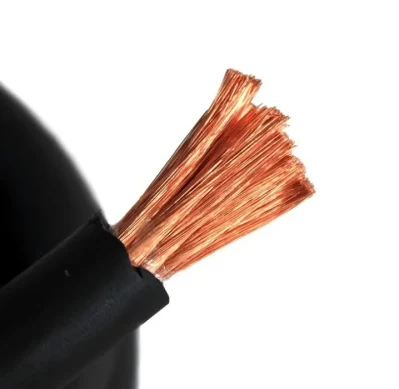

Conductor: Flexible Class5 Tinned class5 Copper to be BS6360
Insulation: Ethlylene Propylene Rubber (E.P.R). , Type EI 4 to BS 7655
Sheath: PCP Neoprene Rubber Type EM2 to BS 7655
Technical Data
Voltage: 450/750V H-Harmonised Approval
Test voltage:2500V 7-450/750Rated
Operating Temperature range:-20ºC+85ºC R-Natural or synthetic Rubber
Bending Radius :15xcable Diameter N-Polychloroprene(PCP Neoprene)
F-Flexible stranded condctor

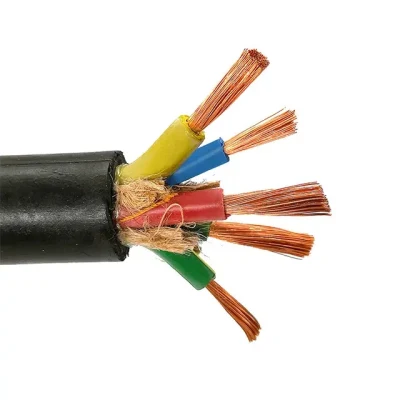

| 1 Core: | Black |
| 2 Core: | Brown, Blue |
| 3 Core: | Green/yellow, Brown, Blue |
| 4 Core: | Green/Yellow, Black, Blue, Brown |
| 5 Core: | Green/Yellow, Black, Blue, Brown, Black |
| Core NO × Nominal cross section of Conductor mm2 | The largest single line diameter in conductor mm | Insulation thickness rated value mm | sheath thickness rated value mm mm | mean outside diameter mm | Maximum conductor resistance at 20ºC Ω/km | ||
| lower limit | upper limit | Copper core | Tin plating Copper core | ||||
| 2×0.75 | 0.21 | 0.6 | 0.8 | 5.7 | 7.4 | 26.0 | 26.7 |
| 2×1 | 0.21 | 0.6 | 0.9 | 6.1 | 8.0 | 19.5 | 20.0 |
| 2×1.5 | 0.26 | 0.8 | 1.0 | 7.6 | 9.8 | 13.3 | 13.7 |
| 2×2.5 | 0.26 | 0.9 | 1.1 | 9.0 | 11.6 | 7.98 | 8.21 |
| 3×0.75 | 0.21 | 0.6 | 0.9 | 6.2 | 8.1 | 26.0 | 26.7 |
| 3×1 | 0.21 | 0.6 | 0.9 | 6.5 | 8.5 | 19.5 | 20.0 |
| 3×1.5 | 0.26 | 0.8 | 1.0 | 8.0 | 10.4 | 13.3 | 13.7 |
| 3×2.5 | 0.26 | 0.9 | 1.1 | 9.6 | 12.4 | 7.98 | 8.21 |
| 4×0.75 | 0.21 | 0.6 | 0.9 | 6.8 | 8.8 | 26.0 | 26.7 |
| 4×1 | 0.21 | 0.6 | 0.9 | 7.1 | 9.3 | 19.5 | 20.0 |
| 4×1.5 | 0.26 | 0.8 | 1.1 | 9.0 | 11.6 | 13.3 | 13.7 |
| 4×2.5 | 0.26 | 0.9 | 1.2 | 10.7 | 13.8 | 7.98 | 8.21 |
| 5×0.75 | 0.21 | 0.6 | 1.0 | 7.6 | 9.9 | 26.0 | 26.7 |
| 5×1 | 0.21 | 0.6 | 1.0 | 8.0 | 10.3 | 19.5 | 20.0 |
| 5×1.5 | 0.26 | 0.8 | 1.1 | 9.8 | 12.7 | 13.3 | 13.7 |
| 5×2.5 | 0.26 | 0.9 | 1.3 | 11.9 | 15.3 | 7.98 | 8.21 |
| MODLE | NAME | RATED VOLTAGE (V) | CORE | NOMINAL CROSS SECTION OF CONDUCTOR mm2 | EXECUTIVE STANDARD |
| YC | Heavy duty flexible rubber sheathed cable | 450/750 | 1 2 3-5 4(3+1) 5(3+2/4+1) | 1.5-400 1.5-95 1.5-150 2.5-150 2.5-150 | JB8735.2-2016 |
| MODLE | NAME | RATED VOLTAGE(V) | CORE | NOMINAL CROSS SECTION OF CONDUCTOR mm2 | EXECUTIVE STANDARD |

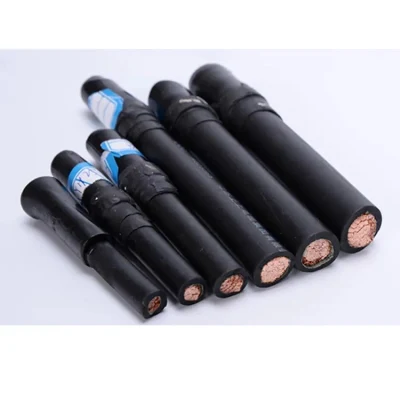

| 60245 IEC 81 (YH) 60245IEC 82(YHF) | Welding machine cable | | 1 | 16~95 | GB/T5013.6-2008 |
Qingdao Qianwang Electric Co.,ltd is specialized in all kinds of Cables and Electric Wires with 15 years. We have the most advanced automatic production lines, first-class testing & inspection equipment and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet standards.
We also Conduit Pipes, Conduit Saddle, Cable Trays ect. to offer clients one-stop service.
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Wires,Cables ,Cable Assemblies,Cable Trays&Condiut pipe.
3.Can I get a free sample?
Sure,we offer free sample,you only pay the freight.
4.Payment
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods.L/C,PayPal,Western Union are also acceptable.
