Basic Info.
Model NO.
THHN
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Certification
ISO9001, CCC
Voltage
600V
Insulation Color
Blue,Black,Grey,Yellow
Product
Thhn Cable
Service
OEM
Jacket
Nylon
Transport Package
Roll Packing& Plastic Drum
Specification
AWG 20 - AWG 10
Trademark
QINSHAN
Origin
China
HS Code
8544492900
Production Capacity
600000000 Rolls /Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description
Electrical cable wire 3.5mm 4mm cables electrical home wiring THHN wire
Thermoplastic Insulated, Nylon Sheathed Heat, Gasoline&Oil Resistant 600 Volt Copper
Construction :
1.Conductor :Solid or Stranding Soft Drawn Copper Wire
2.Insulation : Tough Heat And Moisture Resistant PVC (Polyvinyl Chloride)
3.Jacket: Nylon(Tough Polyamide)
4.Color Available&Abbreviations:
BK-Black/ WE-White/ RD-Red /BE-Blue /GN-Green /YW-Yellow /
OE-Orange / BN-Brown/ GY-Grey /PK-Pink /PE-Purple
Standard:
ASTM- B3,B8
UL83,UL758,UL1063
Technial:
Rated Voltage:600V
Rated Temperature:
THHN: -20°C-90°C;THWN:-20°C-75°C;THWN:-20°C-90°C
Application:
THHN building wire is primarily used in conduit and cable trays for services,feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Designed to be installed without application of a pulling lubricant.
These wires have multiple ratings. Depending upon the product application, allowable Temperatures are as follows:
THHN - Dry locations not to exceed 90° C
THWN- Wet or oil locations not to exceed 75° C or dry not to exceed 90° C
THWN-2- Wet or dry locations not to exceed 90° C or oil not to exceed 75° C
MTW- locations Wet or oil not to exceed 60° C or dry not to exceed 90° C
AWM- Dry locations not to exceed 105° C

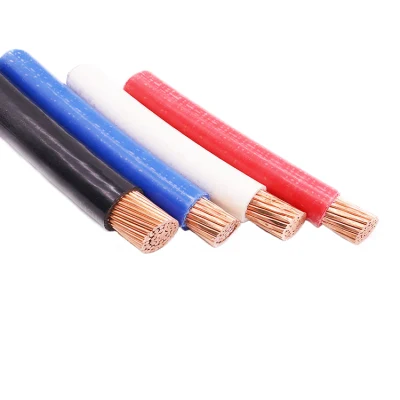

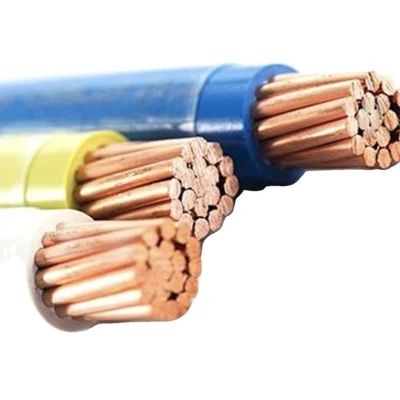

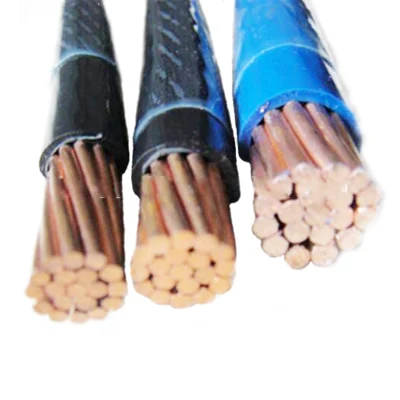

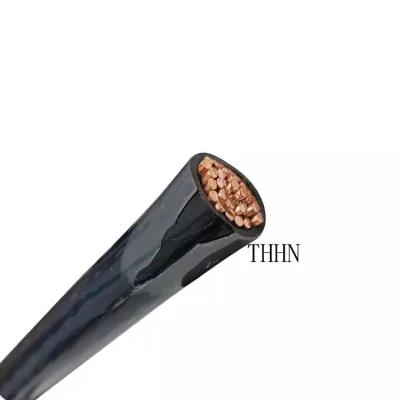

Product show:
Thermoplastic Insulated, Nylon Sheathed Heat, Gasoline&Oil Resistant 600 Volt Copper
Construction :
1.Conductor :Solid or Stranding Soft Drawn Copper Wire
2.Insulation : Tough Heat And Moisture Resistant PVC (Polyvinyl Chloride)
3.Jacket: Nylon(Tough Polyamide)
4.Color Available&Abbreviations:
BK-Black/ WE-White/ RD-Red /BE-Blue /GN-Green /YW-Yellow /
OE-Orange / BN-Brown/ GY-Grey /PK-Pink /PE-Purple
Standard:
ASTM- B3,B8
UL83,UL758,UL1063
Technial:
Rated Voltage:600V
Rated Temperature:
THHN: -20°C-90°C;THWN:-20°C-75°C;THWN:-20°C-90°C
Application:
THHN building wire is primarily used in conduit and cable trays for services,feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Designed to be installed without application of a pulling lubricant.
These wires have multiple ratings. Depending upon the product application, allowable Temperatures are as follows:
THHN - Dry locations not to exceed 90° C
THWN- Wet or oil locations not to exceed 75° C or dry not to exceed 90° C
THWN-2- Wet or dry locations not to exceed 90° C or oil not to exceed 75° C
MTW- locations Wet or oil not to exceed 60° C or dry not to exceed 90° C
AWM- Dry locations not to exceed 105° C
Part Number | AWG Size | Conductor No./mm | Nom.O.D.(cm) | Nom.Insul.Thick.(cm) | Approx LBS/MFT | Ampacity@90ºC |
THHN 14 1 | 14 | Solid | 0.26 | 0.04 | 15 | 15 |
THHN 14 19 | 14 | 19/0.38 | 0.28 | 0.04 | 16 | 15 |
THHN 12 1 | 12 | Solid | 0.30 | 0.04 | 23 | 20 |
THHN 12 19 | 12 | 19/0.47 | 0.33 | 0.04 | 24 | 20 |
THHN 10 1 | 10 | Solid | 0.41 | 0.05 | 38 | 30 |
THHN 10 19 | 10 | 19/0.60 | 0.41 | 0.05 | 38 | 30 |
THHN 8 19 | 8 | 19/0.75 | 0.54 | 0.08 | 63 | 55 |
THHN 6 19 | 6 | 19/0.95 | 0.63 | 0.08 | 95 | 75 |
THHN 4 19 | 4 | 19/1.19 | 0.81 | 0.10 | 152 | 95 |
THHN 3 19 | 3 | 19/1.33 | 0.88 | 0.10 | 189 | 110 |
THHN 2 19 | 2 | 19/1.50 | 0.96 | 0.10 | 234 | 130 |
THHN 1 19 | 1 | 19/.0664 | 1.10 | 0.13 | 299 | 150 |
THHN 1/0 19 | 1/0 | 19/1.68 | 1.20 | 0.13 | 372 | 170 |
THHN 2/0 19 | 2/0 | 19/1.89 | 1.32 | 0.13 | 462 | 195 |
THHN 4/0 19 | 4/0 | 19/2.67 | 1.58 | 0.13 | 718 | 260 |
Size AWG or /MCM(kcmil) | No.of Strands | Insulation thickness | Insulation thickness | Jacket thickness | Jacket thickness | Nominal Overall Diameter | Nominal Overall Diameter | Approx. weight | Approx. weight | Ampacity (A) | Ampacity (A) |
mm | mil | mm | mil | mm | mil | kg/km | lbs/kft | 70ºC | 95ºC | ||
14* | solid | 0.38 | 15 | 0.10 | 4 | 2.60 | 102 | 22 | 15 | 15 | 15 |
12* | solid | 0.38 | 15 | 0.10 | 4 | 3.02 | 119 | 34 | 23 | 20 | 20 |
10* | solid | 0.51 | 20 | 0.10 | 4 | 3.81 | 150 | 54 | 36 | 30 | 30 |
14 | 7 | 0.38 | 15 | 0.10 | 4 | 2.70 | 106 | 23 | 16 | 15 | 15 |
12 | 7 | 0.38 | 15 | 0.10 | 4 | 3.20 | 126 | 35 | 24 | 20 | 20 |
10 | 7 | 0.51 | 20 | 0.10 | 4 | 4.00 | 157 | 55 | 38 | 30 | 30 |
8 | 7 | 0.76 | 30 | 0.13 | 5 | 5.30 | 209 | 89 | 60 | 50 | 65 |
6 | 7 | 0.76 | 30 | 0.13 | 5 | 6.20 | 244 | 134 | 90 | 65 | 75 |
4 | 7 | 1.02 | 40 | 0.15 | 6 | 7.80 | 307 | 215 | 144 | 85 | 95 |
3 | 7 | 1.02 | 40 | 0.15 | 6 | 8.60 | 339 | 266 | 179 | 100 | 110 |
2 | 7 | 1.02 | 40 | 0.15 | 6 | 9.20 | 362 | 329 | 221 | 115 | 130 |
1 | 7 | 1.27 | 50 | 0.18 | 7 | 10.60 | 417 | 422 | 284 | 130 | 150 |
14 | 19 | 0.38 | 15 | 0.10 | 4 | 2.78 | 109 | 23 | 16 | 155 | 15 |
12 | 19 | 0.38 | 15 | 0.10 | 4 | 3.27 | 129 | 35 | 24 | 20 | 20 |
10 | 19 | 0.51 | 20 | 0.10 | 4 | 4.11 | 162 | 55 | 38 | 30 | 30 |
8 | 19 | 0.76 | 30 | 0.13 | 5 | 5.43 | 214 | 90 | 61 | 50 | 65 |
6 | 19 | 0.76 | 30 | 0.13 | 5 | 6.36 | 250 | 136 | 92 | 65 | 75 |
4 | 19 | 1.02 | 40 | 0.15 | 6 | 8.11 | 319 | 218 | 147 | 85 | 95 |
3 | 19 | 1.02 | 40 | 0.15 | 6 | 8.82 | 347 | 270 | 182 | 100 | 110 |
2 | 19 | 1.02 | 40 | 0.15 | 6 | 9.63 | 379 | 334 | 225 | 115 | 130 |
1 | 19 | 1.27 | 50 | 0.18 | 7 | 11.09 | 437 | 428 | 288 | 130 | 150 |
1/0 | 19 | 1.27 | 50 | 0.18 | 7 | 12.08 | 476 | 531 | 357 | 150 | 170 |
2/0 | 19 | 1.27 | 50 | 0.18 | 7 | 13.34 | 525 | 669 | 449 | 175 | 195 |
3/0 | 19 | 1.27 | 50 | 0.18 | 7 | 14.64 | 576 | 832 | 559 | 200 | 225 |
4/0 | 19 | 1.27 | 50 | 0.18 | 7 | 16.04 | 631 | 1037 | 697 | 230 | 260 |
250 | 37 | 1.52 | 60 | 0.20 | 8 | 17.79 | 700 | 1234 | 829 | 255 | 290 |
300 | 37 | 1.52 | 60 | 0.20 | 8 | 19.09 | 752 | 1467 | 986 | 286 | 320 |
350 | 37 | 1.52 | 60 | 0.20 | 8 | 20.39 | 803 | 1701 | 1143 | 310 | 350 |
400 | 37 | 1.52 | 60 | 0.20 | 8 | 21.49 | 846 | 1931 | 1297 | 335 | 380 |
500 | 37 | 1.52 | 60 | 0.20 | 8 | 23.59 | 929 | 2394 | 1608 | 380 | 430 |
600 | 37 | 1.78 | 70 | 0.23 | 9 | 26.17 | 1030 | 2880 | 1934 | 420 | 475 |
750 | 37 | 1.78 | 70 | 0.23 | 9 | 28.77 | 1133 | 3570 | 2398 | 475 | 535 |
1000 | 37 | 1.78 | 70 | 0.23 | 9 | 32.57 | 1282 | 4717 | 3169 | 545 | 615 |
