Overview

Basic Info.

Model NO.
TSJ Cable
Material Shape
Round Wire
Range of Application
Electrical Wire
Certification
ISO9001, CE, SGS TUV
Brand
Ume
Third Party Inspection
Accepted
Sample
Free
Color
Customer Specified
OEM
Accepted
Transport Package
Drum
Specification
TSJ Cable
Trademark
UME
Origin
China
HS Code
8544492100
Production Capacity
500, 000km Per Month

Product Description

Product Description

ONE-STOP SOLUTIONS FOR WIRES&CABLES - HENAN UME CABLE CO., LTD
Over 30 years of Wires and Cables manufacture experience and Export to over 50 countries.

Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable
Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable



1. Applications

This product has been designed to operate at no more than 60oC in dry or wet conditions. Besides that, the Nylon sheath provides protection to chemical agents and petroleum derivatives, therefore this product might be used for wiring solutions at either industrial or commercial and residential applications. Its black pigmentation on the external jacket resist the ultraviolet sun light exposure, thereby, these might be used at outside or wet applications.

2. Constrution

TSJ conductor is an insulated multiconductor composed by bunch-stranded annealed copper flexible conductors, each single cord has a thermoplastic insulation of PVC (Polyvinyl Chloride) and its protected by a Nylon sheath, in addition, the whole multiconductor is protected by a thermoplastic insulation of PVC.

Product Parameters

Construction
AWG		 Cross Section Area (mm2) Number of Strands External Cover Thickness (mm) Approximate Diameter (mm) Approximate Total Weight (kg/km) Minimum Curvature (mm) Max.C.D. Electrical Resistance at 30ºC (Ω/km)
2x20 0.52 7 0.76 5.72 38 86 36.2
2x18 0.82 10 0.76 6.35 48 95 22.9
2x16 1.31 16 0.76 6.99 63 105 14.4
2x14 2.08 26 0.76 8 86 120 9.07
2x12 3.31 41 1.14 9.65 134 145 5.74
2x10 5.26 65 1.52 12.19 217 183 3.59
2x8 8.37 105 1.52 14.99 336 225 2.25
2x6 13.3 168 1.52 17.53 475 263 1.42
3x18 0.82 10 0.76 6.73 58 101 22.9
3x16 1.31 16 0.76 7.37 78 110 14.4
3x14 2.08 26 0.76 8.38 108 126 9.07
3x12 3.31 41 1.14 10.16 168 152 5.74
3x10 5.26 65 1.52 12.7 272 191 3.59
3x8 8.37 105 1.52 16 424 240 2.25
3x6 13.3 168 1.52 17.78 609 267 1.42
4x18 0.82 10 0.76 7.24 70 109 22.9
4x16 1.31 16 0.76 8.13 96 122 14.4
4x14 2.08 26 0.76 9.14 134 137 9.07
4x12 3.31 41 1.14 11.18 209 168 5.74
4x10 5.26 65 1.52 13.72 337 206 3.59
4x8 8.37 105 1.52 17.27 528 259 2.25
4x6 13.3 168 1.52 19.69 765 295 1.42

     Conductor Insulation Jacket     Max  Diameter
mm		  Ref.W
 kg/km
Type Size
AWG		 Construction No./mm  Diameter
mm    		 Nominal Thickness
mm		 Nominal      Diameter
mm		 Minimum Thickness
At any point
mm		      Nominal Diameter
mm
 Stranded Conductor     14 7/0.62 1.86 0.38 2.66 0.1 2.9 3.3 25
14 19/0.38 1.9 0.38 2.7 0.1 2.94 3.4 25
12 7/0.78 2.34 0.38 3.14 0.1 3.38 3.8 38
12 19/0.47 2.35 0.38 3.15 0.1 3.39 3.8 38
10 7/0.98 2.94 0.51 4 0.1 4.24 4.8 59
10 19/0.60 3 0.51 4.06 0.1 4.3 4.8 59
8 7/1.23 3.69 0.76 5.25 0.13 5.55 6.2 97
8 19/0.75 3.75 0.76 5.31 0.13 5.61 6.3 96
6 7/1.56 4.68 0.76 6.24 0.13 6.54 7.3 147
6 19/0.95 4.77 0.76 6.33 0.13 6.63 7.4 146
4 7/1.96 5.88 0.76 7.44 0.13 7.74 8.7 135
4 19/1.19 5.95 0.76 7.51 0.13 7.81 8.7 135
3 7/2.20 6.6 1.02 8.68 0.15 9.02 10 292
3 19/1.33 6.65 1.02 8.73 0.15 9.07 10 291
2 7/2.47 7.41 1.02 9.49 0.15 9.83 11 361
2 19/1.50 7.5 1.02 9.58 0.15 9.92 11 361
1 19/1.68 8.4 1.02 10.48 0.18 10.88 12.1 457
1/0 19/1.89 9.45 1.27 12.03 0.18 12.43 13.8 585
2/0 19/2.12 10.6 1.27 13.18 0.18 13.58 15.1 724
3/0 19/2.38 11.9 1.27 14.48 0.18 14.88 16.5 900
4/0 19/2.67 13.35 1.27 15.93 0.18 16.33 18.1 1118
     Solid Conductor 14 1/1.63 1.63 0.38 2.43 0.1 2.67 3.1 22
12 1/2.05 2.05 0.38 2.85 0.1 3.09 3.5 36
10 1/2.59 2.59 0.51 3.65 0.1 3.89 4.4 57
8 1/3.26 3.26 0.76 4.82 0.13 5.12 5.7 94
TESTING



HENAN UME CABLE CO., LTD has a strict quality control policy in every step from the order to After-sales service!



     Production:

  • Raw material inspection and test
  • Production process test
  • Unqualified product control
  • Regular test and examination
  • Finished product inspection
Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable



Certifications
UME CABLE has completed several third-party product certifications to ensure our customers that all of the wire and cable purchased and installed in your projects, will fully and consistently meet all criteria of the required production and performance standards, also you are guaranteed we (as the manufacturer) and the products supplied are both valid and continuously monitored by those globally recognized quality verification system listed as below: ISO9001, ISO14001, ISO45001, CE, SGS, TUV.
Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable

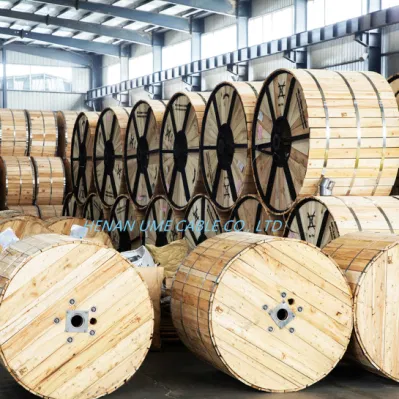

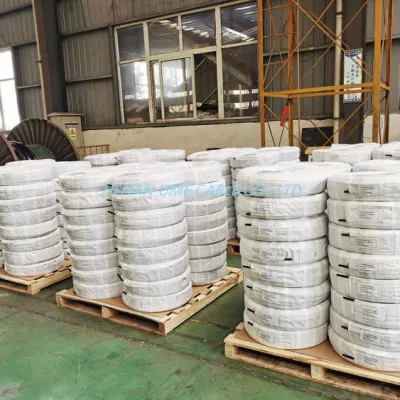

Packaging & Shipping



Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable
Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable

Customer Visit

Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable

Company Profile
Electric Wire Copper Wire PVC Insulation Ground Wire Tsj Cable
UME CABLE is one of the leading companies in the production and distribution of cables and wires in China. As a manufacturer, we have supplied quality products to more than 50 countries. Our mission is to offer our customers the best quality cable and wire products at the most competitive price, to extend and zoom the business success of our partners, to make power reach where it is needed, to optimize the running utility grids, and ultimately, to power the world. Our version is to be the most customer-centric cable and wire company with our solid technology, enthusiastic services, and robust products.

UME Cable was founded in 1994, located in Zhengzhou Gongyi Huiguo Town, and occupies a total area of more than 200,000 square meters, with a building area of 20,000 square meters. The real capital assets are more than USD 6 million, with a total of 230 staff members, 35 of which are professional and technical experts. The land of our factory and employees numbers might not be the top scale of industry, but our highly automatic facilities and elite employees are the best in the industry will guarantee you a high yield rate achieved by strict cost and quality control, this is why we could quote better quality with the most competitive price within the market.



FAQ

Q1: Are you a manufacturer?
Yes, we are the manufacturer.

Q2: What are your main products?
  Our products range as follows:
1. Electrical wire/PVC Building Wires.
2. PVC/XLPE insulated Power Cables up to 110kv.
3. Overhead Aerial Bundle Cable/ABC Cables.
4. Bare Conductors, like AAC, AAAC, ACSR, ACAR, ASCR/AW, and so on.
5. Steel wire/strand-like EHS, GSW and ACS(Aluminum Clad Steel), CCS(Copper Clad Steel).
6. Rubber Cables, Mining Cables, Welding Cable, and Control Cables.
7. Concentric Cables with Copper/Aluminum/Aluminum Alloy 8000s' Conductor.

Q3: Do you provide samples? Is it free or extra?
  Yes, we could offer the samples for free

Q4: Is the quality of your products guaranteed?
  We have passed ISO9001, ISO14001, ISO45001, and all our products have CE certificates.

Q5: Which markets do you involve mainly in?
Our products have been exported mainly to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

Q6: What is your payment term?
  T/T or L/C

Q7: What about the delivery time?
Generally, it is 3-7days if the goods are in stock. Or it is 7-30days if the goods are not in stock, it is according to quantity.
