Basic Info.
Model NO.
RVS
Conductor Material
Copper Clad Aluminum
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Building and House
Certification
ISO9001, CE, CCC, RoHS
Brand
Qinshan
Rated Voltage
300/500V
Standard
IEC60227
Transport Package
Standard Export Carton
Specification
0.5mm2 to 6mm2
Trademark
QINSHAN
Origin
China
HS Code
8544492900
Production Capacity
500000 Rolls /Year
Product Description

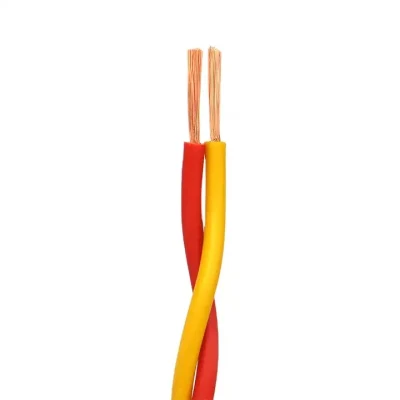

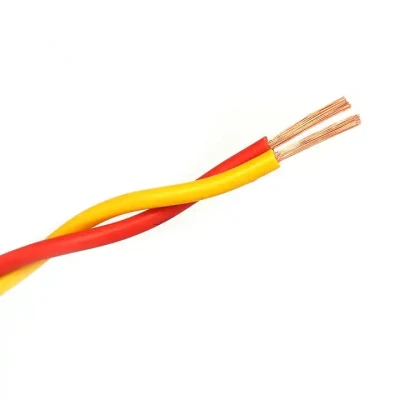

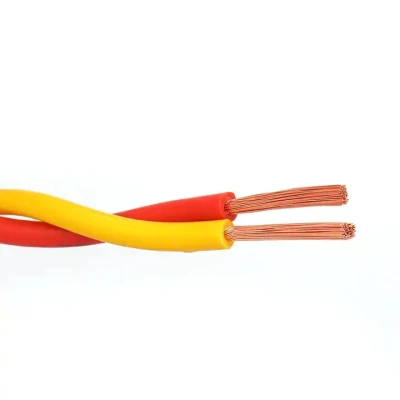

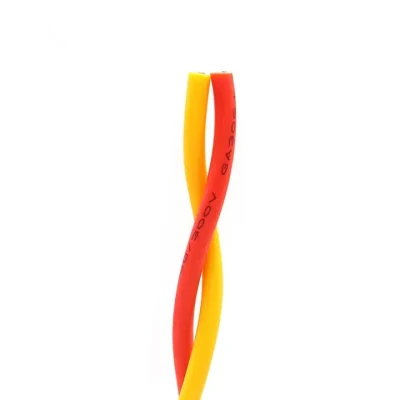

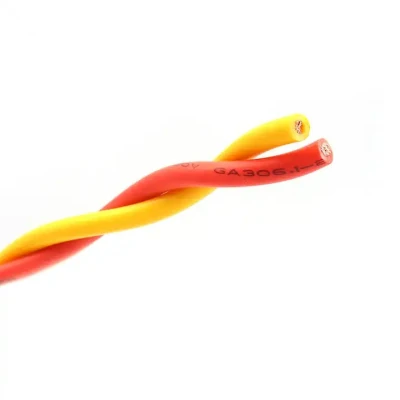

2 Core RVS Electric Cable 450/750V Coprer 0.5 0.75 1 1.5 2.5 mm PVC Insulation Flexible Twisted Wire
2x0.5mm 2x0.75mm 2x1.0mm CCA Twisted pair wire
Construction :
1.Conductor : Stranded Copper Wire or CCA Wire
2.Insulation : PVC (Polyvinyl Chloride)
3.Color Available:
Red&Black , Red&Yellow,Red&Blue,Red&White ,Yellow&Green
Standard:
IEC60227&BS &JB8734
Technial:
Rated Voltage:300V/500V
Rated Temperature:70°C
Application:
Twisted pair wire with good flexibility and good tension that is used for lighting ,small electric instrument ,mobile lower power household appliance ,broadcast and audio equipment.
Specification Parameter :
2x0.5mm 2x0.75mm 2x1.0mm CCA Twisted pair wire
Construction :
1.Conductor : Stranded Copper Wire or CCA Wire
2.Insulation : PVC (Polyvinyl Chloride)
3.Color Available:
Red&Black , Red&Yellow,Red&Blue,Red&White ,Yellow&Green
Standard:
IEC60227&BS &JB8734
Technial:
Rated Voltage:300V/500V
Rated Temperature:70°C
Application:
Twisted pair wire with good flexibility and good tension that is used for lighting ,small electric instrument ,mobile lower power household appliance ,broadcast and audio equipment.
Specification Parameter :
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Overall diameter | Min.Resistance of Insulation at 70ºC | Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | (Ω/km) | <=(Ω/km) |
| Twisted Pair Wire 300/500V | |||||
| 2 x 0,5 | 2x 28 / 0,15 | 0,5 | 2,9 | 0,012 | 39,0 |
| 2 x 0,75 | 2x 42 / 0,15 | 0,6 | 3,1 | 0,011 | 26,0 |
| 2 x 1,0 | 2x 32 / 0,20 | 0,6 | 3,5 | 0,010 | 19,5 |
| 2 x 1,5 | 2x48 / 0,20 | 0,7 | 3,8 | 0,010 | 13,3 |
| 2 x 2,5 | 2x49 / 0,25 | 0,8 | 4,1 | 0,009 | 7,98 |
| 2 x 4 | 2x56/ 0,30 | 0,8 | 4,6 | 0,007 | 4,95 |
| 2 x 6 | 2x84/ 0,30 | 0,8 | 5.2 | 0,006 | 3,30 |
