Basic Info.
Product Description
Standard
IEC 60227-5: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Part 5: Flexible cables (cords)
Application

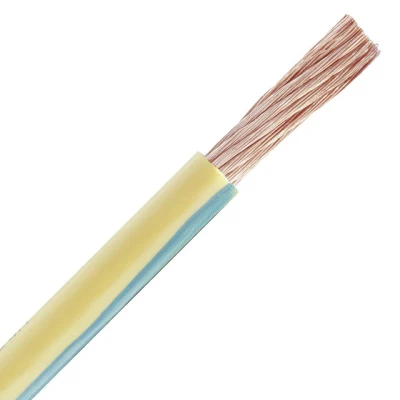

This Copper PVC 16mm electrical wire is used in the movable power supplies of rated voltage 1kv and below. Flame retardant and fire resistant cables are also available.
Product Details
1) Conductor: class 5 annealed copper, 126/0.4 mm
2) Insulation: PVC, thickness 1.0 mm
3) Overall diameter: 7.8 mm
4) Net weight: 175 kg/km
5) Max. DC resistance @ 20 degrees: 1.21 ohm/km
6) Max. working temperature: 70 degrees
7) Features: low smoke & halogen free, flame retardant, fire resistant
Pre-Sales Service
* Inquiry and consulting support
* Product, packaging, delivery design
* Free samples
After-Sales Service
* Provide installation guidance
* Engineers available to service overseas
* One year product quality guarantee
| Packaging | |
| Size | 50cm (L) * 50cm (W) * 20cm (D) & below |
| Weight | 30 KG & below |
| Packaging Details | 1) Polyester tape packaging, usually used for cables with a diameter of 10mm and below 2) 100 meters (or other length required by customer) per roll |
| Packaging | |
| Size | 180cm (L) * 110cm (W) * 180cm (D) |
| Weight | 2.0 T and below |
| Packaging Details | 1) Wood or steel-wood drum 2) Packaging length as per customer's requirements |
