Basic Info.
Model NO.
UL1569
Certification
ISO9001, RoHS, VDE
OEM
Yes
Color
Customized
Delivery Time
3-10days
Sample
Avaliable
Transport Package
Carton
Specification
Customized
Trademark
Bort
Origin
Fujian China
HS Code
8544492900
Production Capacity
999999meters/Month
Product Description

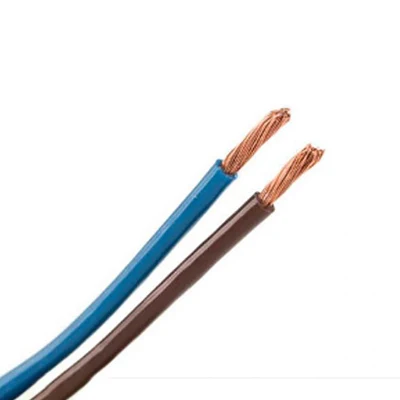

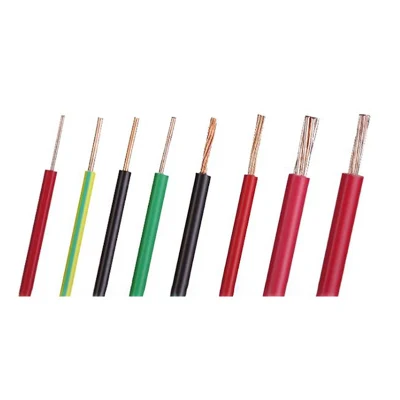

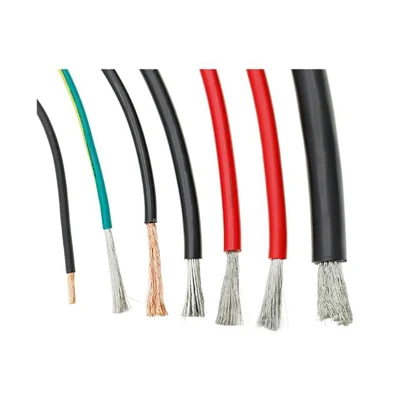

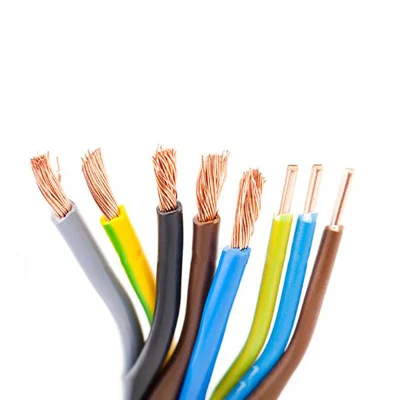

PRODUCT DESCRIPTION:
★ Rated temperature: 80ºC or 90ºC or 105ºC
★ Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 & C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-10 AWG
★ Colour-coded lead free PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & FT1 vertical flame test
★ Application: For internal wiring of appliances and electronic equipment
| Conductor | Insulation | Maximum Resistance at 20 ºC Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 139 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 57.5 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 15.1 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 9.2 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.
Welcome to visit us. We'll pick you up in Xiamen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.
5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.
