Basic Info.
Model NO.
UL1569
Range of Application
Flame Retardant
Certification
ISO9001, RoHS, Reach
Brand
Bort
Color
White Black Red Yellow Blue
Rated Voltage
30V
UL Flame Test
UL Vm-1
Current
DC/AC
Species
Terminal
Character
Insulation
User
Socket Terninals
Transport Package
Binding
Trademark
bort
Origin
China
HS Code
8544492900
Production Capacity
300000km/Per Year
Product Description

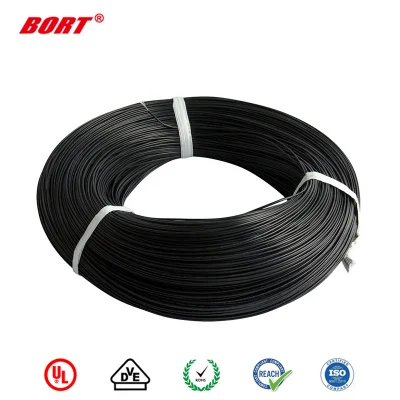

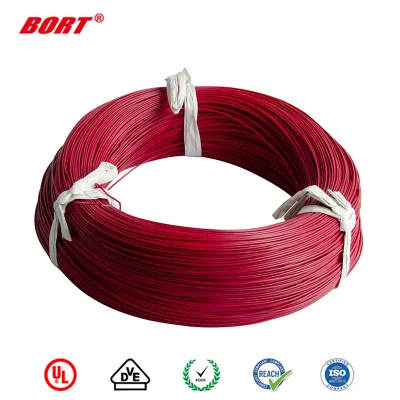

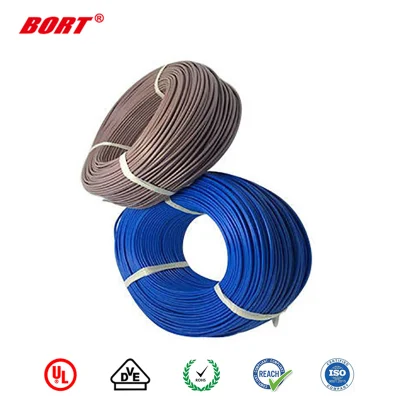

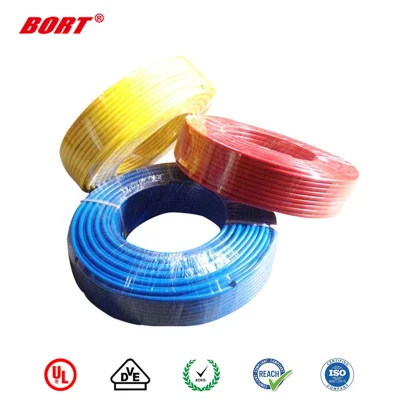

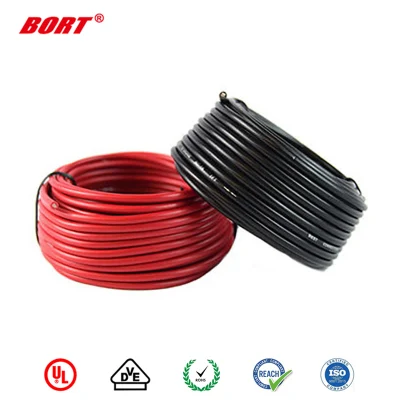

China Manufacture UL1569 Copper Wire Insulated Cable
Product Description:★ Rated temperature: 80ºC or 90ºC or 105ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581
★ Tinned or bare, stranded or solid copper conductor,30-10 AWG
★ Colour-coded lead free PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 FT1 vertical flame test
★ Application: For internal wiring of appliances and electronic equipment
| Conductor | Insulation | Maximum Resistance at 20 ºC Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 139 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 57.5 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 15.1 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 9.2 |
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
