Basic Info.
Model NO.
HH-E-70/80/90+35/40/50
Certification
RoHS, ISO, CE
Warranty
12 Months
Screw
Single-Screw
Inlet Wire Diameter
1-15mm
Finished Wire Diameter
2-20mm
Extrusion Speed
Max 300 M/Min
Extrusion Capacity
200 Kg/H
Voltage
380V, Can Be Customized
Workers Recommendation
3 Workers
Weight
4500 Kg
Installed Capacity
65 Kw
Transport Package
PE Plastic
Trademark
24*3.5*3.5 m
Origin
Guangdong, Dongguan
HS Code
8477209000
Production Capacity
10sets/Month
Packaging & Delivery
Package Size
2600.00cm * 350.00cm * 350.00cm
Package Gross Weight
12000.000kg
Product Description
Application:

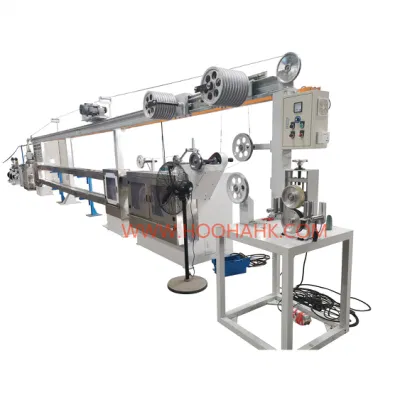

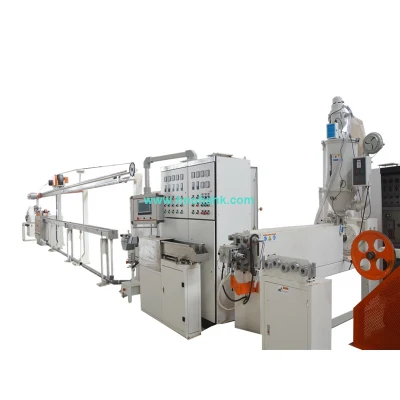

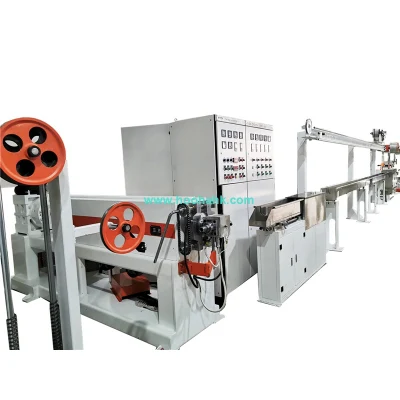

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.
Configuration:
Singe standing main unit, electric system,center wrapping machine, side-way giving wrap& wire device.
| No. | Description | Q'TY |
| 1 | 400-630 motorized pay-off stand | 1 set |
| 2 | 5-wheel Straightening device | 1 set |
| 3 | 80 Host extruder | 1 set |
| 4 | 80 Adjustable extrusion head | 1 set |

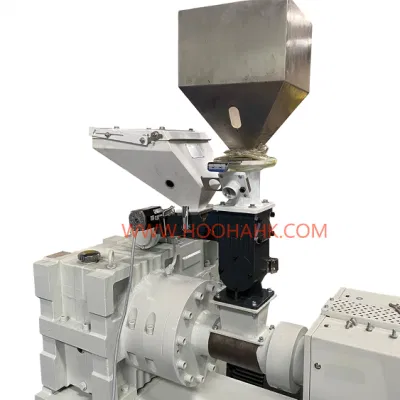

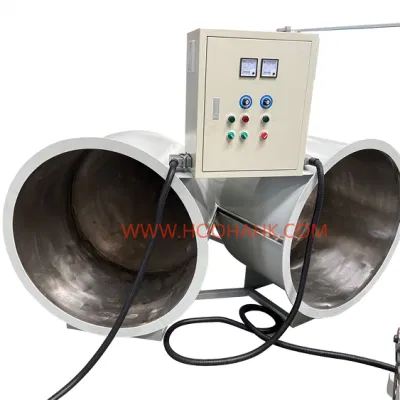

| 5 | Automatic drying and feeding machine | 1 set |
| 6 | PLC electric control boX | 1 set |
| 7 | 1.5m Movable water tank with cover | 1 set |
| 8 | Diameter tester | 1 set |
| 9 | 8m Fixed water tank with cover and leak-proof | 1 set |
| 10 | 10 m Slide rail type + anode guide wheel storage rack | 1 set |
| 11 | 410mm tractor | 1 set |
| 12 | Meter counter | 1 set |
| 13 | High frequency spark tester | 1 set |
| 14 | 400-630 Double-head shaftless motorized take-up stand | 1 set |
| 15 | Display board | 1 set |
| 16 | Φ50m Horizontal injection machine | 1 set |
| 17 | Accessories |
| Dual-head tension pay-off 1 Bobbin size 400-630 mm 2 Loading 500 kg 3 Pay-off speed 300 m/min 4 Tension Spring control 5 Material Q-235-A/Q-245-A/#45 Feature : Low budget , low speed , economical choice | Dual-head magnetic powder pay-off machine 1 Bobbin size 400-630 mm 2 Loading 1000 kg 3 Pay-off speed 500 m/min 4 Tension 5kg magnetic powder clutch 5 Lift motor 0.75 kw*2 6 Material Q-235-A/Q-245-A/#45 Feature : Constant tension control , fair choice for small cable | 800-1600 gantry pay-off stand 1 Bobbin diameter 800-1600 mm2 Bobbin width 600-1180 mm 3 Loading Max 5000 kg 4 Pay-off speed 150 m/min 5 Slide motor 1.5 kw 6 Lift motor 1.1 kw 7 Tension control Pneumatic brake control Feature : Pay-off/take-up all in one , wide suitable bobbin range , high section cable best choice |
Optional wire co-extruder
| 35 vertical injection machine Purpose: suitable for double color extrusion and multiple layer extrusion machine Extrusion material: PVC/PE/PP and so on Extrusion volume: Max15kg/hr Plastilization: 100% Screw cylinder φ35mm special screw , ratio of length to diameter: 17:1 L/D material 38CrMoAIL, surface nitriding, has the wearability, high temperature resistant, corrosion resistant properties, durable,ensure good plasticization and quantity extrusion. 6, the screw cylinder: material is 38CrMoALA, nitriding, the hardness of HRC60~63 degrees. The cylinder wall is thickened type, ensure the constant temperature, improve the quality of products. 7, the electric heating: screw cylinder electric heating zone 2, nozzle.zone 1,Stainless steel heating coil, heating and cooling is convenient, saving electricity. 8, the screw cylinder cover: 1.5mm quality stainless steel combination, beautiful appearance and safety. 9, temperature control: PID automatic temperature controller to control the temperature of 0~399 DEG automatic temperature control, thermocouple with KTYPE. 10, cooling: 60W air-intake / air-out fan convection, effectively control the temperature ,exceeding the setting value. 11,feed: artificial fillers,feeding rod,automatic feeding, feeding adopts stainless steel hopper mouth rotary structure 12, power: 3HP reducer + sinee inverter speed control, stable operation, improve the mechanical properties of. (Thin layer choice) | 45 horizontal injection machine The host controlled by 0.75KW motor lifting, travel 100mm host rotate 360 degrees, before and after stroke by straight rail travel line, manual control 1, use: suitable for multi-color and used as a multilayer extrusion machine. 2, extrusion material: PVC/PE/PP. 3,extrusion volume: Max40kg/hr 4, the plasticizing degree: 100% 5: special screw, screw diameter 40mm, length to diameter ratio is17:1, the surfacematerial: 38CrMoALA, n After processing the hard chrome plating, good abrasion resistance, high temperature resistant and corrosion resistant properties, durable,good plasticzation and extrusion quantity. 6, the screw cylinder: material is 38CrMoALA, nitrogen treatment, the degree of hardness is HRC60~63.to ensure that the cylinder wall thickening, constant temperature, improve the quality of products. 7, electric heating: screw cylinder heating zone 3, 1 area of nozzle. Cast aluminumheating coil, heating and cooling,saving electricity. 8, the screw cylinder cover: 1.5mm stainless steel, beautiful and safe. 9, temperature control, automatic temperature controlinstrument, PID control, 0~399temperature thermocouple automatic temperature control, using KTYPE. 10, cooling intake / exhaust fan: 60W convection, effectively control the temperature exceeds the set value. 11, material: artificial fillers, feeding rod automatic feeding, stainless steel hopper mouthrotary structure 12, power: 7.5HP reducer + Yaskawa inverter control speed, stable operation, improve mechanical properties. (Thick layer choice) |
Take up
| 400-630 Double-head shaftless motorized take-up stand (Intermediate process choice) 1 Bobbin size 400-630 mm 2 Take-up speed 500 m/min 3 Wire laying Automatic, row space and width are adjustable 4 Main motor 3.7 kw *2 5 Lift motor 0.75 kw *2 6 Measurement 1400*1200*1500 mm | 800-1600 gantry take-up stand (Large cable perfect choice) 1 Bobbin diameter 800-1600 mm2 Bobbin width 600-1180 mm 3 Loading Max 5000 kg 4 Take-up speed 150 m/min 5 Take-up motor 5 kw 6 Slide motor 1.5 kw 7 Lift motor 1.1 kw 8 Tension control Pneumatic brake control | Double head take-up machine (Economical choice) 1 Bobbin size 400-630 mm 2 Take-up speed 500 m/min 3 Wire laying Automatic, row space and width are adjustable 4 Main motor 3.7 kw *2 5 Meter counter 6-digit double setting, automatically stops when setting meter reached |
Layout Chart
