Basic Info.
Model NO.
UL1569
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, CE, CCC, RoHS, Reach
Brand
B&T
According to
UL Subject758, UL1581
Test
Passes UL VW-1
Performance
for Internal Wiring of Appliance
Conductor
Stranded, Tinned or Bare Copper Conductor
Color
Could Be Customized Color
Delivery Time
7-15days
Products Certification
UL, cUL, RoHS, Reach
Package

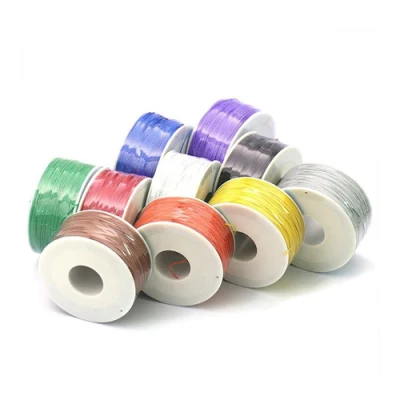

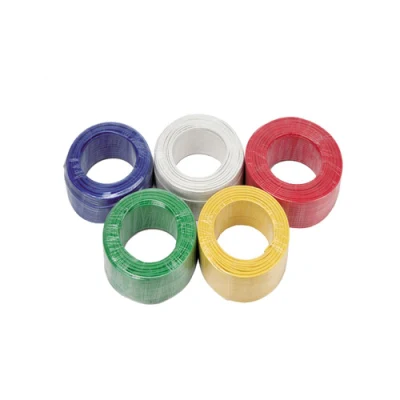

Coil or Spool Packing
Factory Certificate
ISO9001:2008 Standard
Capacity
300, 000km Annual
Transport Package
610 Feet in Roll
Specification
24~10AWG
Trademark
B&T
Origin
Xiamen, Fujian
HS Code
8544492100
Production Capacity
300, 000km
Product Description
copper electric cable 30awg ul1569 cables electrical awg wires
Product Description:
★ Rated temperature: 80ºC or 90ºC or 105ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 C22.2 NO.210.2

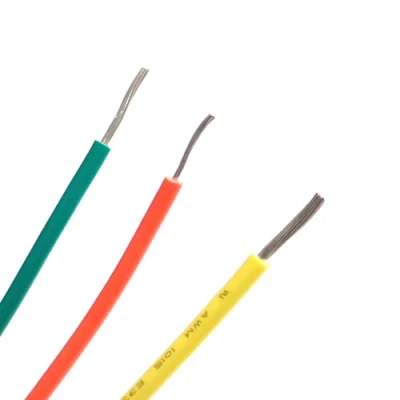

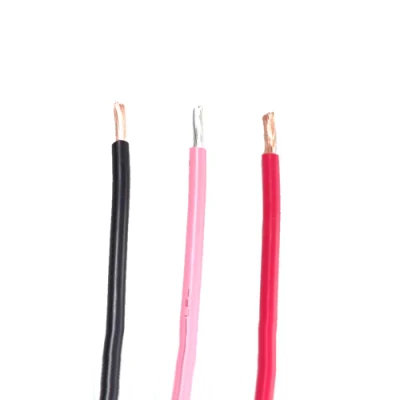

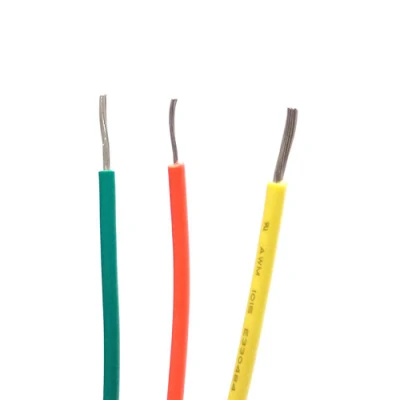

★ Tinned or bare, stranded or solid copper conductor,30-10 AWG
★ Colour-coded lead free PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 FT1 vertical flame test
★ Application: For internal wiring of appliances and electronic equipment
Product Description:
★ Rated temperature: 80ºC or 90ºC or 105ºC
Rated voltage: 300V
★ Reference Standard: UL Subject 758, UL1581 C22.2 NO.210.2
★ Tinned or bare, stranded or solid copper conductor,30-10 AWG
★ Colour-coded lead free PVC insulation
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 FT1 vertical flame test
★ Application: For internal wiring of appliances and electronic equipment
| Conductor | Insulation | Maximum Resistance at 20 ºC Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 26 | 7/0.16 | 0.48 | 0.41 | 1.30 | 139 |
| 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.41 | 1.58 | 57.5 |
| 20 | 7/0.32 | 0.96 | 0.41 | 1.78 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.41 | 2.00 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.41 | 2.32 | 15.1 |
| 14 | 41/0.254 | 1.87 | 0.41 | 2.70 | 9.2 |
| UL Style | Conductor | Insulation | Overall | Standard Put-up | Conductor | ||
| UL3314 | Thickness | Diameter | Resistance at 20ºC | ||||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| 24 | 11/0.16 | 0.38 | 1.4 | 2000 | 610 | 94.2 | |
| 22 | 17/0.16 | 1.6 | 59.4 | ||||
| 20 | 21/0.178 | 1.8 | 36.7 | ||||
| 18 | 34/0.178 | 2.1 | 23.2 | ||||
| 16 | 26/0.250 | 2.3 | 14.6 | ||||
| 14 | 41/0.250 | 2.7 | 8.96 | ||||
| 12 | 65/0.250 | 3.2 | 1000 | 305 | 5.64 | ||
| 10 | 105/0.250 | 3.8 | 3.55 | ||||
