Basic Info.
Model NO.
AS/NZS Wire
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Building and House
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Qinshan
Insulation Color
Red/Balck/Yellow/Green/Bule/ Yellow&Green
Voltage
300/500V
Fixed Installed
-30ºC up to +70ºC
Min Inner Bending Radius
4D(D=Outdiameter)
4D(D=Outdiameter)
up to 160ºC
Transport Package
Roll Packing& Plastic Drum
Specification
0.5m2m to 300mm2
Trademark
Qinshan
Origin
China
HS Code
8544492900
Production Capacity
600000000 Rolls /Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

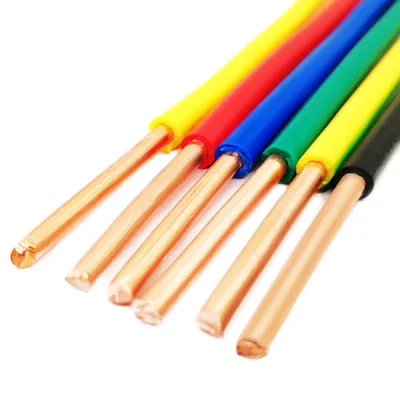

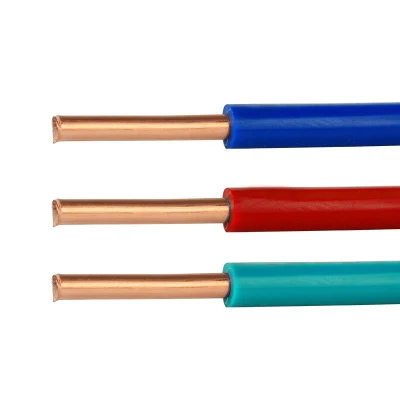

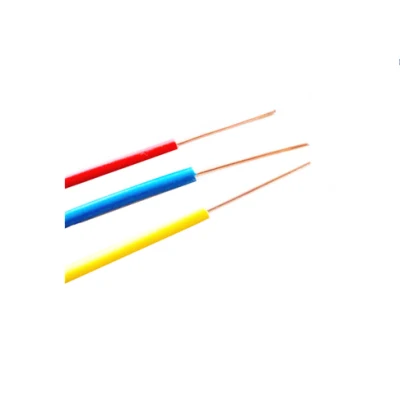

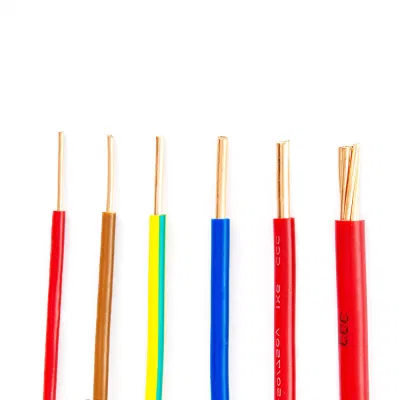

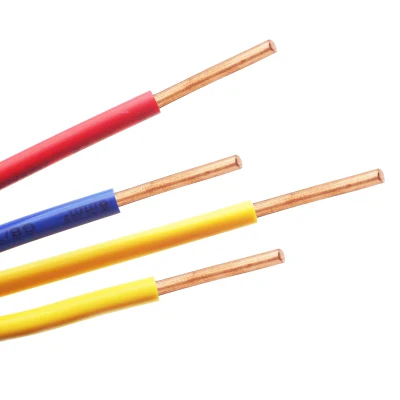

AS/NZS Cable Factory production single core electrical cable wire 3mm
Construction :
1.Conductor:H05V-U/H07V-U Bare copper wire(solid) class1
H07V- R Bare copper multi wire(stranded) class2
2.Insulation:PVC Compound
3.Insulation Color: Red/Balck/Yellow/Green/Bule/ Yellow&Green
Techical Data :
Fixed installed: -30ºC up to +70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage: H05V-U 300/500V
H07V-U/R 450/750V
Min inner bending radius:4D(D=Outdiameter)
Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application :
Insulated conductor(H05V-U/ H07V-U/R) is used for laying in electric-installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment, same as for protective laying for lighting of nominal voltage up to 1000 V alternating current, or up to 750 V direct current against earth.
Installation :
In conduit, insulated support, ducts... in covered an dry place.
Permissible currentare given for conductor laid alone in insulating tube on a wall temperature at 30°C .
Permissible currentare given for conductor laid alone in insulating tube on a wall temperature at 30°C .
Specification Parameter :
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Overall diameter | Nominal Cable weight | Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | kg/km | <=(Ω/km) |
| H05V-U 300/500V | |||||
| 1 x 0,5 | 1 x 0,80 | 0,6 | 2.1 | 8,5 | 36,0 |
| 1 x 0,75 | 1 x 0,97 | 0,6 | 2.3 | 11 | 24,5 |
| 1 x 0,75 | 7 x 0,37 | 0,6 | 2.4 | 12 | 24,5 |
| 1 x 1,0 | 1 x 1,13 | 0,6 | 2.5 | 14 | 18,1 |
| 1 x 1,0 | 7 x 0,42 | 0,6 | 2.7 | 15 | 18,1 |
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Overall diameter | Nominal Cable weight | Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | kg/km | <=(Ω/km) |
| H07V-R 450/750V | |||||
| 1 x 1,5 | 7x 0,52 | 0,7 | 3.0 | 22 | 12,10 |
| 1 x 2,5 | 7 x 0,67 | 0,8 | 3.6 | 33 | 7,41 |
| 1 x 4 | 7 x 0,85 | 0,8 | 4.2 | 50 | 4,61 |
| 1 x 6 | 7 x 1,04 | 0,8 | 4.7 | 70 | 3,08 |
| 1 x 10 | 7 x 1,35 | 1,0 | 6.1 | 117 | 1,83 |
| 1 x 16 | 7 x 1,70 | 1,0 | 7.1 | 178 | 1,150 |
| 1 x 25 | 7 x 2,14 | 1,2 | 8.8 | 276 | 0,727 |
| 1 x 35 | 7 x 2,52 | 1,2 | 10.0 | 374 | 0,524 |
| 1 x 50 | 19 x 1,78 | 1,4 | 12.0 | 516 | 0,387 |
| 1 x 70 | 19 x 2,14 | 1,4 | 13.5 | 716 | 0,268 |
| 1 x 95 | 19 x 2,52 | 1,6 | 15.7 | 986 | 0,193 |
| 1 x 120 | 37 x 2,03 | 1,6 | 17.4 | 1236 | 0,153 |
| 1 x 150 | 37 x 2,25 | 1,8 | 19.4 | 1523 | 0,124 |
| 1 x 185 | 37 x 2,52 | 2,0 | 21.5 | 1900 | 0,0991 |
| 1 x 240 | 61 x 2,25 | 2,2 | 24.7 | 2500 | 0,0754 |
| 1 x 300 | 61 x 2,52 | 2,4 | 27.2 | 3108 | 0,0601 |
| 1 x 400 | 61 x 2,85 | 2,6 | 30.4 | 3949 | 0,0470 |
| 1 x 500 | 61 x 3.20 | 2,8 | 33.8 | 4953 | 0,0366 |
| 1 x 630 | 91 x 2,95 | 2,8 | 40.6 | 6507 | 0,0283 |
