Basic Info.
Model NO.
flexible wire
Material Shape
Round Wire
Range of Application
Underground
Certification
ISO9001, CE, CCC
Brand
Chunbin
Rated Voltage
450/750V
Number of Cores
1/2/3/4/5
Insulation
PVC
Packing
Roll
Conductor
Copper
MOQ
1000 Meters
Length
Lengths Customize
Product Name
Building Wire
Rated Temperature
70′c
Transport Package
Cartons, Wooden Wheels, Soft
Trademark
Chunbin
Origin
Luoyang, Henan
Production Capacity
30, 000m/Week

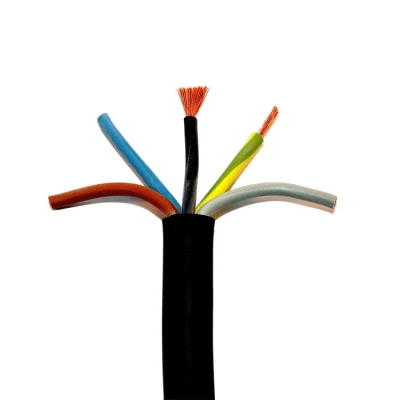

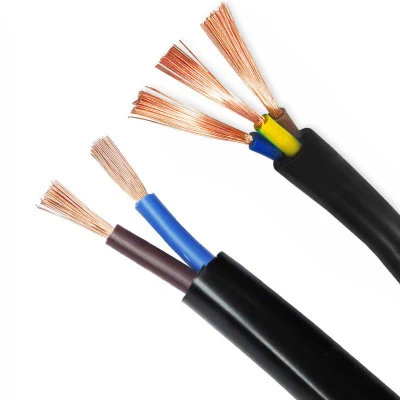

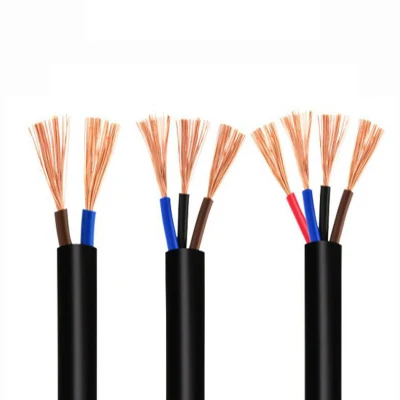

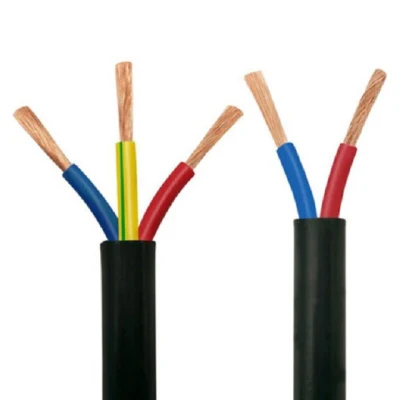

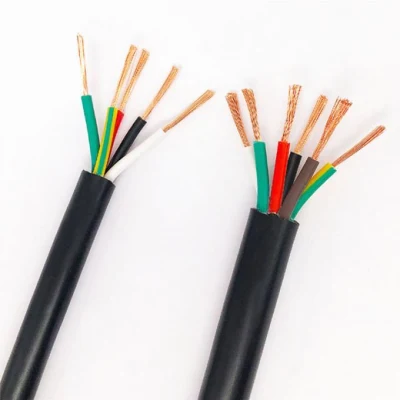

Product Description
Product detail:
Application
Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.
| Characteristics | |
| Conductor | Flexible Class 5 copper conductor |
| Max. operating temperature | 70 °C |
| Short circuit temperature | 160 °C (max. 5 sn.) |
| Rated voltage | 450/750 V |
| Insulation | PVC |
| Sheath/Jacket | PVC |
Parameter
| PVC INSULATED FLEXIBLE ROUND MULTI-CORE CABLE | |||
| SIZE/MM2 | STRUCTURE/MM | OVERALLDIAMETER/MM | |
| 2CORE | 0.75 | 24X0.2 | 7.6 |
| 1 | 32X0.2 | 7.8 | |
| 1.5 | 30X0.25 | 8.8 | |
| 2.5 | 49X0.25 | 11 | |
| 3CORE | 0.75 | 24X0.2 | 8 |
| 1 | 32X0.2 | 8.4 | |
| 1.5 | 30X0.25 | 9.6 | |
| 2.5 | 49X0.25 | 11.5 | |
| 4 | 56X0.3 | 12.5 | |
| 6 | 84X0.3 | 13.5 | |
| 10 | 126X0.32 | 16.5 | |
| 16 | 126X0.4 | 20 | |
| 25 | 196X0.4 | 30.25 | |
| 4CORE | 0.75 | 24X0.2 | 8.6 |
| 1 | 32X0.2 | 9.2 | |
| 1.5 | 30X0.25 | 11 | |
| 2.5 | 49X0.25 | 12.5 | |
| 4 | 56X0.3 | 13 | |
| 6 | 84X0.3 | 15.8 | |
| 10 | 126X0.32 | 17.6 | |
| 16 | 126X0.4 | 21.5 | |
| 25 | 196X0.4 | 33.5 | |
| 5CORE | 0.75 | 24X0.2 | 9.4 |
| 1 | 32X0.2 | 11 | |
| 1.5 | 30X0.25 | 12 | |
| 2.5 | 49X0.25 | 13.5 | |
| 4 | 56X0.3 | 14.5 | |
| 6 | 84X0.3 | 16.4 | |
| 10 | 126X0.32 | 20.1 | |
| 16 | 126X0.4 | 24.5 | |
| 25 | 196X0.4 | 37 | |
Packing & Delivery
Our Factory
The Chunbin Cable Group Co,. Ltd covers an area of 68,000 square meters, with a construction area of 18,000 square meters and fixed assets of 106.8 million RMB. We own advanced production equipment and perfect testing machine. Our company mainly produces mineral insulated cable, pv cable,overhead line cable, OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, PVC insulated power cable, aluminum alloy cable, fire resistant cable, flame retardant cable, control cable, overhead insulated cable, low-smoke halogen-free cable, rubber cable, mining cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated wire and cable, shielded monitoring line, protection More than 50 varieties, more than 1000 specifications, such as line, agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.
Certifications
Our company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.
FAQ
Are you a factory or trade company ?
We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.
Whether these products quality assured ?
Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured.
When I want customized products, how to do?
Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs.
Can you send a sample for us to test?
If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order.
If we want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
When you arrange delivery after we place an order ?
Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity.
After I pay, what about shipping method?
Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.
