Product Description

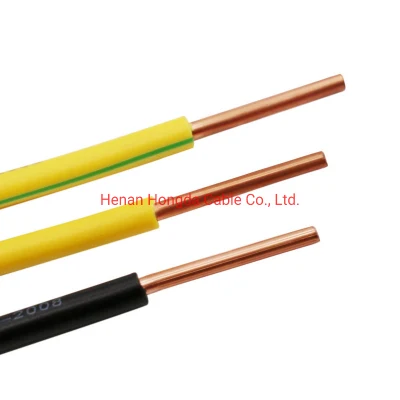

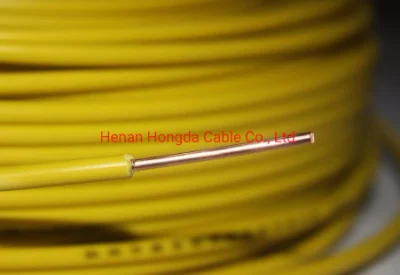

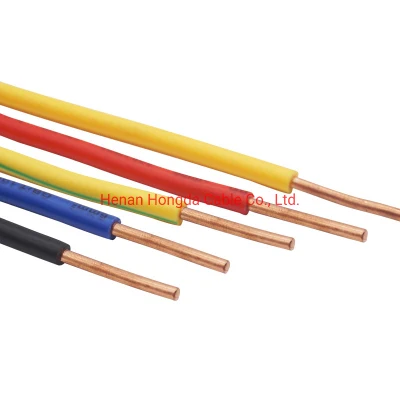

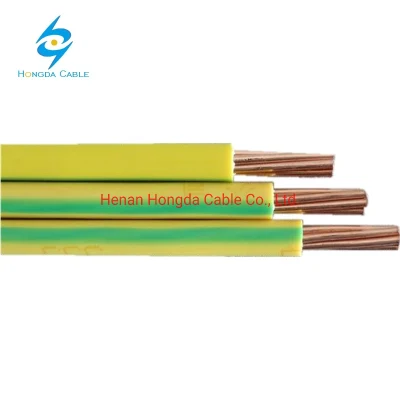

Polyvinyl chloride insulated cables and cords of rated voltages up to and including 450/750V
Application
Wiring for electrical appliances, smaller size electric tools, instruments of various meters, and motorized lighting system.
Standard
IEC 60227,IEC 60228,IEC 60332,GB/T 5023,BS 6500,BS 6004,VDE 0281,0282 , EN 50525-1, AS/NZS 5000.2 etc.
*Hongda Cable can also design and produce for special application requirement.
Type and description
Serial | Type | Description |
1 | 60227 IEC 01(BV) (H07V-U or H07V-R) | Single core solid or stranded conductor unsheathed cable |
2 | 60227 IEC 02(RV) (H07V-K) | Single core flexible conductor unsheathed cable |
3 | 60227 IEC 05(BV) (H05V-U or H05V-R) | Single core 70ºC solid or stranded conductor unsheathed cable |
4 | 60227 IEC 06(RV) (H05V-K) | Single core 70ºC flexible conductor unsheathed cable |
5 | 60227 IEC 07(BV-90) (H07V2-U or H07V2-R) | Single core 90ºC solid conductor unsheathed cable |
6 | 60227 IEC 08(RV-90) (H07V2-K) | Single core 90ºC flexible conductor unsheathed cable |
7 | 60227 IEC 10(BVV) (NYY or NYM) | Light PVC sheathed cable |
8 | 60227 IEC 42(RVB) | Flat unsheathed flexible wire |
9 | 60227 IEC 52(RVV) (H03VV-F,H03VV2-F) | Light PVC sheathed flexible wire |
10 | 60227 IEC 53(RVV) (H05VV-F,H05VV2-F) | Common PVC sheathed flexible wire |
11 | BV (H07V-U or H07V-R) | Copper conductor PVC insulated wire |
12 | BLV | Aluminum conductor PVC insulated wire |
13 | BVR | Copper conductor PVC insulated flexible cable |
14 | BVV (NYY or NYM) | Copper conductor PVC insulated sheathed |
15 | BLVV | Aluminum conductor PVC insulated and sheathed round cable |
16 | BVVB (H05VVH2-F) | Copper conductor PVC insulated and sheathed flat cable |
17 | BLVVB | Aluminum conductor PVC insulated sheathed flat cable |
18 | NMD-90 | Copper conductor PVC/Nylon Insulated PVC Jacked flat cable |
19 | RVS | Twisted copper conductor PVC insulated flexible cable for conection |
20 | AVP | Copper conductor PVC insulated wire with shied for installation |
21 | RVP | Copper conductor PVC insulated flexible wire with shield |
22 | RVVP | Copper conductor PVC insulated, shielded, |
NOTE:1) Cores number series ar,1,2 ,3,4and 5.
2) HONGDA CABLE can produce "Flame-Retardant Series", "Fire-Resistant Series", "Low Smoke Halogen Free (LSHF/LSOH) Series", "Low Smoke Low Halogen (LSLH) Series", etc.
Performance in line with IEC60332,IEC 61034,IEC60754 requirements.

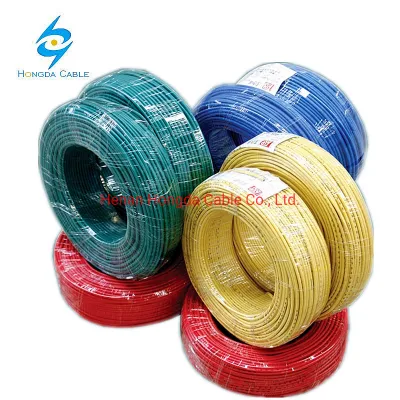

Packing:
