450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire

Get top-quality 450/750V Copper Core PVC Sheathed Electric Cable Wire direct from our factory. Shop now for durable, flexible, PVC insulated wiring.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Product recommendations
  • Company Profile
  • Our Advantages
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
RVV
Conductor Material
Copper/Aluminum
Sheath Material
PC/PVC/Crosslinking
Insulation Material
PVC/PE/Rubber/Silicone Rubber
Material Shape
Round Wire
Range of Application
Lsoh/Flame Retardant/Refractory
Certification
ISO9001, CE, CCC, RoHS
Brand
Ruihong
Quantity of Core
2 Cores - 30 Cores
Rated Voltage
300/300V,300/500V,450/750V
Color
Black, Red, Green, Grey, Yellow/Green, Required
Core
1, 2, 3
Popular Size
1.5mm,2.5mm,4mm,6mm,10mm,16mm,25mm,35mm,50mm
OEM
Yes
ODM
Yes
Transport Package
Axle
Specification
100 or 200 meters
Trademark
Ruihong
Origin
Xingtai, China
HS Code
8544110000
Production Capacity
5000000 Meters Per Year

Packaging & Delivery

Package Size
40.00cm * 40.00cm * 20.00cm
Package Gross Weight
10.000kg

Product Description

Product Description

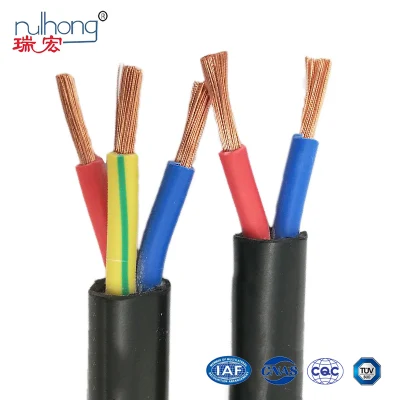

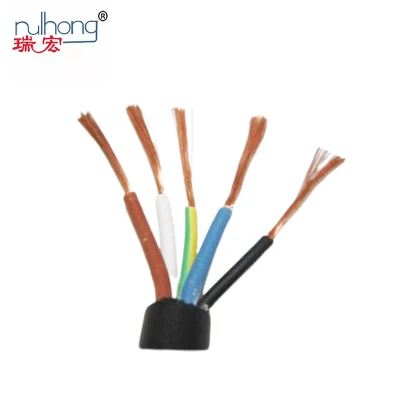

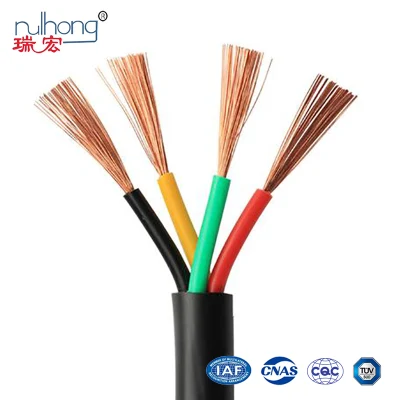

450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire

Our company specializes in producing PVC insulated flexible wires and PVC insulated wires for fixed wiring.
The full name of RVV wire is copper core PVC insulated PVC sheathed flexible wire, also known as light PVC sheathed flexible wire, commonly known as soft sheathed wire, which is a type of sheathed wire. It is mainly used in power lines, control lines, and signal transmission lines for electrical appliances, instruments, electronic equipment, and automation devices. Specifically, it can be used in anti-theft alarm systems, building intercom systems, and so on.

Meaning of letters for RVV wires and cables:
R - represents flexible cable; V - indicates that the insulating sheath is polyvinyl chloride (PVC).
Full name: PVC insulated PVC sheathed flexible cable;
RVV is the most commonly used cable for weak current systems

Product Parameters
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire



Cross Sectional Area
(mm²)
Cable diameter
(O.D. mm)
Insulation thickness
(mm)
Jacket
thickness
(mm)
max.cond.
resistance
(Ω/KM,20°C)
Rated Voltage
(V)
Weight per 100 meters
5X0.2 4.6±0.2 0.5 0.7 92.3 300/300V 33.32kg
5X0.3 5.4±0.2 0.5 0.7 69.2 300/300V 4.54kg
5X0.5 6.9±0.2 0.6 0.7 39 300/300V 8.03kg
5X0.75 7.6±0.2 0.6 0.8 26 300/300V 9.56kg
5X1.0 8.3±0.2 0.6 0.8 19.5 300/300V 11.94kg
5X1.5 9.6±0.2 0.7 0.8 13.3 300/500V 17.67kg
5X2.5 11.8±0.2 0.8 1 7.98 300/500V 27.64kg
5X4.0 14.3±0.2 0.8 1.2 4.95 300/500V 39.57kg
5X6.0 16.5±0.2 0.9 1.2 3.65 300/500V 53.75kg
6X0.2 4.9±0.2 0.5 0.7 92.3 300/300V 3.82kg
6X0.3 5.9±0.2 0.5 0.7 69.2 300/300V 5.4kg
6X0.5 7.4±0.2 0.6 0.7 39 300/300V 9.31kg
6X0.75 8.2±0.2 0.6 0.8 26 300/300V 11.35kg
6X1.0 9.1±0.2 0.6 0.8 19.5 300/300V 14.55kg
6X1.5 10.9±0.2 0.7 0.8 13.3 300/500V 20.81kg
6X2.5 12.5±0.2 0.8 1 7.98 300/500V 32.66kg
7X0.2 5.3±0.2 0.5 0.7 92.3 300/300V 4.34kg
7X0.3 6.1±0.2 0.5 0.7 69.2 300/300V 6.07kg
7X0.5 7.5±0.2 0.6 0.7 39 300/300V 10.04kg
7X0.75 8.5±0.2 0.6 0.8 26 300/300V 12.11kg
7X1.0 9.4±0.2 0.6 0.8 19.5 300/300V 16.33kg
7X1.5 11.2±0.2 0.7 0.8 13.3 300/500V 23.20kg
8X0.2 5.5±0.2 0.5 0.7 92.3 300/300V 4.88kg
8X0.3 6.6±0.2 0.5 0.7 69.2 300/300V 6.87kg
8X0.5 8±0.2 0.6 0.7 39 300/300V 11.20kg
8X0.75 9.2±0.2 0.6 0.8 26 300/300V 14.25kg
8X1.0 10.2±0.2 0.6 0.8 19.5 300/300V 18.46kg
8X1.5 12±0.2 0.7 0.8 13.3 300/500V 26.13kg

450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
Product recommendations

Our company specializes in the production of low-voltage power cables, PVC insulated power cables, cross-linked polyethylene insulated power cables, cross-linked polyethylene insulated Low smoke zero halogen power cables, irradiation cross-linked power cables, PVC insulated sheathed power cables, PVC insulated flexible wires, and control cables.

450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire

It also includes the recently popular computer cables, silicone rubber cables, solar photovoltaic cables, and a wide variety of customized cables with different sizes and metal sheath materials. We provide free samples and welcome you to contact us for inquiries.

450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire



Company Profile

450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire
Hebei Haihe Special Cable Co., Ltd., founded in 2008, is a limited liability company. Our company specializes in the production of power cables, irradiation cross-linked wires and cables, flame retardant wires and cables, fire resistant wires and cables, low smoke and halogen-free wires and cables, control cables, shielded cables, computer cables, frequency conversion cables, and pre branched cables. The registered capital of the enterprise is 66 million yuan, and the factory area covers an area of 30 mu. Equipped with dedicated production equipment, laboratories, workshops, and warehouses.
Product standards are in accordance with international GB/T12706.1-2020 and GB/T9330.2-2020 executive standards. The quality assurance system is complete, and the enterprise is equipped with full-time inspectors and complete product quality testing reports. Our company always adheres to the historical mission of "providing customers with better products and services at reasonable prices, providing employees with better job opportunities, creating broader development space for the enterprise, and creating more benefits for the society"; Establish the values of "integrity, integrity, fairness, pragmatism, and stability", and have a complete, fast, and excellent service sales network.

450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire

Our Advantages

Our main products include: power cables, computer cables, control cables, silicone rubber cables, elevator cables, flat cables, photovoltaic cables, etc. There are many types of products, and the factory covers an area of 30 acres, equipped with specialized production equipment, laboratories, factories, and warehouses. Having decades of production experience, possessing a large production and processing workshop, equipped with professional quality inspectors to ensure product quality meets international standards, and possessing multiple testing certificates such as TUV, CCC, ISO, etc.
450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire

After Sales Service

The product standards are implemented in accordance with national standards GB-T12706.1-2008 and GB/T9330.2-2008. The quality assurance system is complete, and the enterprise is equipped with full-time inspectors and a comprehensive product quality testing system. Our company always provides customers with comprehensive products and services at reasonable prices. We have a complete, fast, and excellent after-sales team that is available 24 hours a day to solve any after-sales problems for you. The products are widely used in industries such as electricity, steel, communication, petrochemicals, metallurgy, and construction, and are highly trusted by users, greatly enhancing the company's reputation.


450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire450/750V Copper Core PVC Sheathed Material PVC Insulated PVC Sheathed Flexible Electric Cable Wire

FAQ

1. Which markets are you mainly involved in?
Our products are mainly exported to Africa, the Middle East, Southeast Asia, South America, Central America, North America, Europe, Australia, etc.

2. How can I get the sample?
Please provide details of the samples you require. If we do not have an exact model, please consider whether a similar model is suitable for you. We provide free samples for inspection and charge shipping fees.

3. What products does Haihe Cable produce?
1) Low voltage (1kV and below) cross-linked polyethylene insulated (armored) power cable,YJV.YJV22.YJLV.YJLV22.YJV32.YJLV32;
2) Control shielded wires and cables.KVV-.KVVP-.KVVR-.RVV.-RVVP-.KVVRP-.KVV22-.KVVP22-.RVV22-.RVVP22;
3) Aniline type computer cable.IA-DJYVP.  IADJYVPVP.  IA-DJVVP.  IA-DJYVRPVRP;
4) High temperature resistant silicone rubber cable.YGC.YGCB.YGCRG.YGG.YGCP.YGCBP;
5)High temperature resistant fluoroplastic cable.-KFF--KFFR--FF46-FFRP--KFFP;
6) Nitrile flat belt steel wire cable.YFFB----YVFB---YFFB2G---YFFBPG;
7) Frequency conversion cable.BPYJVP--BPYJYP2--BPYJVRP--BPYJVP2-22;

4. What is product packaging?
The packaging is usually wooden, iron wooden or according to customer requirements.

5. What is your delivery time?
Depending on the type and quantity of project, the product to be manufactured can take from ten days to several months.
